Transmission Control ECU Power Source

TRANSMISSION CONTROL ECU POWER SOURCE

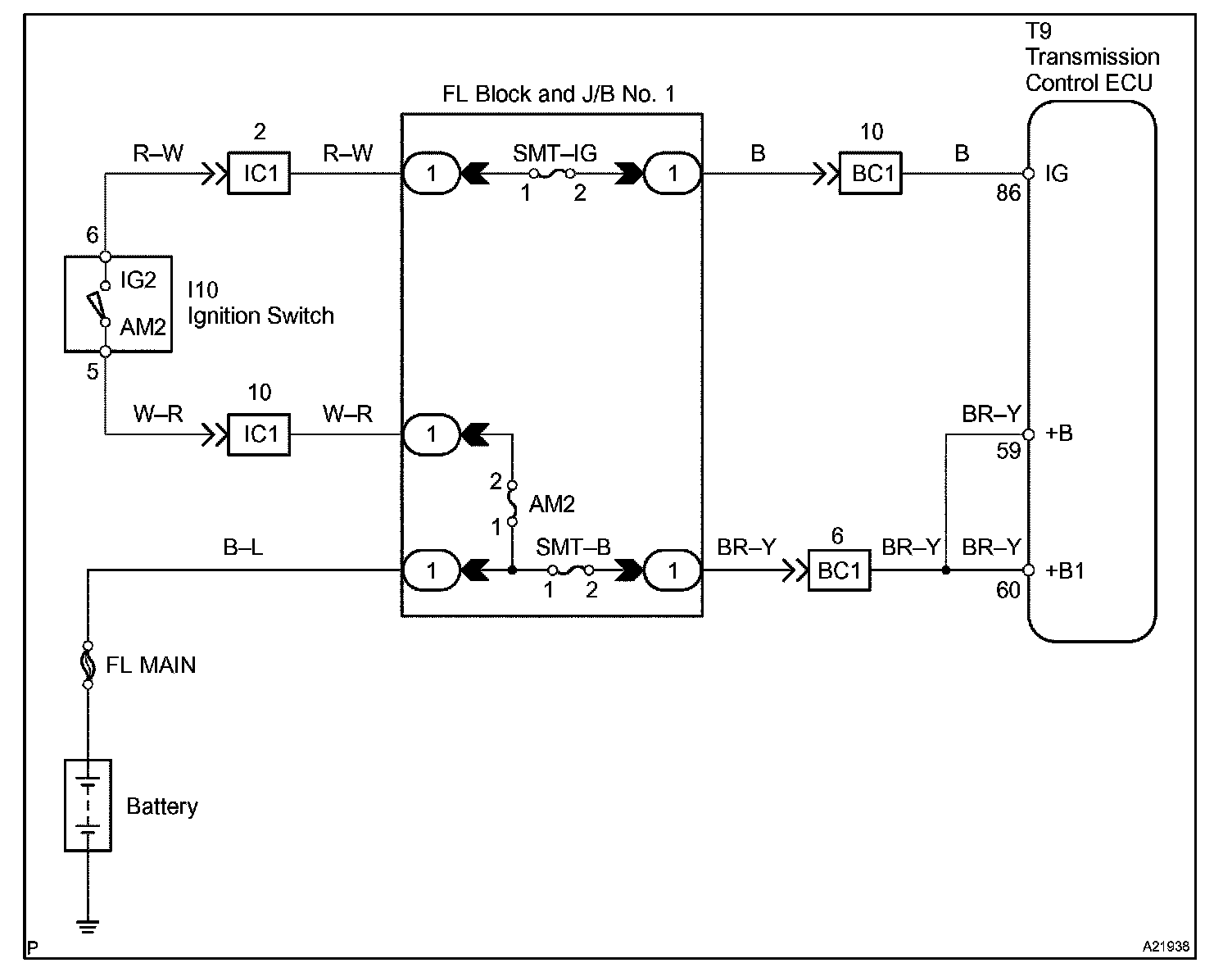

Wiring Diagram:

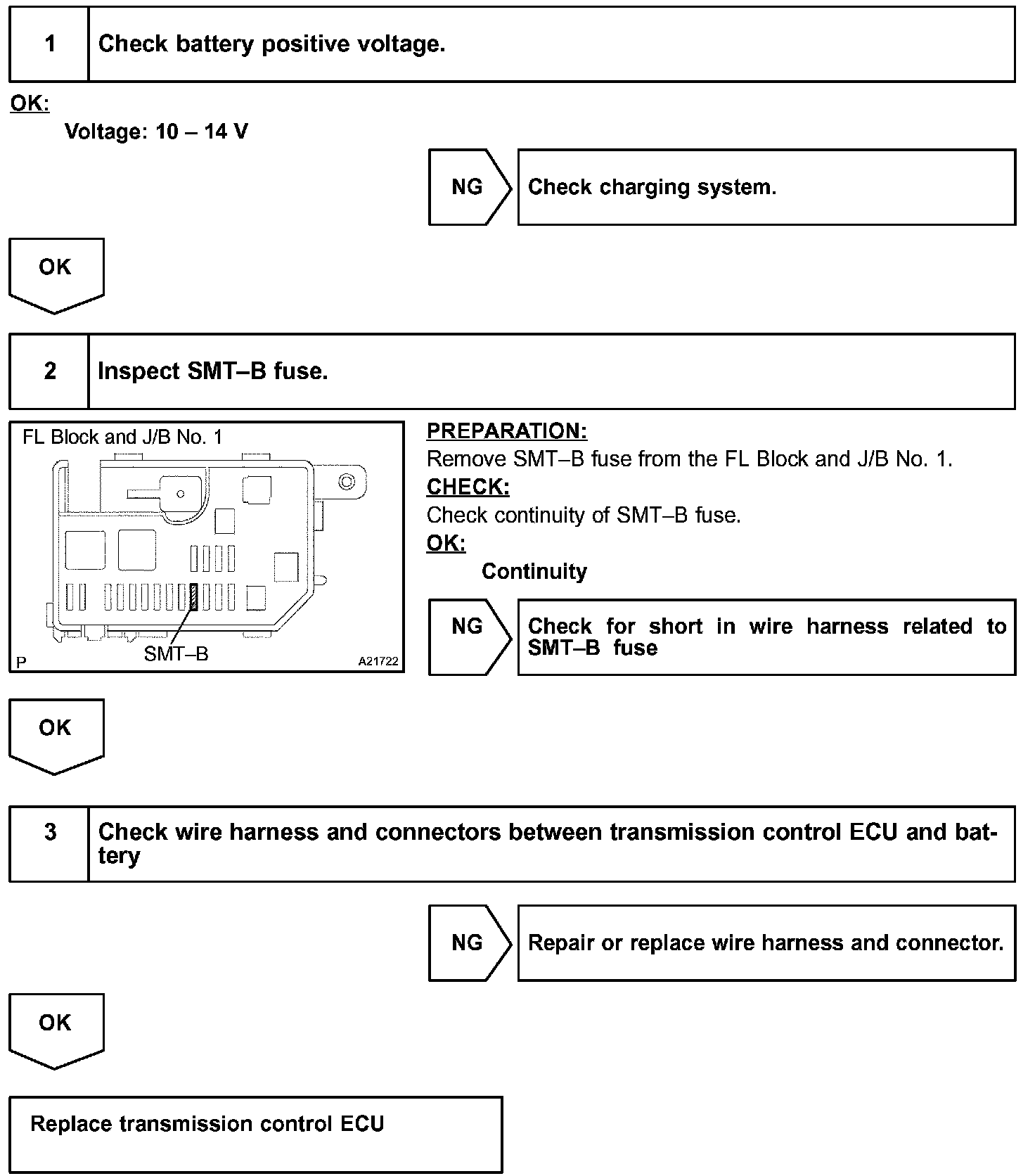

Step 1 - 3:

INSPECTION PROCEDURE
