Collision / Non-Collision Inspections

INSPECTION

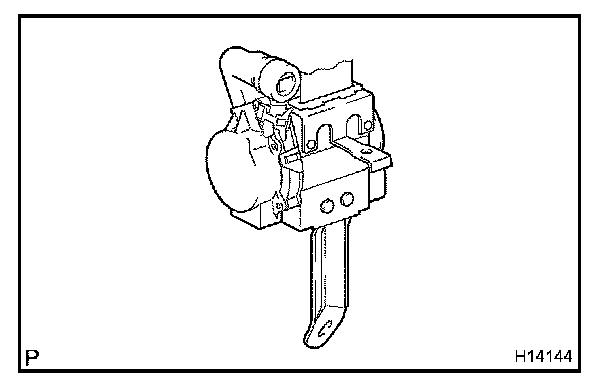

1. PRETENSIONER IS NOT ACTIVATED
a. Perform a diagnostic system check.




b. Perform visual checks including the following items with the front seat outer belt removed from the vehicle.

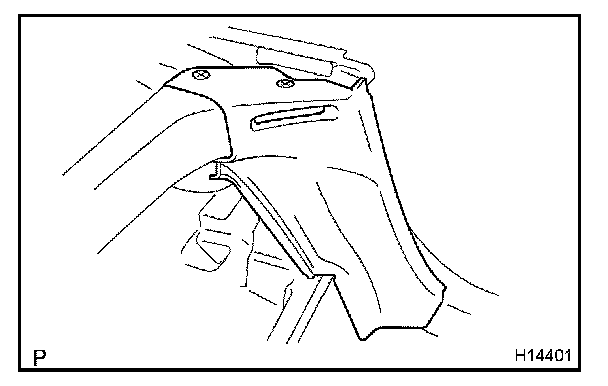

- Check for cuts and cracks, on the quarter trim panel.

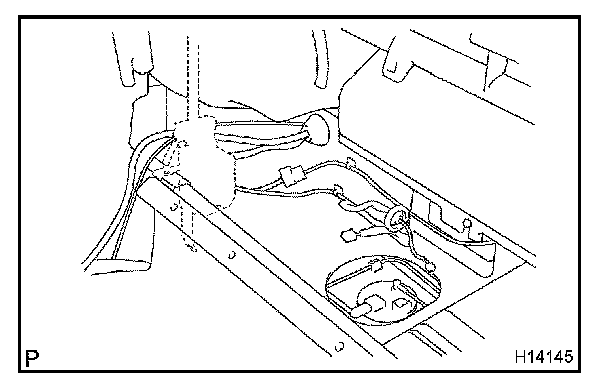

- Check for cuts and cracks in the wire harness, and for chipping in the connectors.
- Check for deformation of the center floor No.3 crossmember.






NOTE: For removal and installation of the front seat outer belt, see seat belt pretensioner.

2. PRETENSIONER IS ACTIVATED
a. Perform a diagnostic system check.




b. Perform visual checks including the following items with the front seat outer belt removed from the vehicle.
- Check for deformation of the center floor No.3 crossmember.
- Check for damage on the connector and wire harness.
