Collision / Non-Collision Inspections

1. VEHICLES NOT INVOLVED IN COLLISION
Check a diagnostic system. *




2. VEHICLES INVOLVED IN COLLISION
a. Check a diagnostic system. *

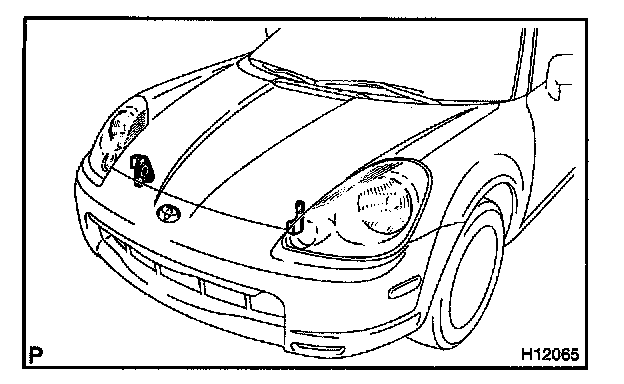

b. If the front fender of the car or its periphery is damaged, do a visual check for damage to the front airbag sensor, which includes the following items even if the airbag was not deployed:

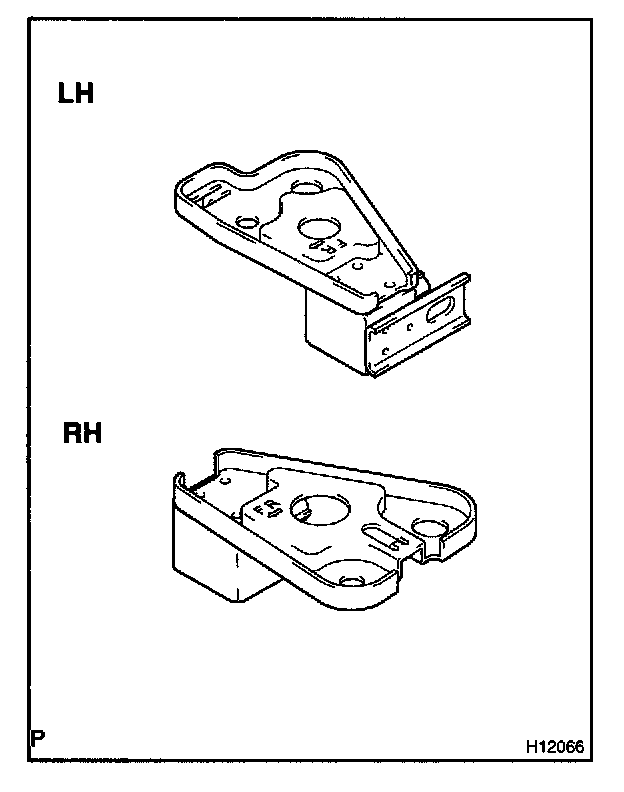

- Check the bracket deformation.
- Check the paint peeling off the bracket.
- Check the cracks, dents or chips in the case.
- Check the cracks, dents, chipping and scratches in the connector.
- Check the peeling off of the label or damage to the serial number.

* Refer to Air Bag Systems; Testing and Inspection.
