Diesel Data: Automotive Repair
Home >> Toyota >> 2004 >> MR2 Spyder L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> System Specifications

System Specifications

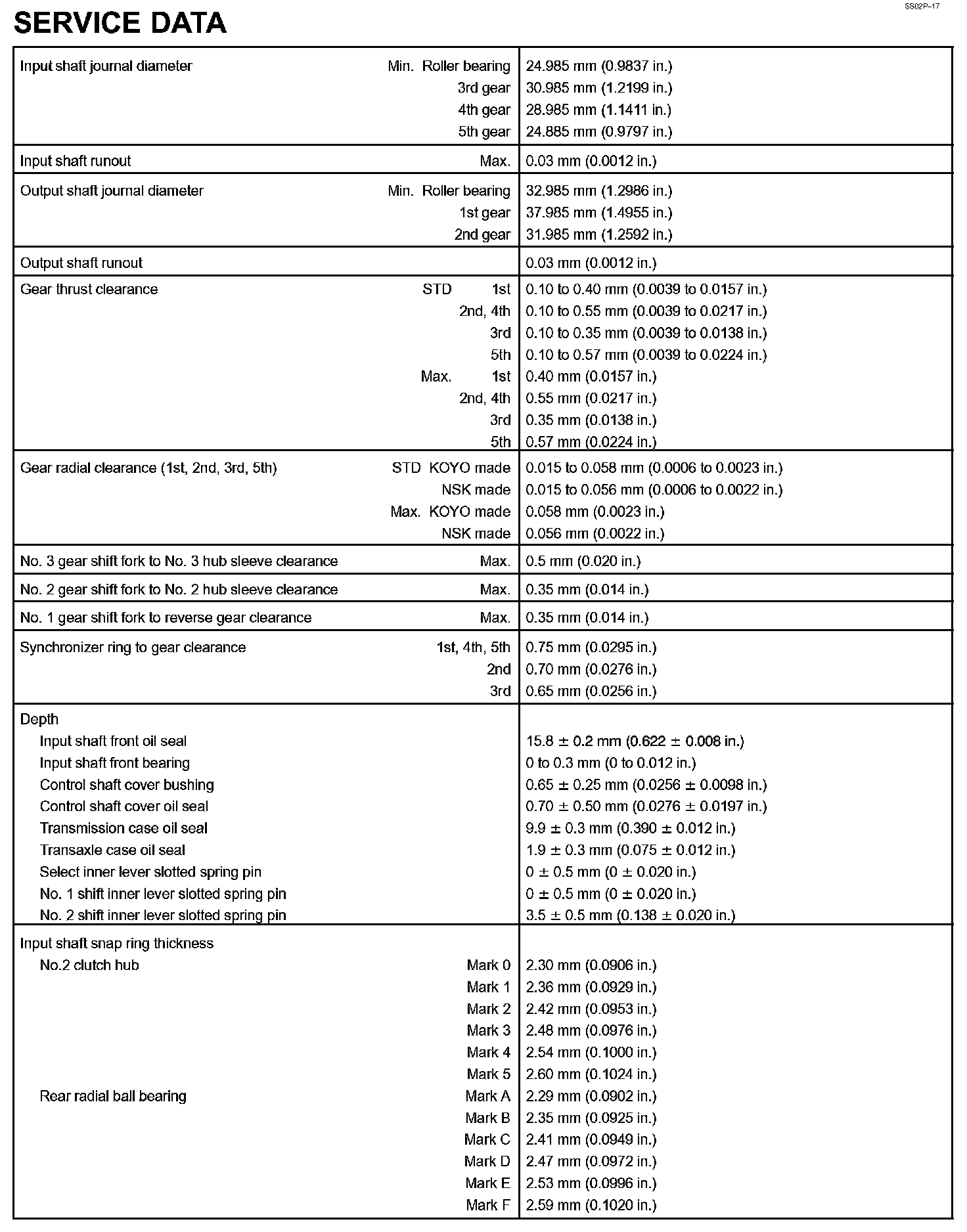

Manual Transaxle (C56) - Service Data Part 1:

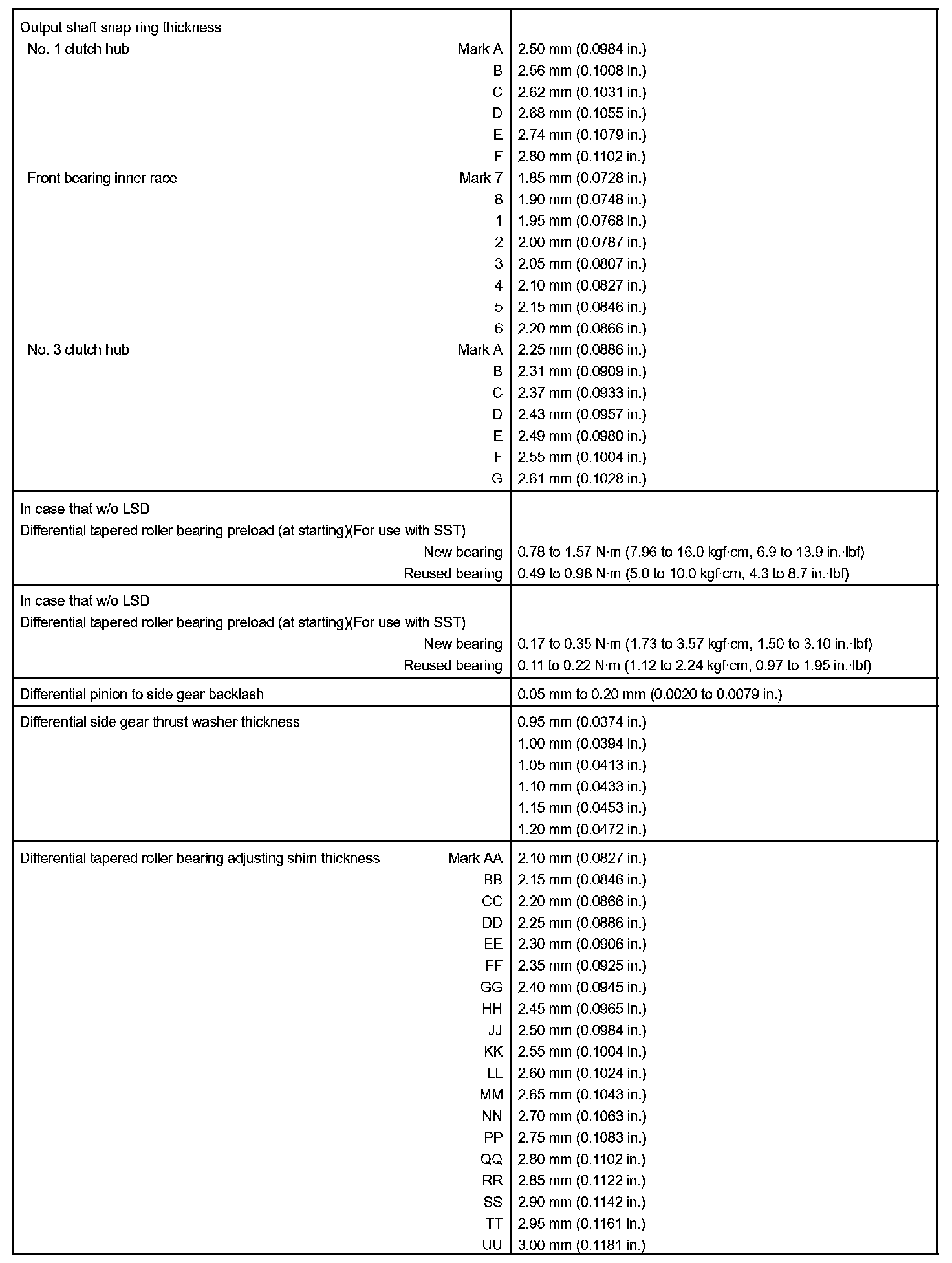

Manual Transaxle (C56) - Service Data Part 2:

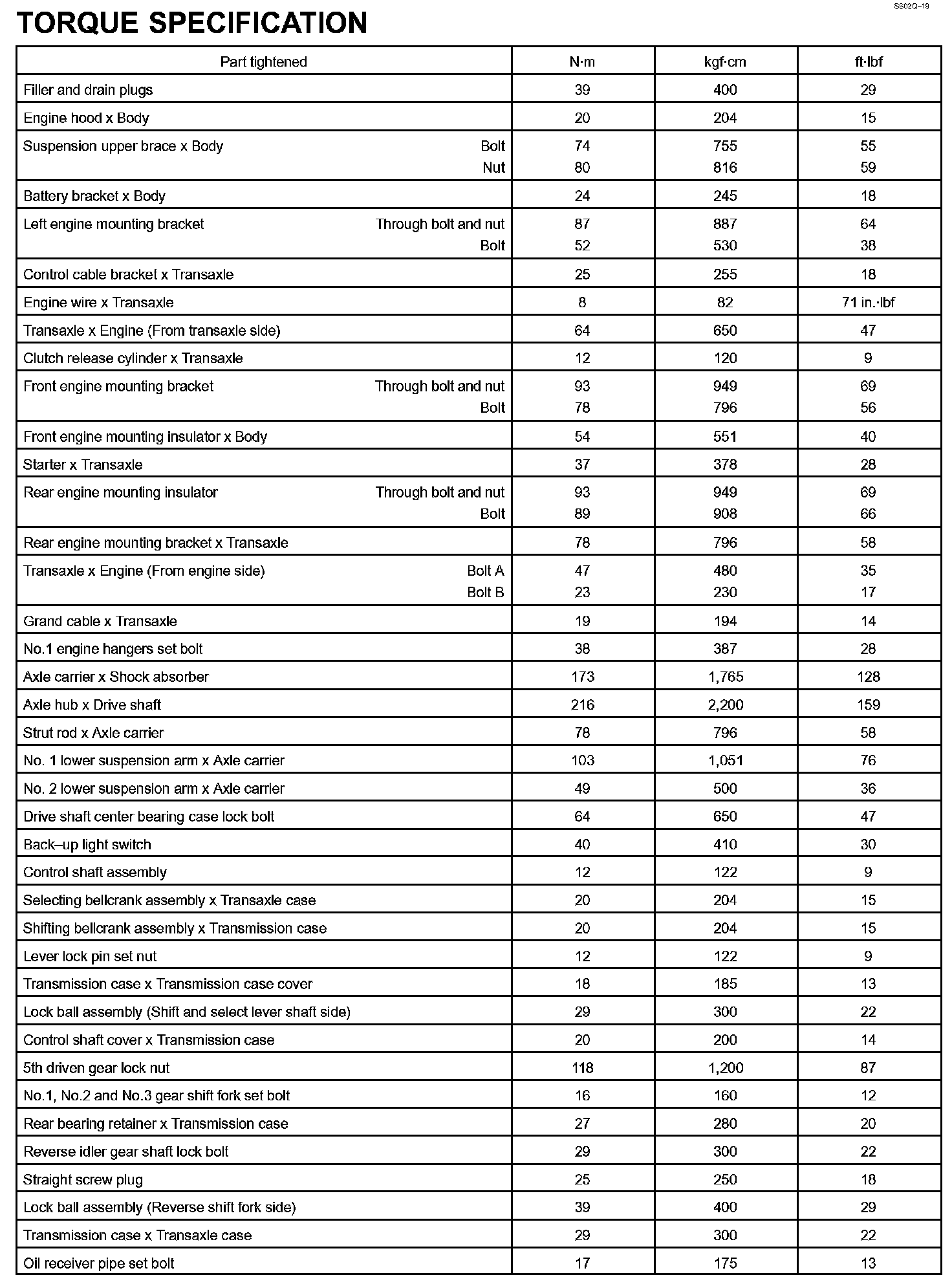

Manual Transaxle (C56) - Torque Specification Part 1:

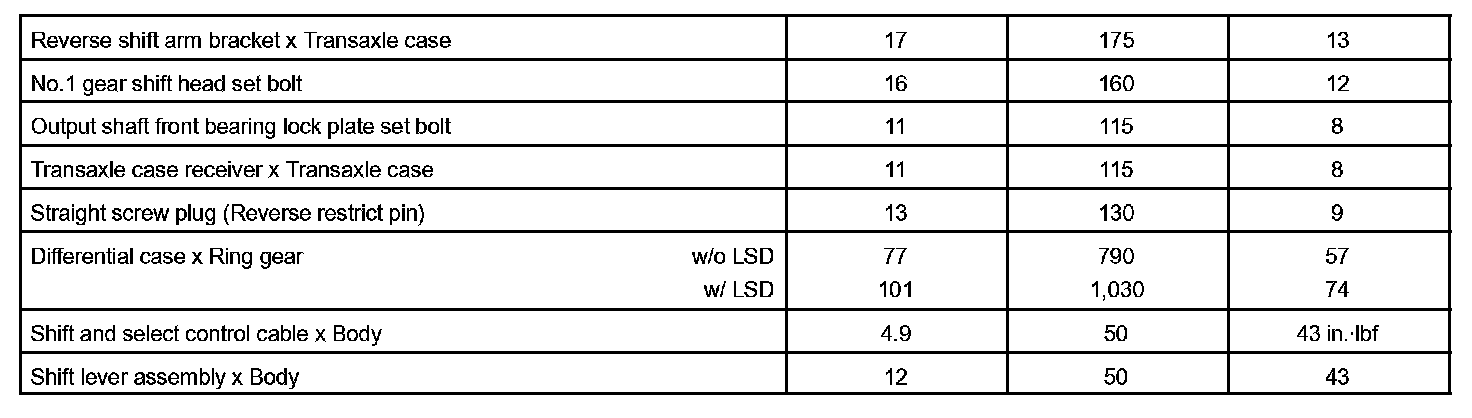

Manual Transaxle (C56) - Torque Specification Part 2:
