Tc Terminal Circuit

Tc TERMINAL CIRCUIT

CIRCUIT DESCRIPTION

Connecting terminals Tc (13) and CG (4) of the DLC3 causes the vane pump assembly with motor to display the DTC by flashing the P/S warning light.

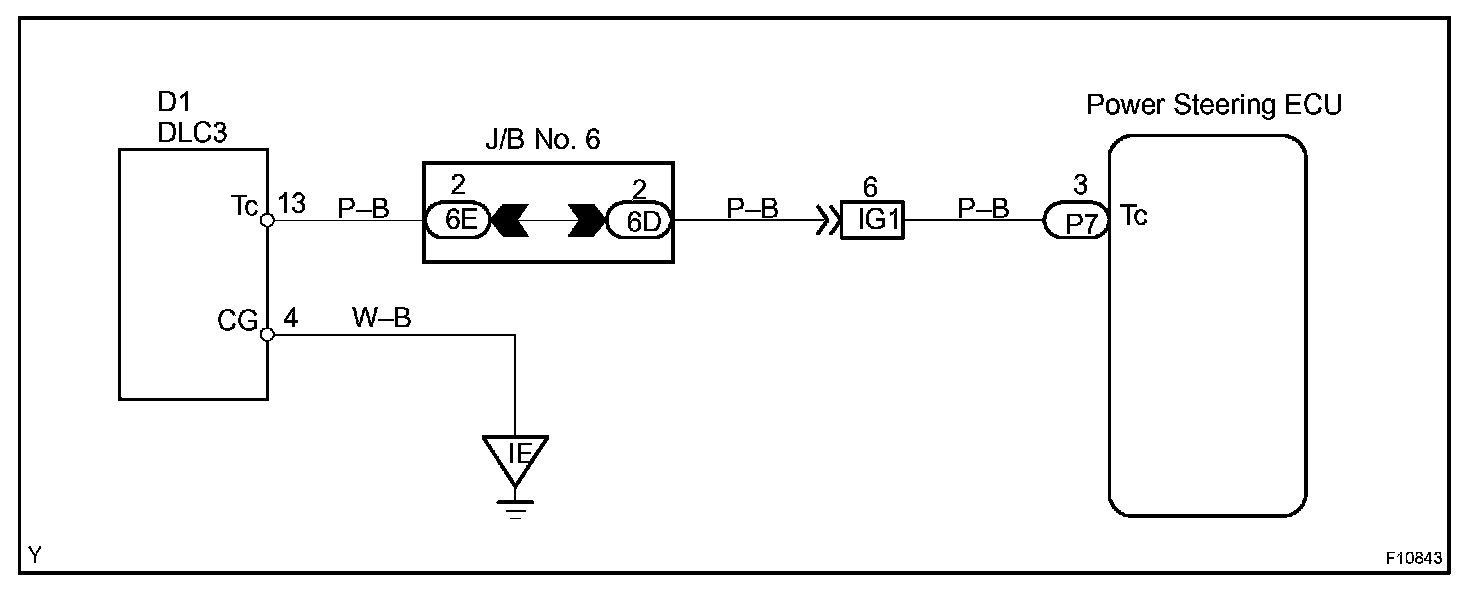

Wiring Diagram:

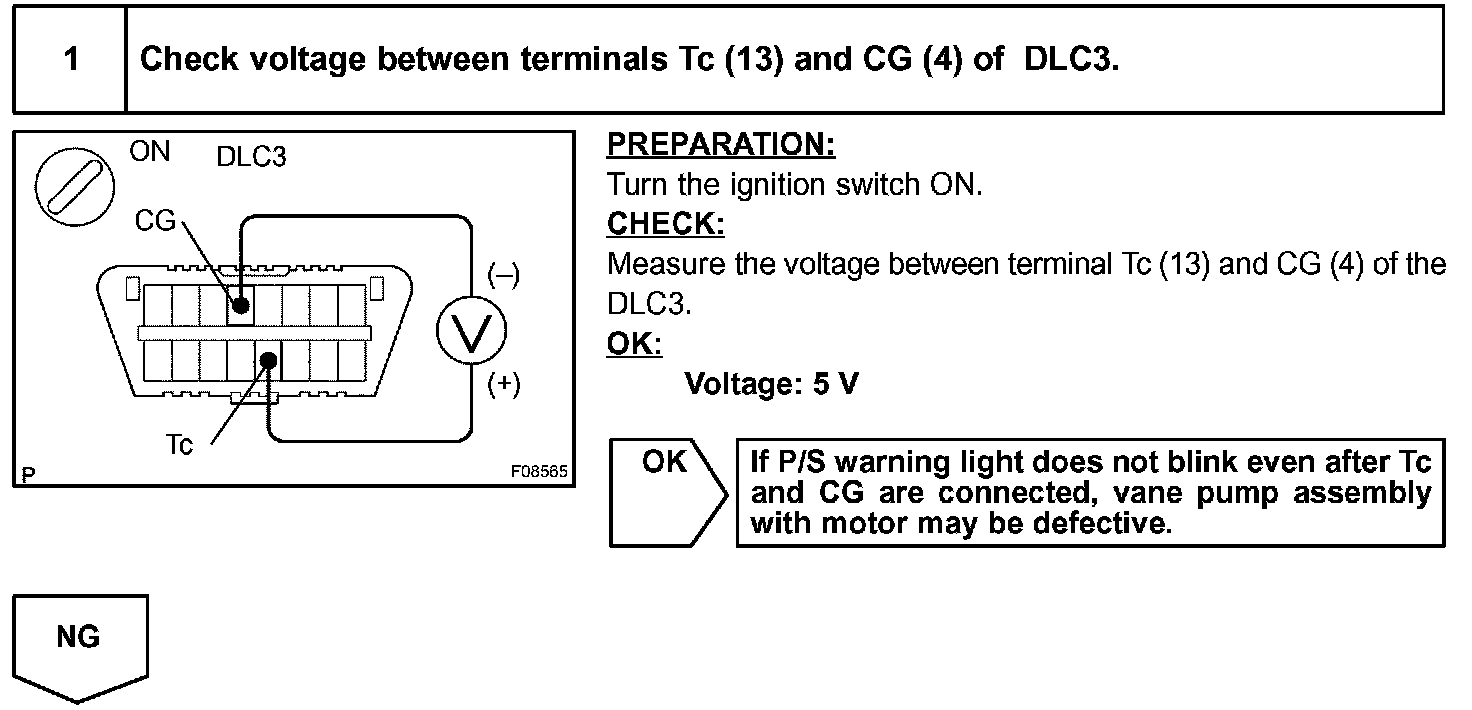

Step 1:

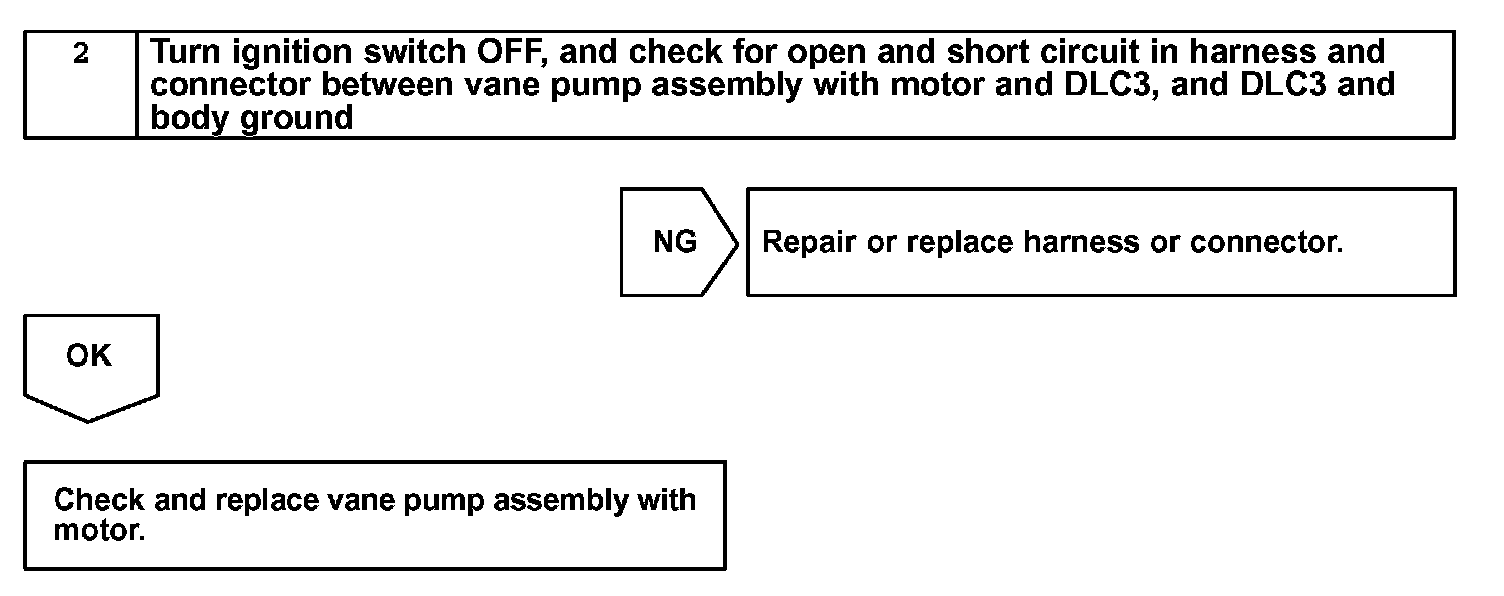

Step 2:

INSPECTION PROCEDURE
