Without Scan Tool

Clear the DTC

In case of not using hand-held tester:

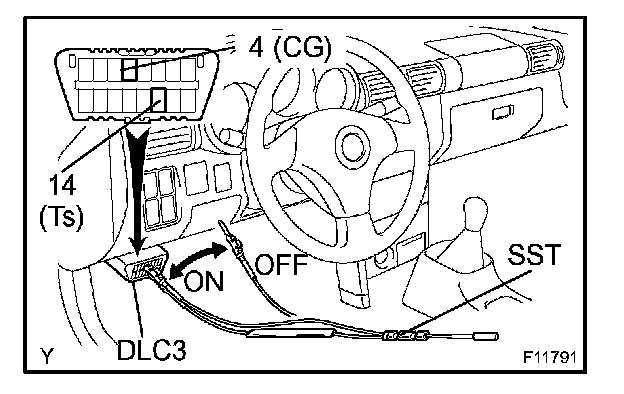

1. Using SST, connect terminals Ts and CG of the DLC3.
SST 09843-18040

2. Turn the ignition switch ON.
3. By making CG terminal ON and OFF 4 times within 8 seconds, delete DTC of the ECU.
If making CG terminal ON and OFF within 0.1 second, DTC of will not be deleted.

4. Check that the warning light shows the normal code.
5. Remove the SST from the terminals of the DLC3.
SST 09843-18040
