Disassembly and Reassembly

DISASSEMBLY
REMOVE COIL SPRING

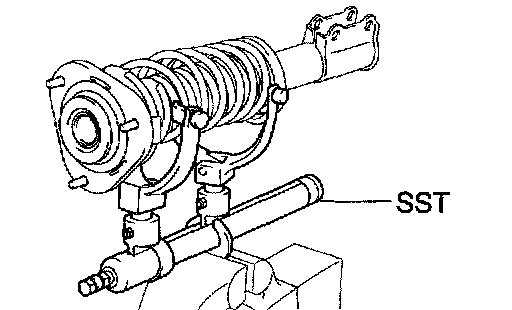

a. Using SST, compress the coil spring.
SST 09727-30021 (09727-00010, 09727-00021, 09727-00031)

NOTICE: Do not use an impact wrench. It will damage the SST.

b. Remove the cap.

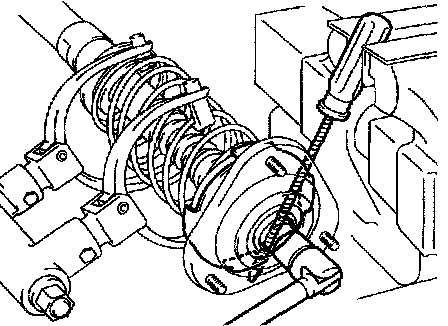

c. Using a screwdriver to hold the spring seat, remove the nut.

HINT: Tape the screwdriver before use.

NOTICE: Be careful not to damage the spring seat.

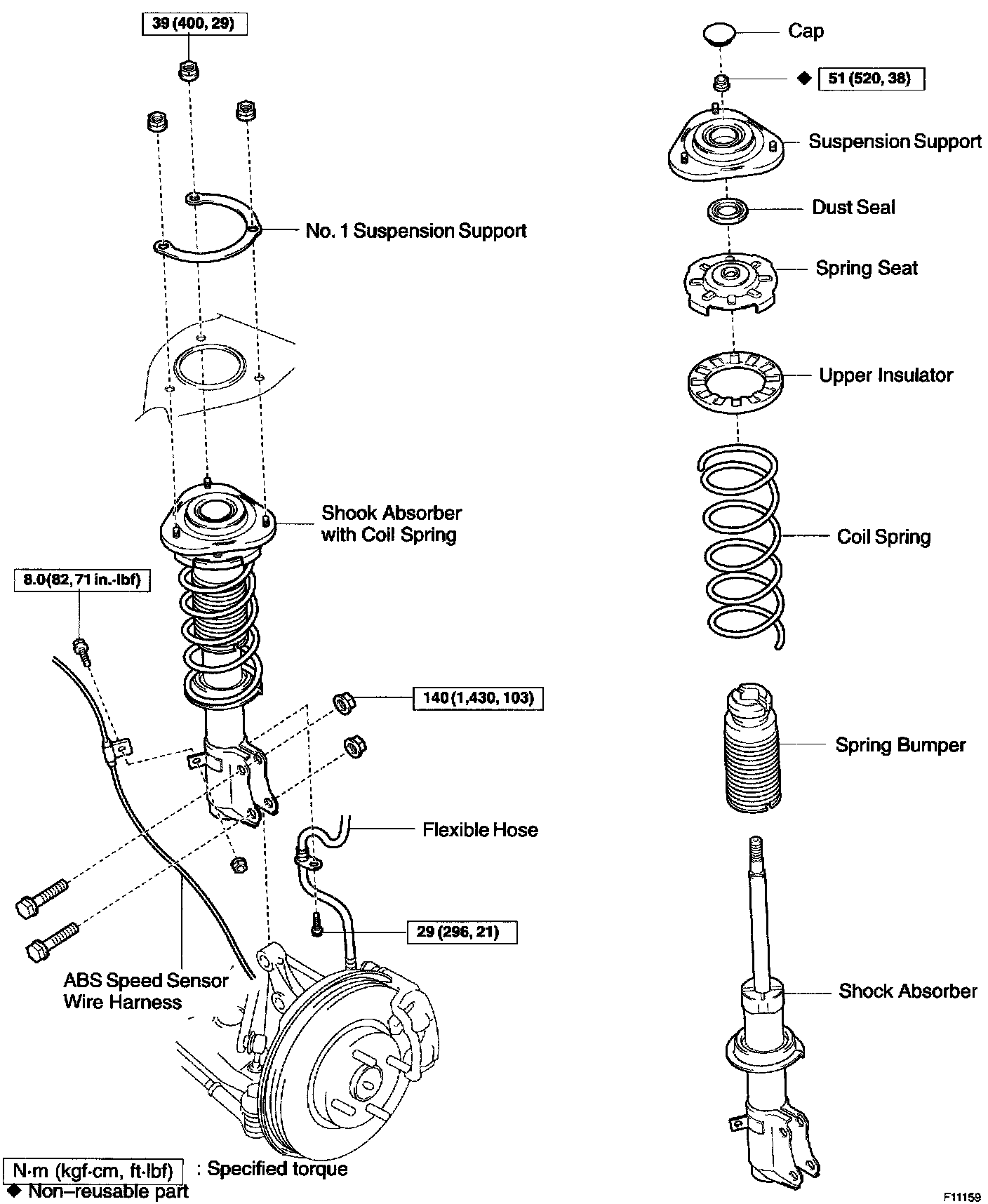

d. Remove the suspension support, dust seal, spring seat, upper insulator, coil spring and spring bumper.

INSPECTION
INSPECT SHOCK ABSORBER

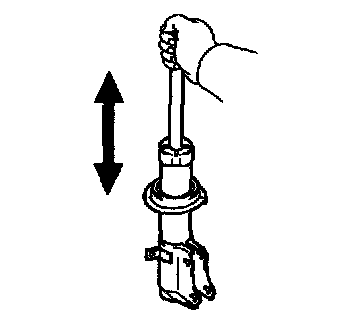

Compress and extend the shock absorber rod and check that there is no abnormal resistance or unusual sound during operation.
If there is any abnormality, replace the shock absorber with a new one.

NOTICE: When disposing of the shock absorber, see DISPOSAL.

DISPOSAL
1. FULLY EXTEND SHOCK ABSORBER ROD





2. DRILL HOLE TO DISCHARGE GAS FROM CYLINDER

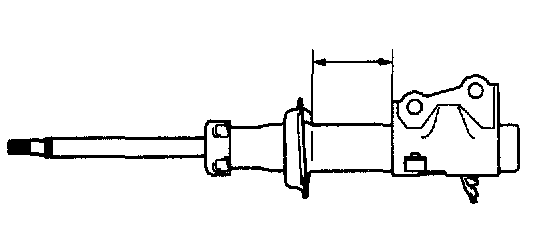

Using a drill, make a hole in the cylinder as shown in the illustration to discharge the gas inside.

CAUTION:
^ When drilling, chips may fly out, work carefully.
^ The gas is colorless, odorless and non-poisonous.

REASSEMBLY
1. INSTALL SPRING BUMPER TO PISTON ROD
2. INSTALL COIL SPRING

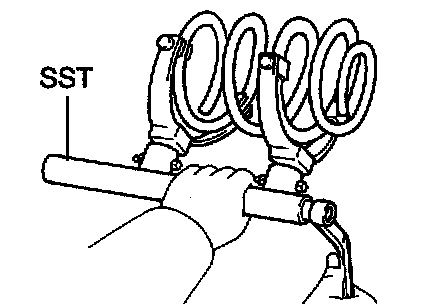

a. Using SST, compress the coil spring.
SST 09727-30021 (09727-00010, 09727-00021, 09727-00031)

NOTICE: Do not use an impact wrench. It will damage the SST.

b. Install the coil spring to the shock absorber.

HINT: Fit the lower end of the coil spring into the gap of the spring lower seat.

c. Install the upper insulator.
d. Install the spring seat to the shock absorber.

HINT: Align the piston rod notch and the spring seat hole.

e. Install the dust seal and suspension support.

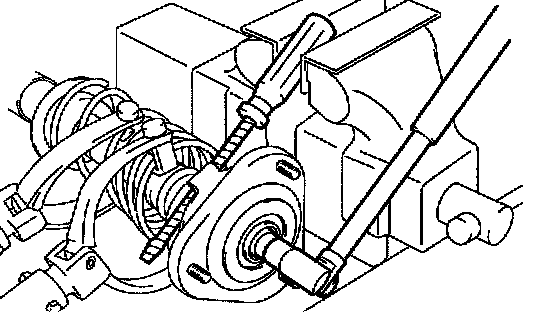

f. Using a screwdriver to hold the suspension support, install a new nut.
Torque: 51 Nm (520 kgf-cm, 38 ft. lbs.)

HINT: Tape the screwdriver before use.

NOTICE: Be careful not to damage the spring seat.

g. Remove the SST.
SST 09727-30021 (09727-00010, 09727-00021, 09727-00031)

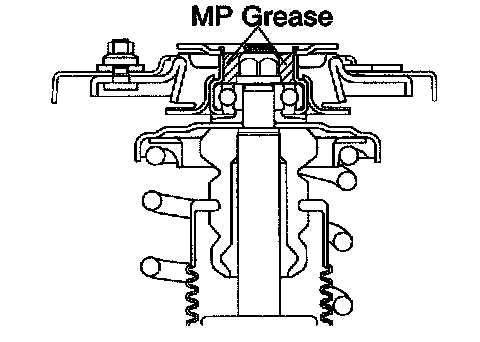

h. Apply MP grease into the suspension support.
i. Install the cap.
