Problem Symptoms Table

PROBLEM SYMPTOMS TABLE

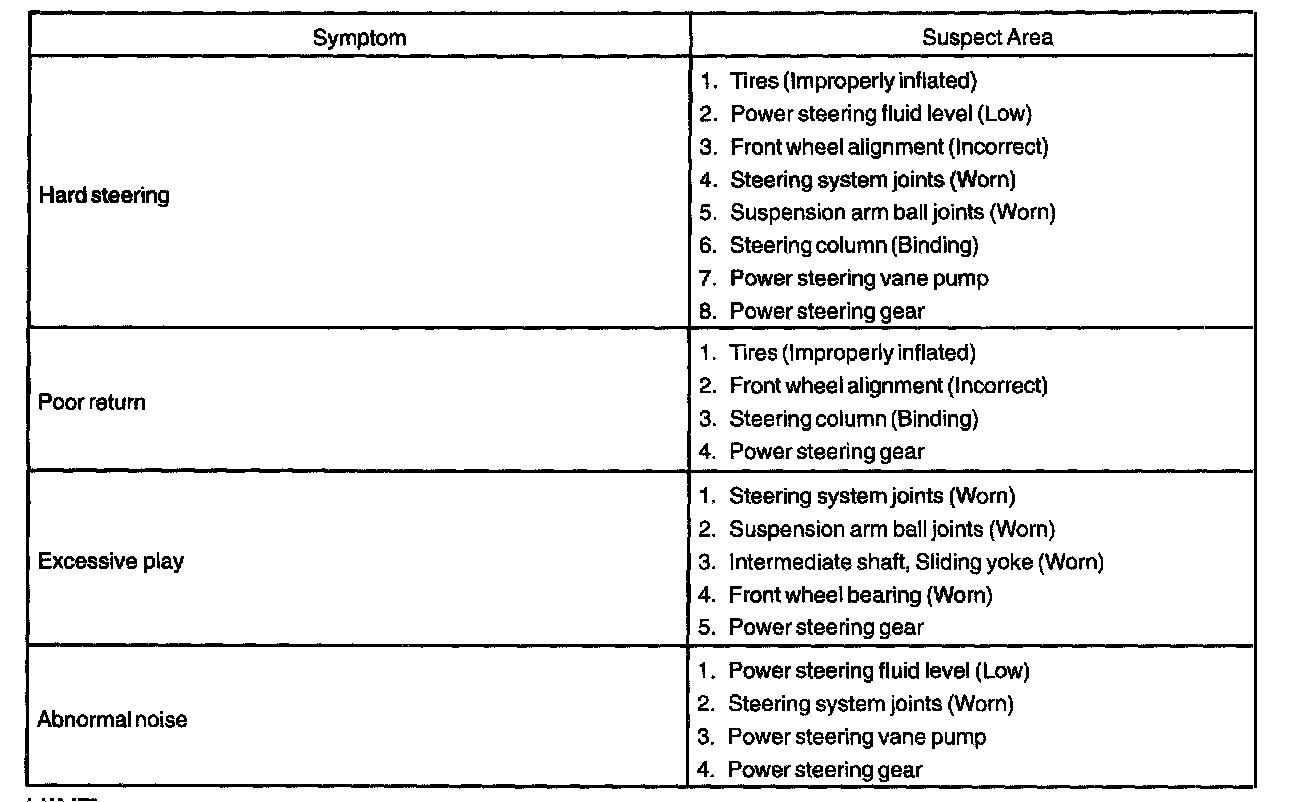

Steering:

Suspension And Axle:

Use the table to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in the order shown. If necessary, repair or replace these parts.

HINT: When the problem occurs on the Electro-Hydraulic Power Steering system, refer to Steering; Testing and Inspection. Testing and Inspection
