Vehicle Damage Warnings
Sequential Manual Transmission UnitPRECAUTION
1. MAINTENANCE PRECAUTIONS
a. Confirm that the gear is in the N position before making the maintenance of the SMT system.
If the gear can not be shifted into the N position (due to abnormalities of the system etc.):

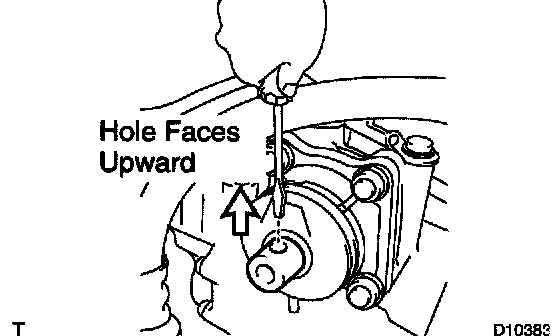

^ Check that there is a hole of 7 mm (0.27 inch) in the vehicles rear side of the shift and select lever shaft of the transmission.
^ Then move the lever into the N position by inserting a screwdriver or something into the hole.
^ When the hole faces upward then as shown in the illustration, the gear is in the N position.
b. Be sure to follow the items below, before removing the SMT system.
^ Perform a cleaning of the connecting part of the SMT system hose and HPU, as there may be some dirt or foreign objects sticking to the part.
^ Reduce the pressure inside the accumulator to 0 bar. (See Transmission Control Systems; Testing and Inspection.)

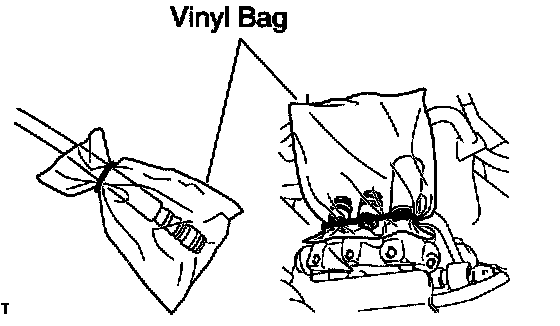

c. When removing the parts touching the sequential M/T fluid, cover the removed place with a vinyl bag in order not to let foreign objects in.
d. Do not reuse the O-ring, exchange all the removed parts with new ones.
e. Please perform the initial learning of the SMT system when exchange the following parts:
^ HPU assembly
^ GSA assembly
^ Clutch disc and cover
^ Transmission assembly
^ Shift stroke sensor
^ Select stroke sensor
^ Clutch stroke sensor
2. PRECAUTIONS FOR SEQUENTIAL M/T FLUID
a. Do not use other fluid than one which is sequential M/T fluid.
Fluid type: Sequential M/T fluid
Parts No.: 08886-02206
b. Do not reuse the fluid which is once spilled or once let out.
