Sequential Manual Transmission Pinouts
Sequential Manual Transmission Pinouts

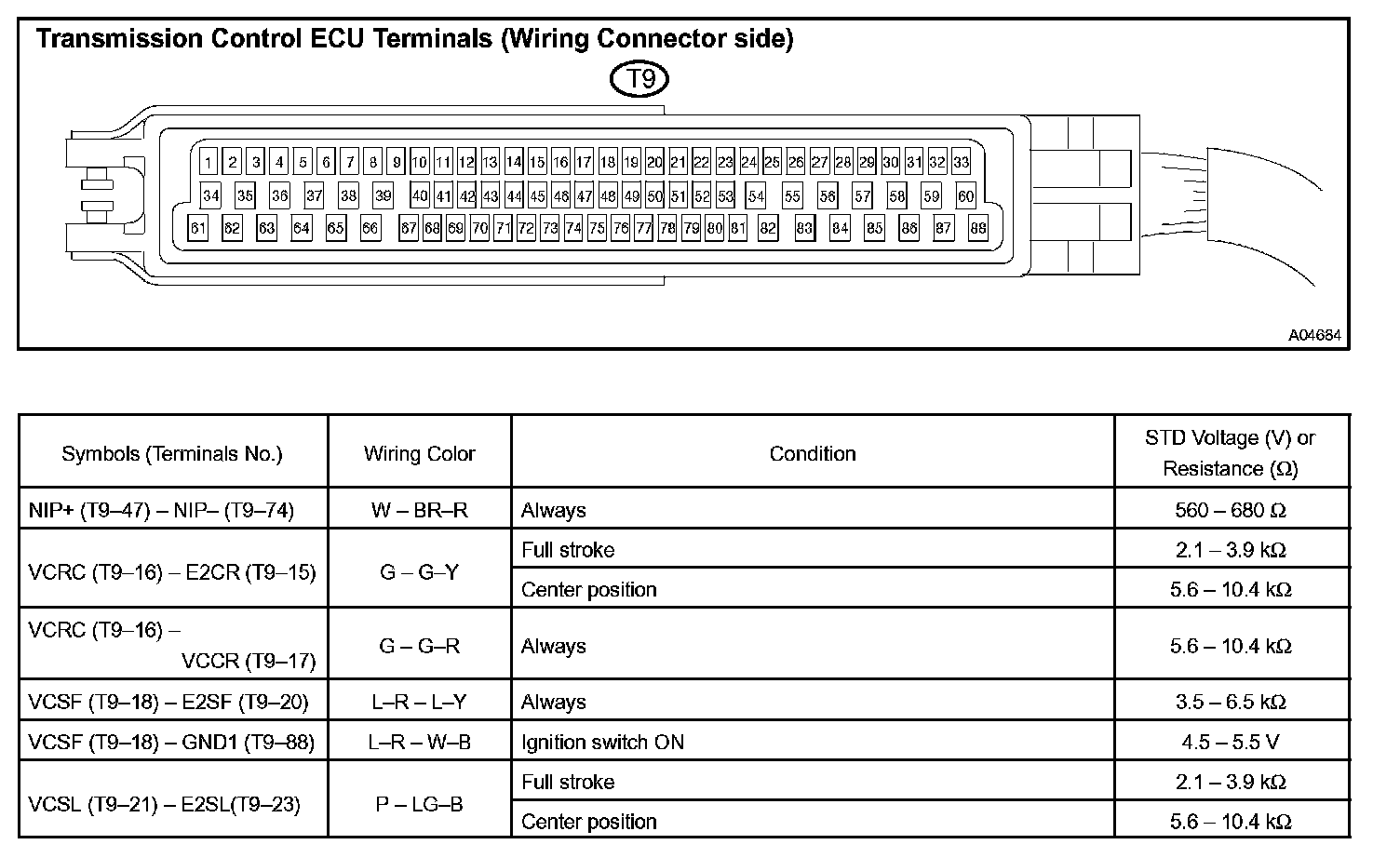

Terminals Of ECU/ Pinouts:
