Input Shaft
DISASSEMBLY

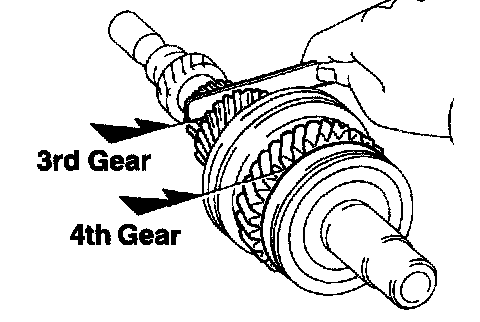

1. INSPECT 3RD AND 4TH GEARS THRUST CLEARANCE
Using a feeler gauge, measure the thrust clearance.
Standard clearance

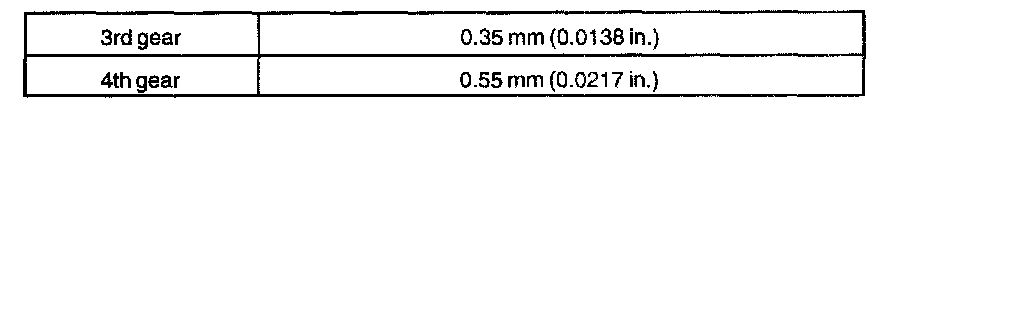

Maximum clearance

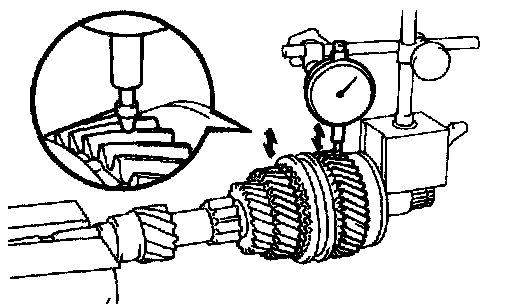

2. INSPECT 3RD AND 4TH GEARS RADIAL CLEARANCE
Using a dial indicator, measure the radial clearance between the gear and shaft.
Standard clearance

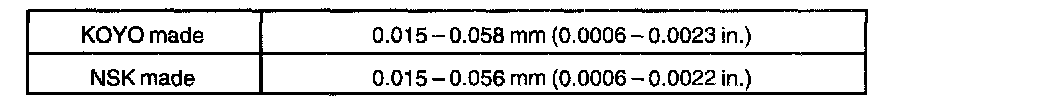

Maximum clearance
If the clearance exceeds the maximum, replace the gear, needle roller bearing or shaft.

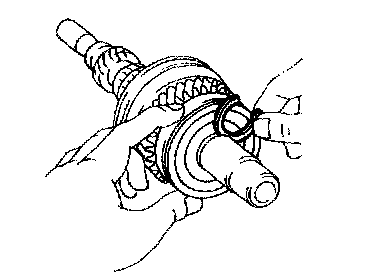

3. REMOVE SNAP RING
Using 2 screwdrivers and a hammer, tap out the snap ring.
HINT: Take care not to damage the journal surface of the input shaft.
4. REMOVE REAR RADIAL BALL BEARING, 4TH GEAR, NEEDLE ROLLER BEARING, SPACER AND NO.2 SYNCHRONIZER RING (FOR 4TH GEAR)

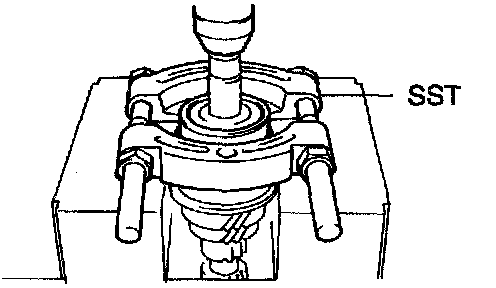

a. Using SST and a press, press out the rear radial ball bearing and 4th gear.
SST 09950-00020
HINT: Support the input shaft assembly by hand so that it will not be dropped off.
b. Remove the needle roller bearing, spacer and No. 2 synchronizer ring (for the 4th gear).
5. REMOVE SNAP RING
Using 2 screwdrivers and a hammer, tap out the snap ring.
HINT: Take care not to damage the journal surface of the input shaft.
6. REMOVE NO. 2 HUB SLEEVE, NO. 2 CLUTCH HUB ASSEMBLY, NO. 2 SYNCHRONIZER RING (FOR 3RD GEAR), 3RD GEAR AND NEEDLE ROLLER BEARING
a. Using SST and a press, press out the No. 2 hub sleeve, No. 2 clutch hub assembly, No. 2 synchronizer ring (for the 3rd gear) and 3rd gear.
SST 09950-00020
HINT: Support the input shaft by hand so that it will not be dropped off.
b. Remove the needle roller bearing.

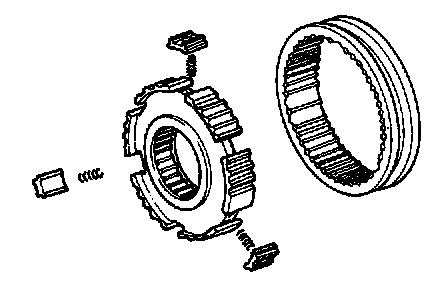

7. DISASSEMBLE NO. 2 HUB SLEEVE AND NO. 2 CLUTCH HUB
a. Remove the No. 2 hub sleeve from the No. 2 clutch hub.
b. Remove the 3 No. 2 shifting keys and 3 No. 2 shifting key springs from the No. 2 clutch hub.
INSPECTION
1. INSPECT SYNCHRONIZER RING
a. Check for wear or damage.

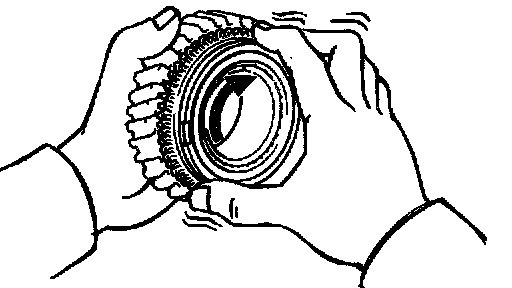

b. Check the braking effect of the synchronizer ring.
Turn the synchronizer ring in one direction while pushing it to the gear cone. Check that the ring locks.
If the braking effect is insufficient, apply a small amount of the fine lapping compound between the synchronizer ring and gear cone. Lightly rub the synchronizer ring and gear cone together.
NOTICE: Ensure the fine lapping compound is completely washed off after rubbing.
c. Check again the braking effect of the synchronizer ring.

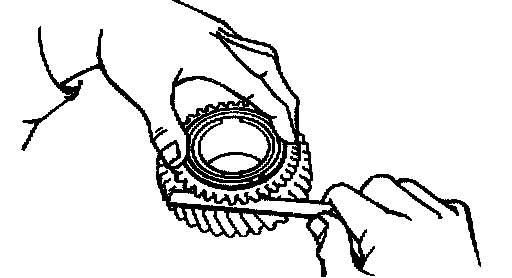

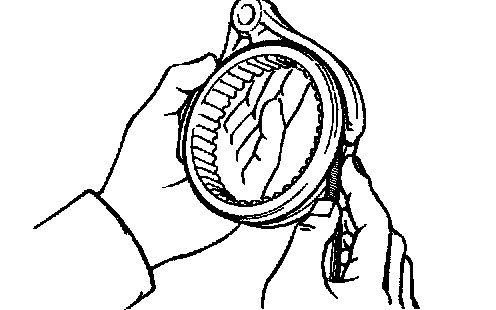

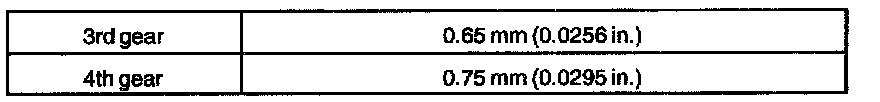

d. Using a feeler gauge, measure the clearance between the synchronizer ring back and gear spline end.
Minimum clearance
If the clearance is less than the minimum, replace the synchronizer ring, and apply a small amount of the fine lapping compound on gear cone.
NOTICE: Ensure the fine lapping compound is completely washed off after rubbing.
2. INSPECT NO. 2 GEAR SHIFT FORK AND NO. 2 HUB SLEEVE CLEARANCE
Using a feeler gauge, measure the clearance between the hub sleeve and gear shift fork.
Maximum clearance: 0.35 mm (0.014 inch)
If the clearance exceeds the maximum, replace the gear shift fork or hub sleeve.
3. INSPECT INPUT SHAFT
a. Check the input shaft for wear or damage.

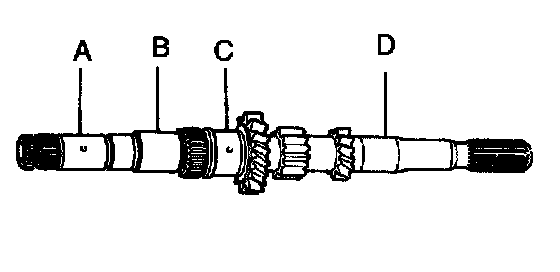

b. Using a micrometer, measure the outer diameter of the input shaft journal surface.

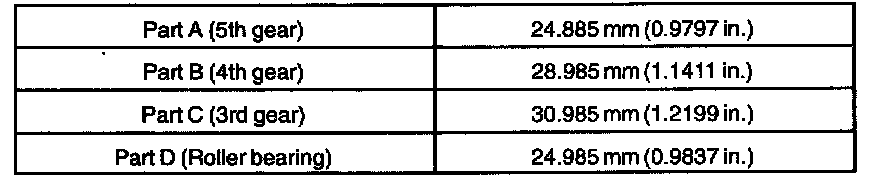

Minimum outer diameter
If the outer diameter is less than the minimum, replace the input shaft.

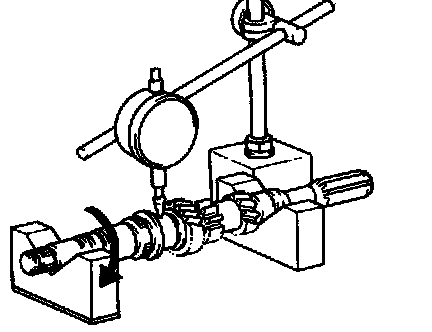

c. Using a dial indicator, check the shaft runout.
Maximum runout: 0.03 mm (0.0012 inch)
If the runout exceeds the maximum, replace the input shaft.
REASSEMBLY
HINT: Coat all of the sliding and rotating surfaces with gear oil before reassembly.

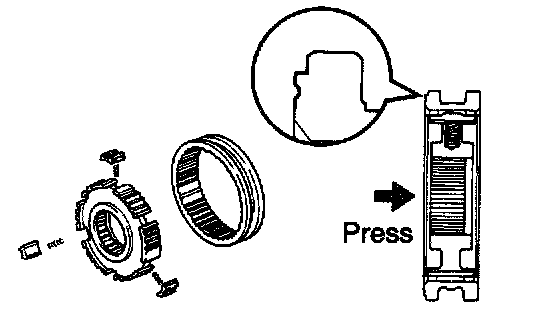

1. ASSEMBLE NO. 2 HUB SLEEVE AND NO. 2 CLUTCH HUB
a. Install the 3 No. 2 shifting key springs and 3 No. 2 shifting keys to the No. 2 clutch hub.
b. Install the No. 2 hub sleeve to the No. 2 clutch hub.
NOTICE: Assemble the No. 2 hub sleeve and No. 2 clutch hub in the direction shown in the illustration.
2. INSTALL NEEDLE ROLLER BEARING, 3RD GEAR, NO. 2 SYNCHRONIZER RING (FOR 3RD GEAR), NO. 2 HUB SLEEVE AND NO. 2 CLUTCH HUB ASSEMBLY
a. Apply gear oil to the needle roller bearing and install it.

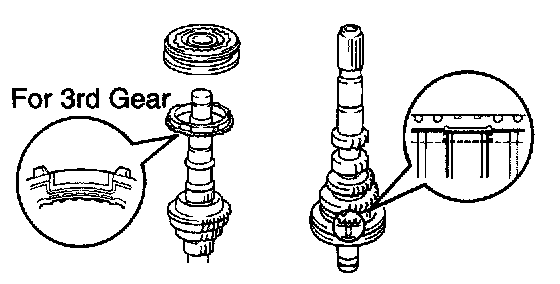

b. Install the 3rd gear and No. 2 synchronizer ring (for the 3rd gear).
NOTICE: Distinguish the No. 2 synchronizer ring (for the 3rd gear) by the teeth on the synchronizer ring.
c. Install the No. 2 hub sleeve and No. 2 clutch hub assembly so that the No. 2 synchronizer ring slots and No. 2 shifting keys are aligned.
NOTICE: Be sure to install the No. 2 hub sleeve and No. 2 clutch hub assembly in the correct direction, as shown in the illustration.

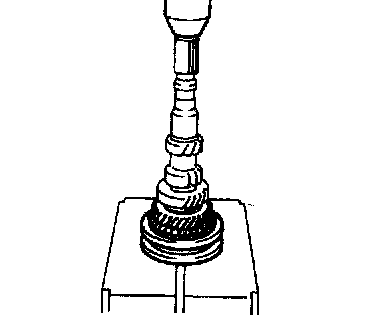

d. Using a press, press in the No. 2 hub sleeve and No. 2 clutch hub assembly.

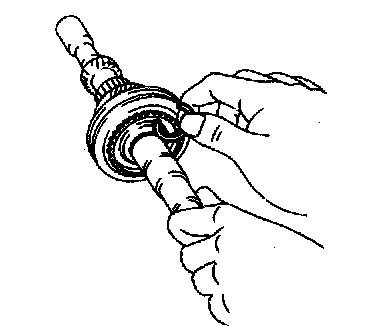

3. INSTALL SNAP RING

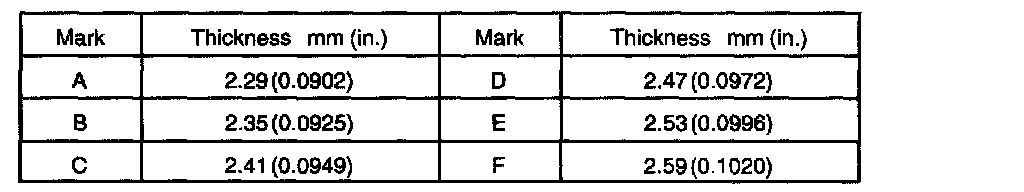

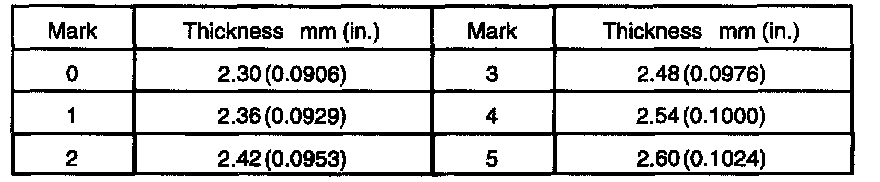

a. Select a snap ring from the table above that will make the thrust clearance of the No. 2 clutch hub less than 0.1 mm (0.0039 inch).
b. Using a screwdriver and hammer, tap in the snap ring.
HINT: Take care not to damage the journal surface of the input shaft.
4. INSPECT 3RD GEAR THRUST CLEARANCE
5. INSTALL SPACER, NEEDLE ROLLER BEARING, No. 2 SYNCHRONIZER RING (FOR 4TH GEAR), 4TH GEAR AND REAR RADIAL BALL BEARING
a. Install the spacer.
b. Apply gear oil to the needle roller bearings and install it.
c. Place the No. 2 synchronizer ring (for the 4th gear) on the No. 2 hub sleeve assembly and align the No. 2 synchronizer ring slots with the No. 2 shifting keys.
d. Install the 4th gear.
NOTICE: Distinguish the No. 2 synchronizer ring (for the 4th gear) by the teeth on the synchronizer ring.

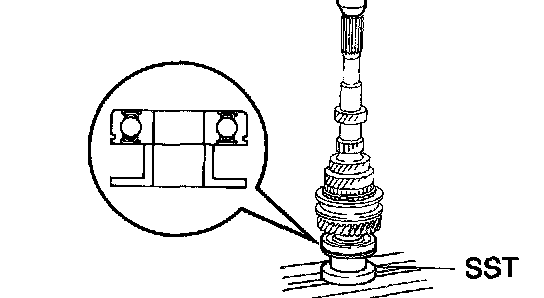

e. Using SST and a press, press in the rear radial ball bearing.
SST 09608-00071
NOTICE: Be sure to install the rear radial ball bearing in the correct direction, as shown in the illustration.
HINT: Set SST to the bearing inner race securely.
6. INSTALL SNAP RING
a. Select a snap ring from the table above that will make the thrust clearance of the rear radial ball bearing less than 0.1 mm (0.0039 inch).
b. Using a screwdriver and hammer, tap in the snap ring.
HINT: Take care not to damage the journal surface of the input shaft.
7. INSPECT 4TH GEAR THRUST CLEARANCE
