Component Tests and General Diagnostics

INSPECTION
1. INSPECT SHIFT LOCK ECU
a. Remove the shift lock ECU.

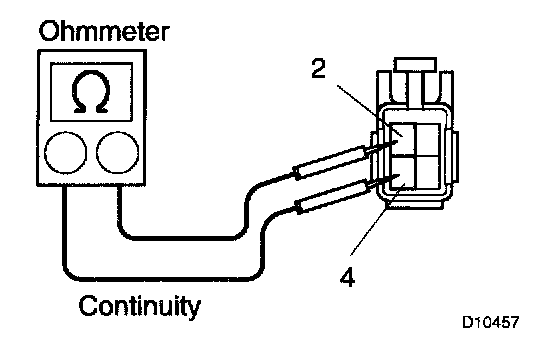

b. Using an ohmmeter, check the resistance between terminals 2 and 4.
Standard: Below 1 Ohm

If the result is not as specified, replace the shift lock ECU.

2. INSPECT SHIFT LOCK SOLENOID
a. Remove the shift lock solenoid.
b. Inspect the shift lock solenoid operation.

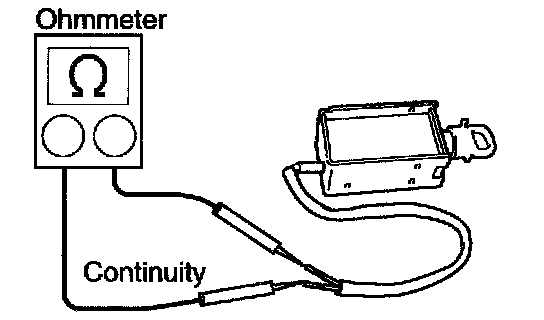

1) Using an ohmmeter, check the resistance between the terminals.
Standard: Below 1 Ohm

If the result is not as specified, replace the shift lock solenoid.

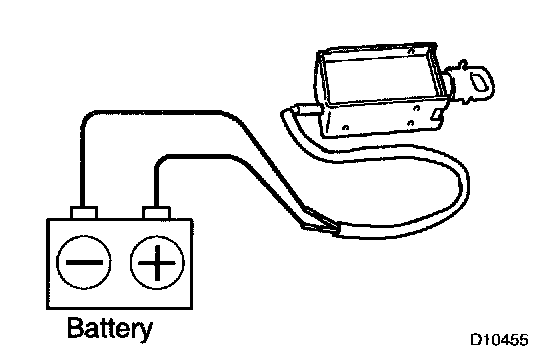

2) Check the solenoid operating sound when connecting the battery voltage across the terminals.
If the solenoid does not operate, replace the shift lock solenoid.
