Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
MR2 Spyder L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Description of On-Board Diagnostics
>>
Fail-Safe Operation
Fail-Safe Operation

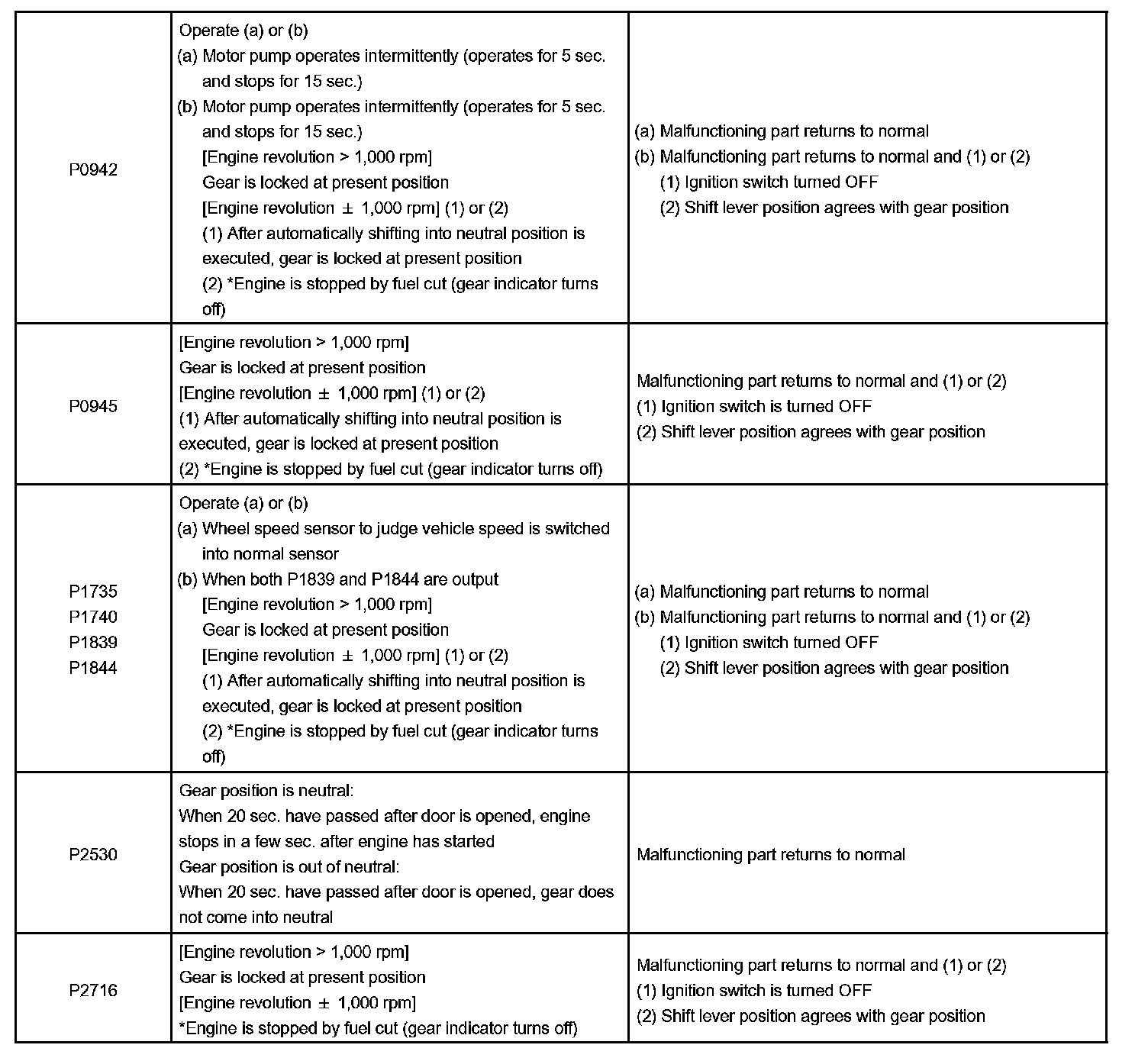

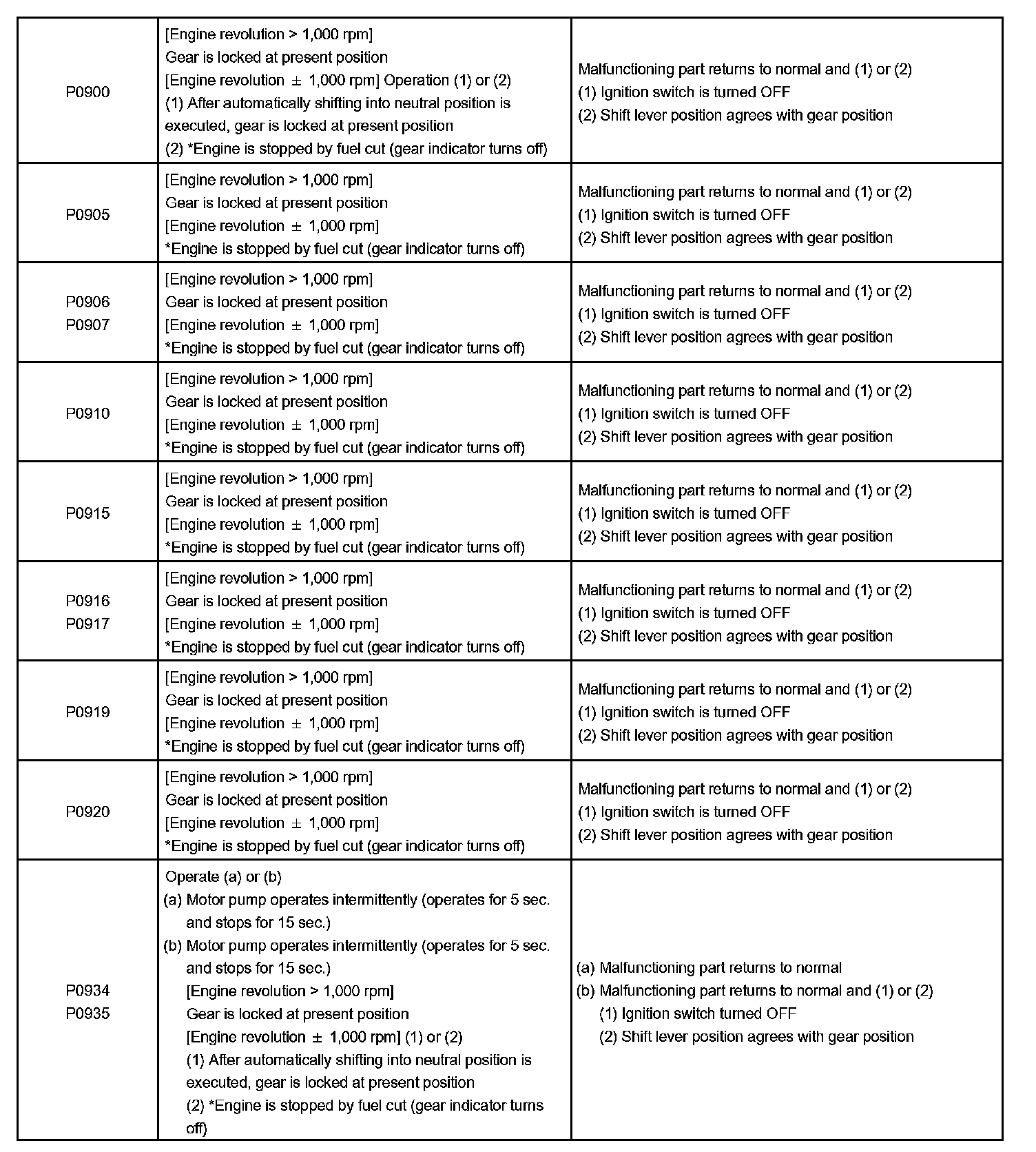

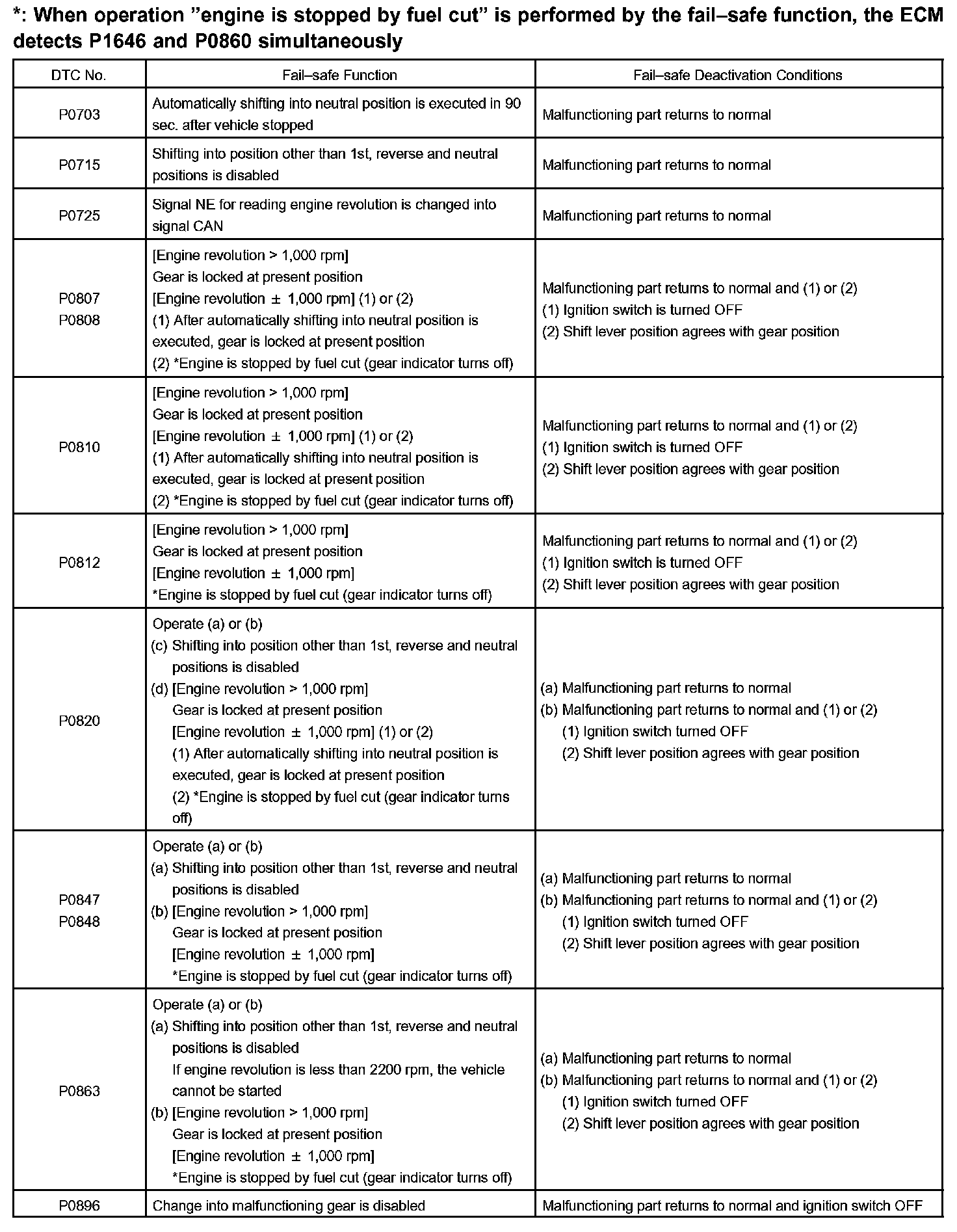

Fail-Safe Operation Part 1:
Fail-Safe Operation Part 2:
Fail-Safe Operation Part 3:
