Antenna Mast: Service and Repair

ROOF ANTENNA POLE SUB-ASSY

REPLACEMENT




1. REMOVE ROOF ANTENNA POLE SUB-ASSY

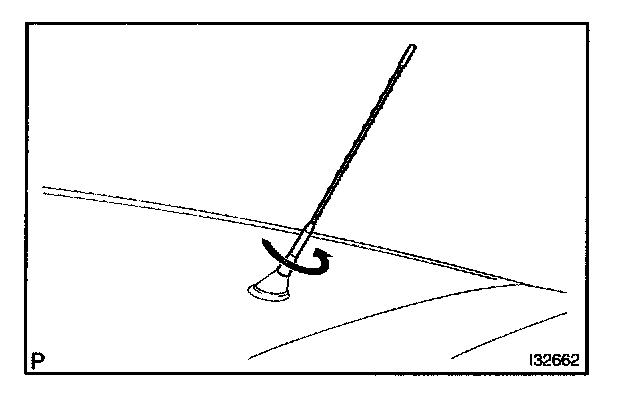

a. Remove the antenna pole sub-assy by turning it in the arrow direction in the illustration.
