Parking Brake Cable Assembly No. 3
REPLACEMENTHINT: For parking brake cable assy No.2, perform the same procedure to the parking brake cable assy No.3.
1. REMOVE REAR WHEEL
2. REMOVE REAR BRAKE DRUM SUB-ASSY DRUM REAR BRAKE TYPE)
3. REMOVE FRONT BRAKE SHOE (DRUM REAR BRAKE TYPE)
SST 09718-00010, 09921-00010
4. REMOVE PARKING BRAKE SHOE STRUT SET LH (DRUM REAR BRAKE TYPE)
5. REMOVE REAR BRAKE AUTOMATIC ADJUST LEVER LH (DRUM REAR BRAKE TYPE)
6. REMOVE REAR BRAKE SHOE (DRUM REAR BRAKE TYPE)
SST 09718-00010
7. DISCONNECT REAR DISC BRAKE CALIPER ASSY LH (DISC REAR BRAKE TYPE)
8. REMOVE REAR DISC (DISC REAR BRAKE TYPE)
9. REMOVE PARKING BRAKE SHOE STRUT LH (DISC REAR BRAKE TYPE)
10. REMOVE PARKING BRAKE SHOE ADJUSTING SCREW SET (DISC REAR BRAKE TYPE)
11. REMOVE PARKING BRAKE SHOE ASSY LH NO.1 (DISC REAR BRAKE TYPE)
SST 09718-00010
12. REMOVE PARKING BRAKE SHOE ASSY LH NO.2 (DISC REAR BRAKE TYPE)
SST 09718-00010
13. REMOVE PARKING BRAKE SHOE LEVER LH (DISC REAR BRAKE TYPE)
14. DISCONNECT PARKING BRAKE CABLE ASSY NO.3

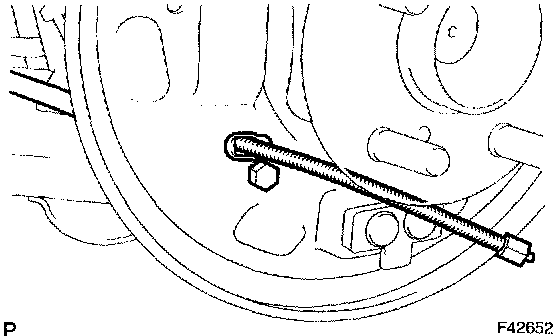

a. Remove the bolt, and disconnect the parking brake cable assy No.3 from the backing plate
15. REMOVE EXHAUST PIPE ASSY FRONT
16. REMOVE FRONT FLOOR HEAT INSULATOR NO.1
17. REMOVE FRONT FLOOR HEAT INSULATOR NO.2
18. REMOVE FUEL TANK PROTECTOR NO.1
a. Remove the 5 nuts and fuel tank protector No.1.
19. REMOVE PARKING BRAKE CABLE ASSY NO.3

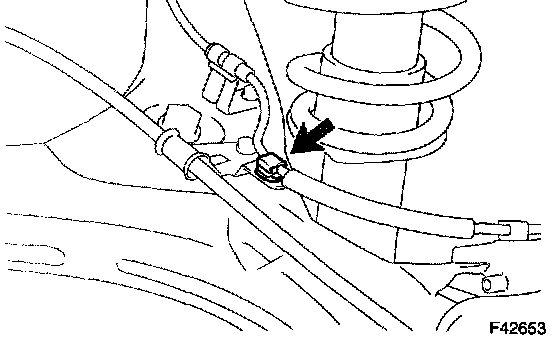

a. Using a clip remover, disconnect the skid control sensor wire harness clip from the clamp.

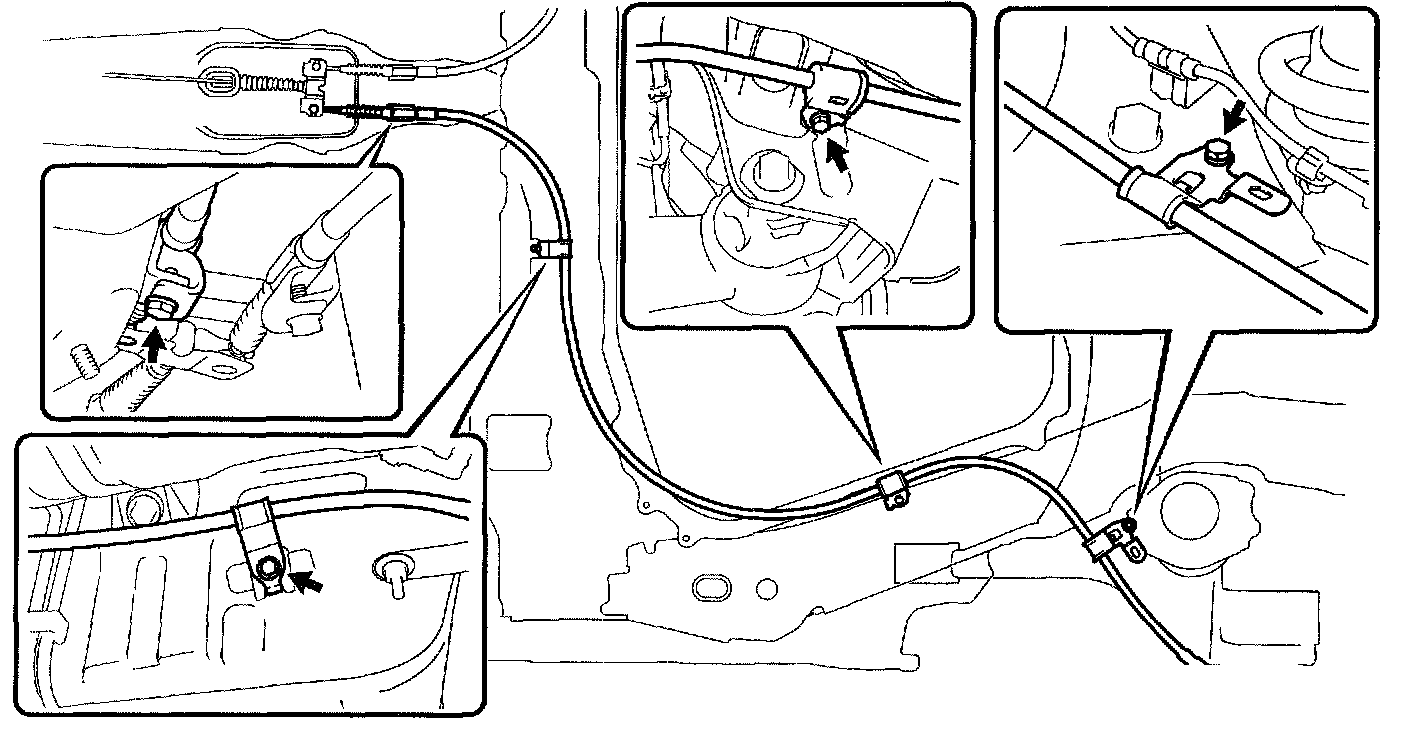

b. Remove the 4 bolts and cable retainer from the body.
c. Disconnect the parking brake cable assy No.3 from the equalizer, and remove the parking brake cable assy No.3.
20. INSTALL PARKING BRAKE CABLE ASSY NO.3
a. Connect the parking brake cable assy No.3 to the equalizer.
b. Install the parking brake cable assy No.3 with the 4 bolts and cable retainer.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)

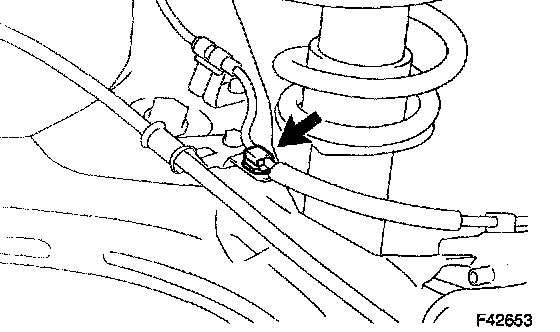

c. Connect the skid control sensor wire harness clip to the clamp.
21. INSTALL FUEL TANK PROTECTOR NO.1
a. Install the fuel tank protector No.1 with the 5 nuts.
Torque: 5.5 Nm (55 kgf-cm, 48 inch lbs.)
22. INSTALL FRONT FLOOR HEAT INSULATOR NO.2
23. INSTALL FRONT FLOOR HEAT INSULATOR NO.1
24. INSTALL EXHAUST PIPE ASSY FRONT
25. CONNECT PARKING BRAKE CABLE ASSY NO.3
a. Connect the parking brake cable assy No.3 to the backing plate with the bolt.
Torque: 7.8 Nm (80 kgf-cm, 69 inch lbs.)
26. APPLICATION HIGH TEMPERATURE GREASE (DRUM REAR BRAKE TYPE)
27. INSTALL REAR BRAKE SHOE (DRUM REAR BRAKE TYPE)
SST 09718-00010
28. INSTALL REAR BRAKE AUTOMATIC ADJUST LEVER LH (DRUM REAR BRAKE TYPE)
29. INSTALL PARKING BRAKE SHOE STRUT SET LH (DRUM REAR BRAKE TYPE)
30. INSTALL FRONT BRAKE SHOE (DRUM REAR BRAKE TYPE)
SST 09718-00010, 09921-00010
31. CHECK REAR DRUM BRAKE INSTALLATION (DRUM REAR BRAKE TYPE)
32. INSTALL REAR BRAKE DRUM SUB-ASSY (DRUM REAR BRAKE TYPE)
33. ADJUST REAR DRUM BRAKE SHOE CLEARANCE (DRUM REAR BRAKE TYPE)
34. APPLICATION HIGH TEMPERATURE GREASE (DISC REAR BRAKE TYPE)
35. INSTALL PARKING BRAKE SHOE LEVER LH (DISC REAR BRAKE TYPE)
36. INSTALL PARKING BRAKE SHOE ASSY LH NO.2 (DISC REAR BRAKE TYPE)
SST 09718-00010
37. INSTALL PARKING BRAKE SHOE ASSY LH NO.1 (DISC REAR BRAKE TYPE)
SST 09718-00010
38. INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET (DISC REAR BRAKE TYPE)
39. INSTALL PARKING BRAKE SHOE STRUT LH (DISC REAR BRAKE TYPE)
40. CHECK PARKING BRAKE INSTALLATION (DISC REAR BRAKE TYPE)
41. INSTALL REAR DISC (DISC REAR BRAKE TYPE)
42. ADJUST PARKING BRAKE SHOE CLEARANCE (DISC REAR BRAKE TYPE)
43. CONNECT REAR DISC BRAKE CALIPER ASSY LH (DISC REAR BRAKE TYPE)
44. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
45. INSPECT PARKING BRAKE LEVER TRAVEL
46. ADJUST PARKING BRAKE LEVER TRAVEL
47. CHECK EXHAUST LEAKAGE
