Rear

REPLACEMENT

HINT: COMPONENTS: See Suspension; Diagrams; Exploded Views.

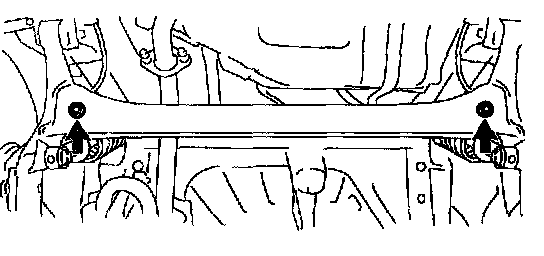

1. REMOVE STABILIZER BAR REAR
a. Remove the 2 bolts, nuts and stabilizer bar rear.
2. INSTALL STABILIZER BAR REAR
a. Install the 2 bolts, nuts and stabilizer bar rear.
Torque: 195 Nm (1,988 kgf-cm, 144 ft. lbs.)

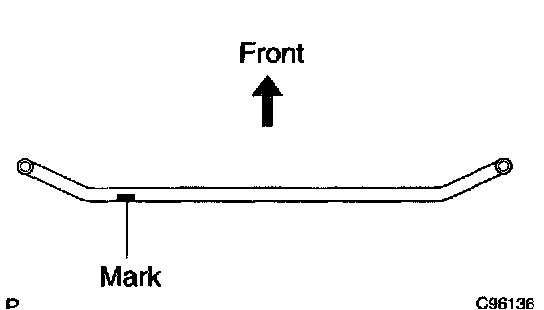

HINT: Install the stabilizer bar rear so that the mark is positioned on the rear left side of the vehicle.
