Automatic Transmission/Transaxle: Diagrams

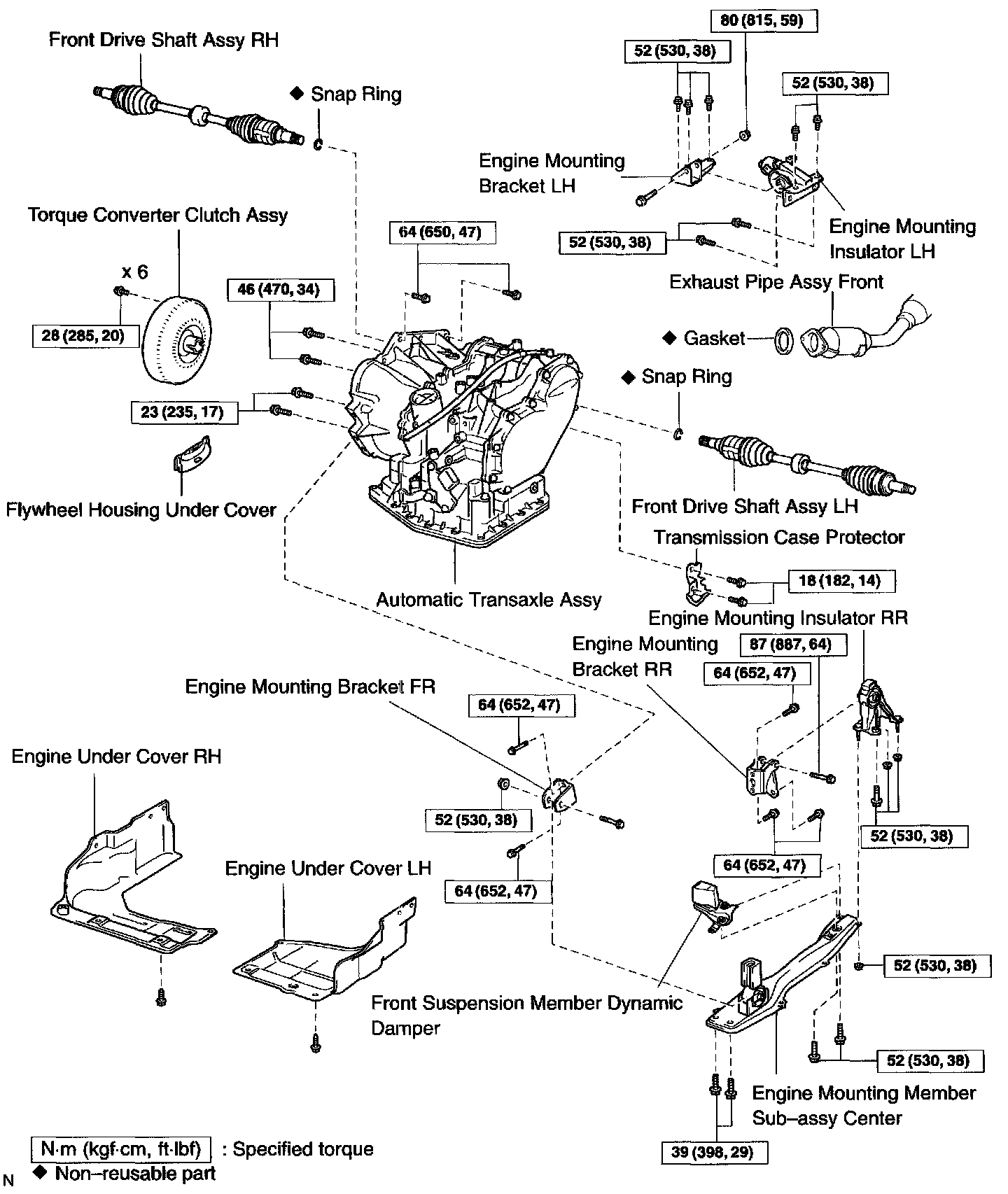

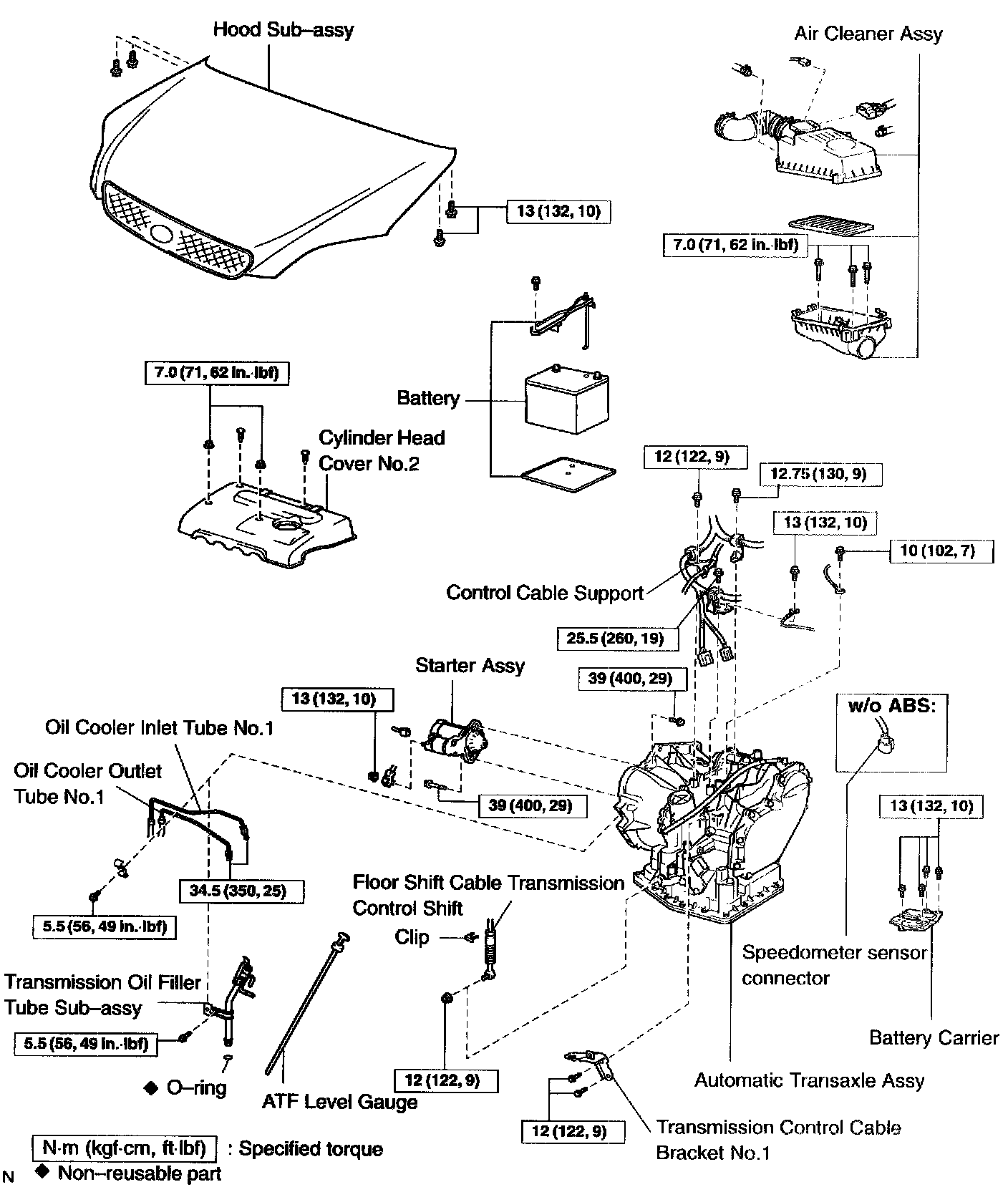

AUTOMATIC TRANSAXLE ASSY COMPONENTS W/ RELATED COMPONENTS
