Cruise Control System

DTC 14 ACTUATOR MECHANICAL MALFUNCTION

CIRCUIT DESCRIPTION

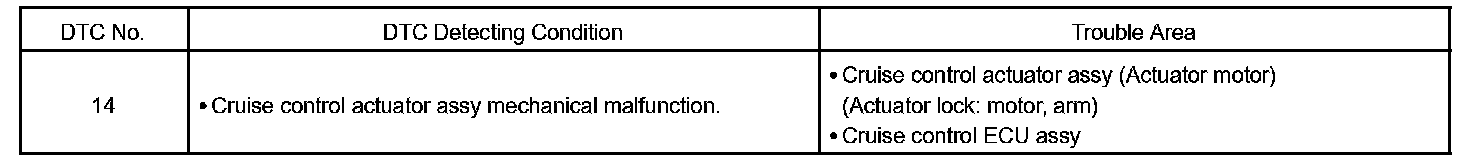

DTC Detecting Condition:

The circuit detects the rotation position of the actuator control plate and sends a signal to the cruise control ECU assy.

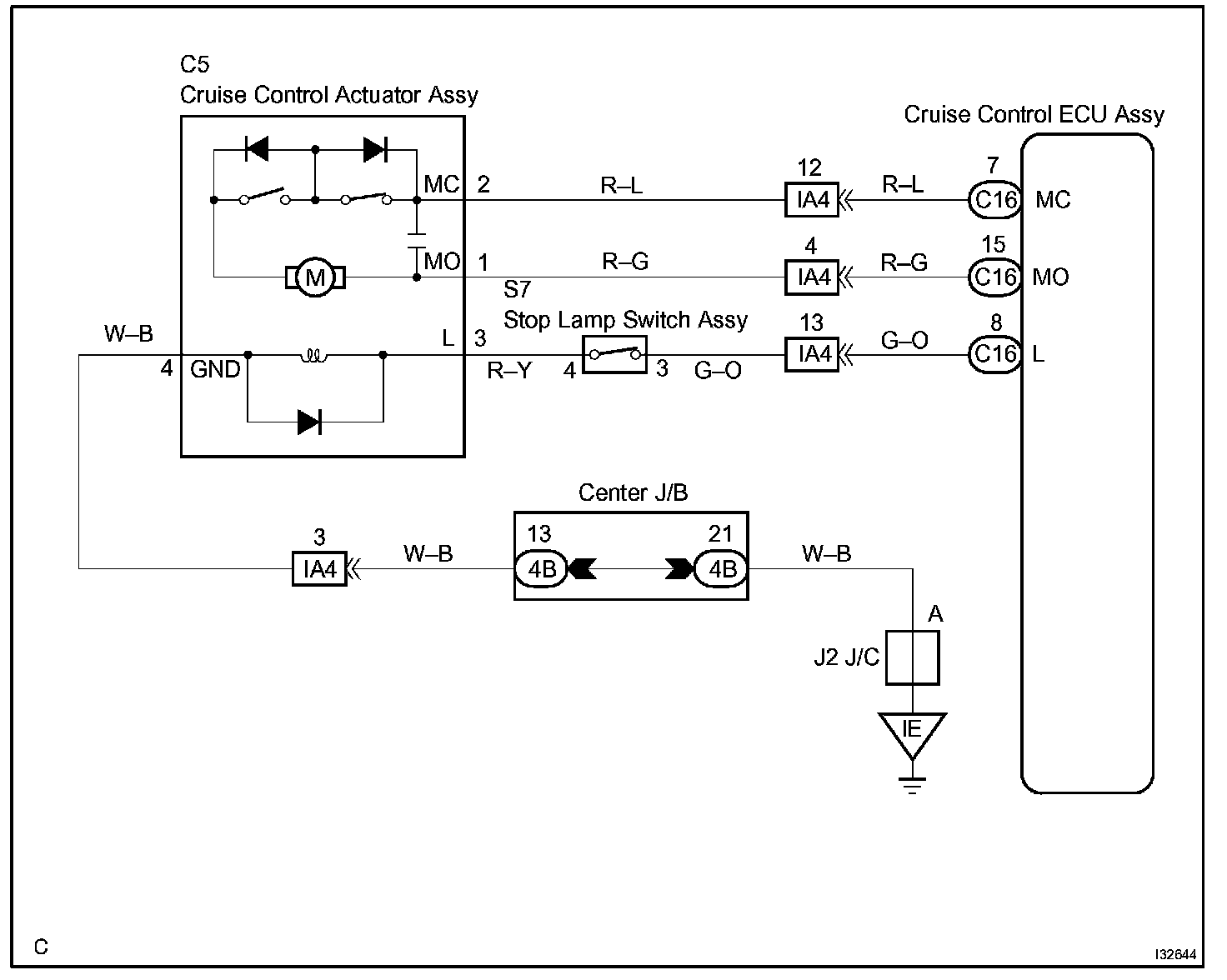

Wiring Diagram:

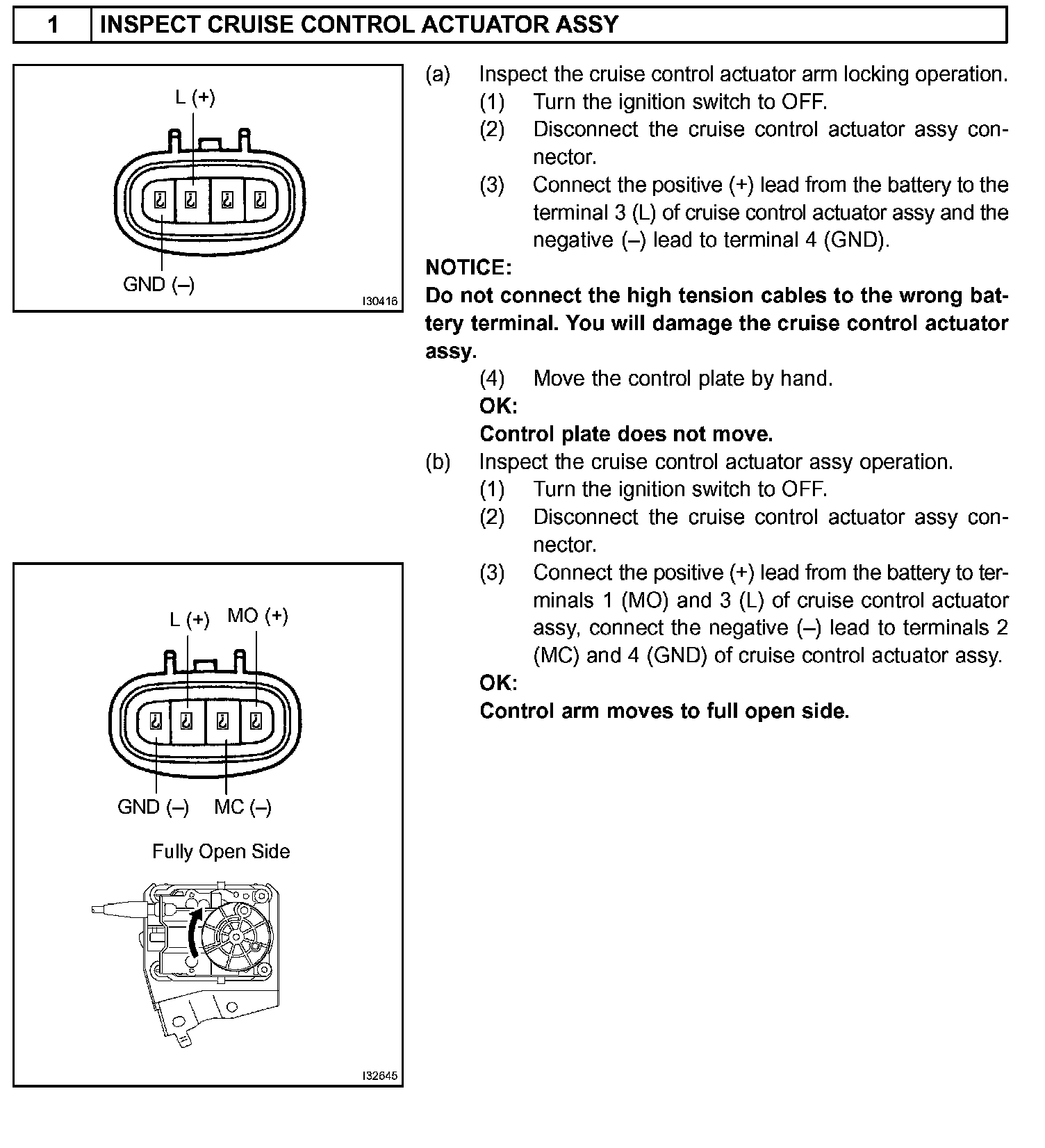

Step 1:

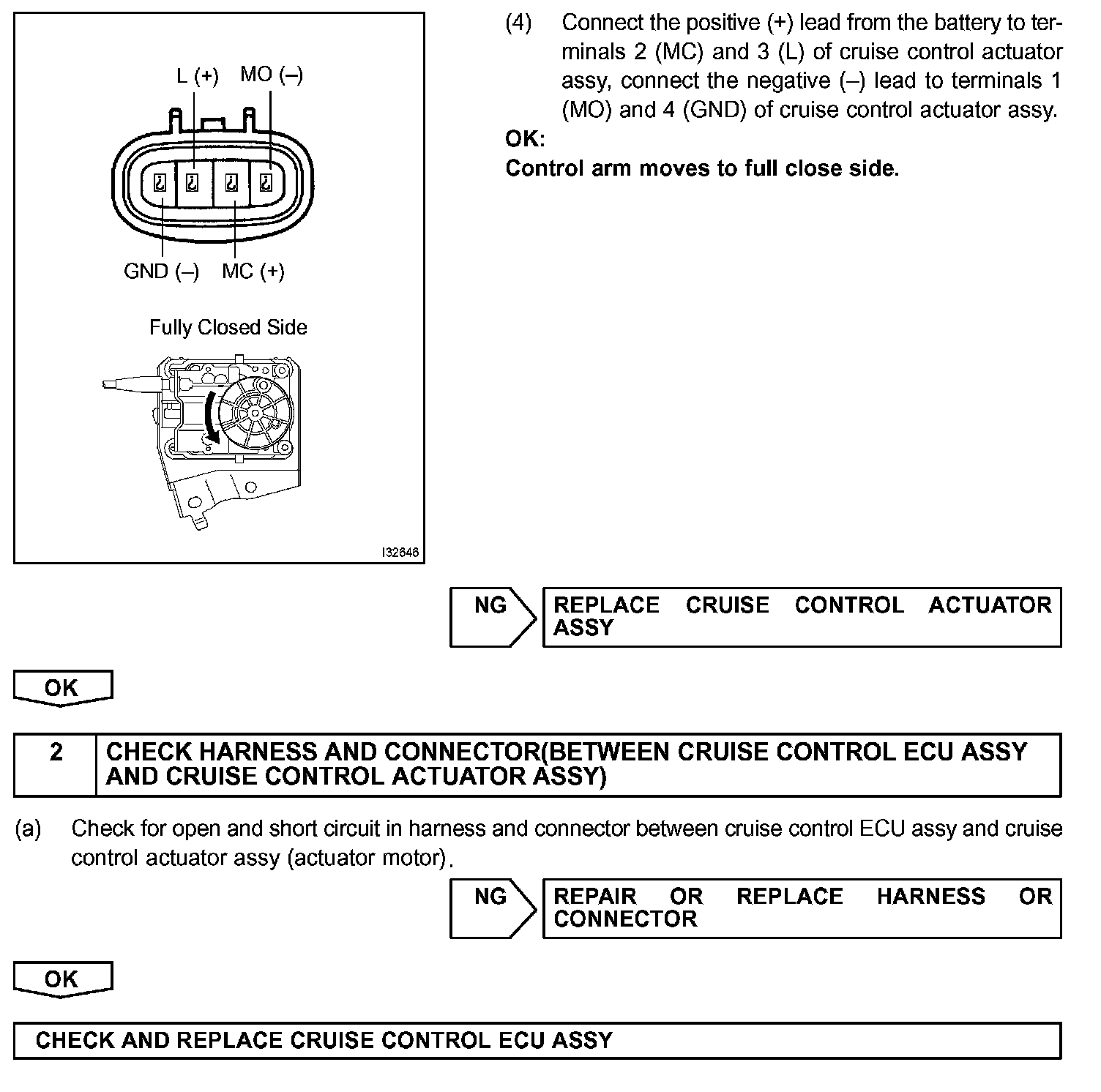

Step 1 (Continued) - 2:

INSPECTION PROCEDURE
