Antenna Cable: Service and Repair

ANTENNA CORD SUB-ASSY

REPLACEMENT

1. REMOVE ROOF HEADLINING ASSY

HINT: Refer to the instructions for removal of the roof headlining assy.

2. REMOVE ANTENNA CORD SUB-ASSY
a. Remove the antenna cord sub-assy from the roof headlining assy.




3. INSTALL ANTENNA CORD SUB-ASSY

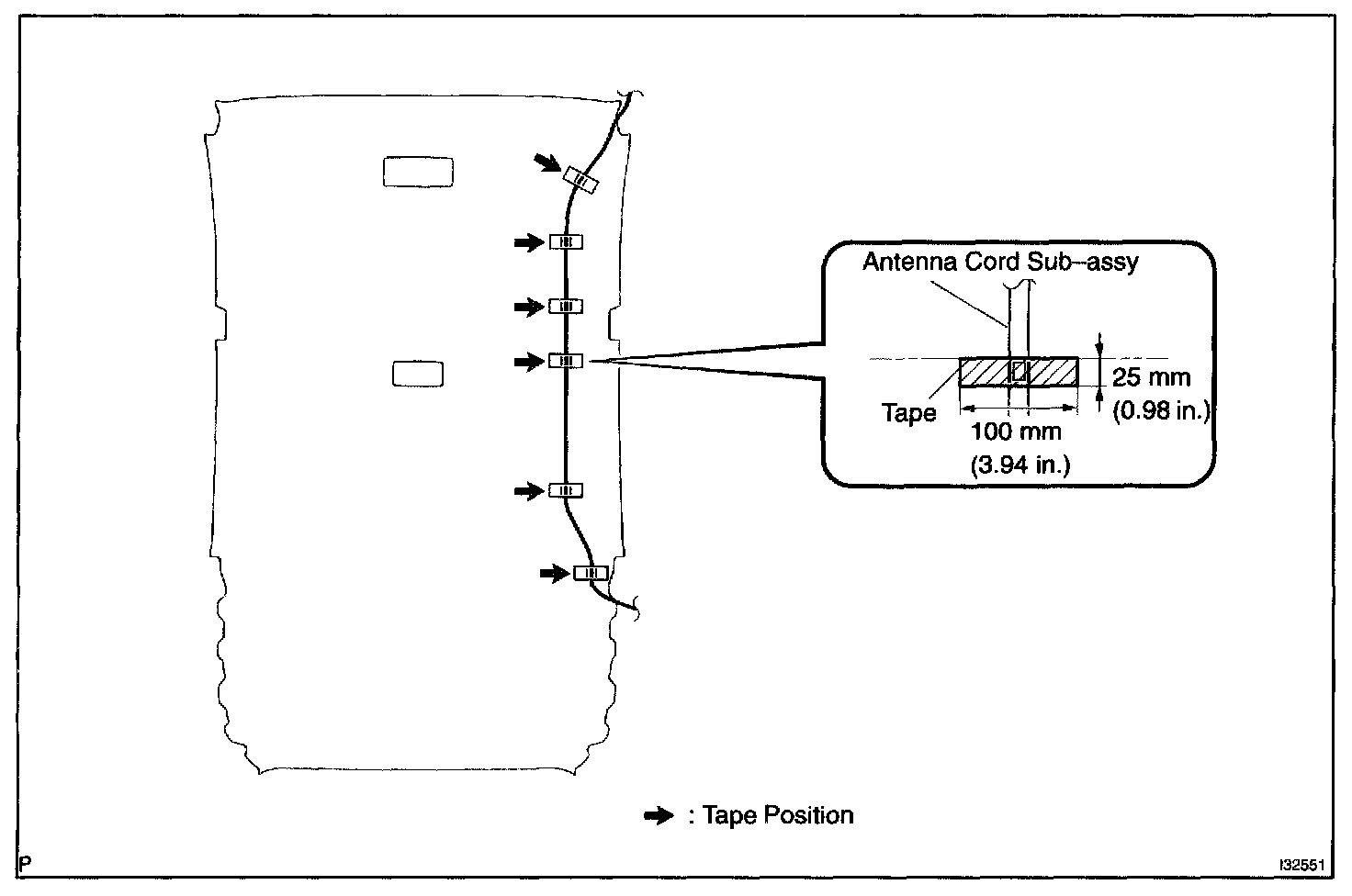

a. Tape the antenna cord sub-assy at the position of the roof headlining assy shown in the illustration.

NOTE:
- The antenna cord sub-assy should come to the center of the tape (100 mm (3.94 in.) x 25 mm (0.98 in.)) when taped.
- Try not to touch the adhesive side of the tape when taping.

4. INSTALL ROOF HEADLINING ASSY
5. INSTALL REAR SEAT CUSHION ASSY AND REAR SEAT BACK ASSY
