Home >> Toyota >> 2004 >> Matrix 2WD L4-1.8L (2ZZ-GE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> Map Disc Cannot be Inserted

Map Disc Cannot be Inserted

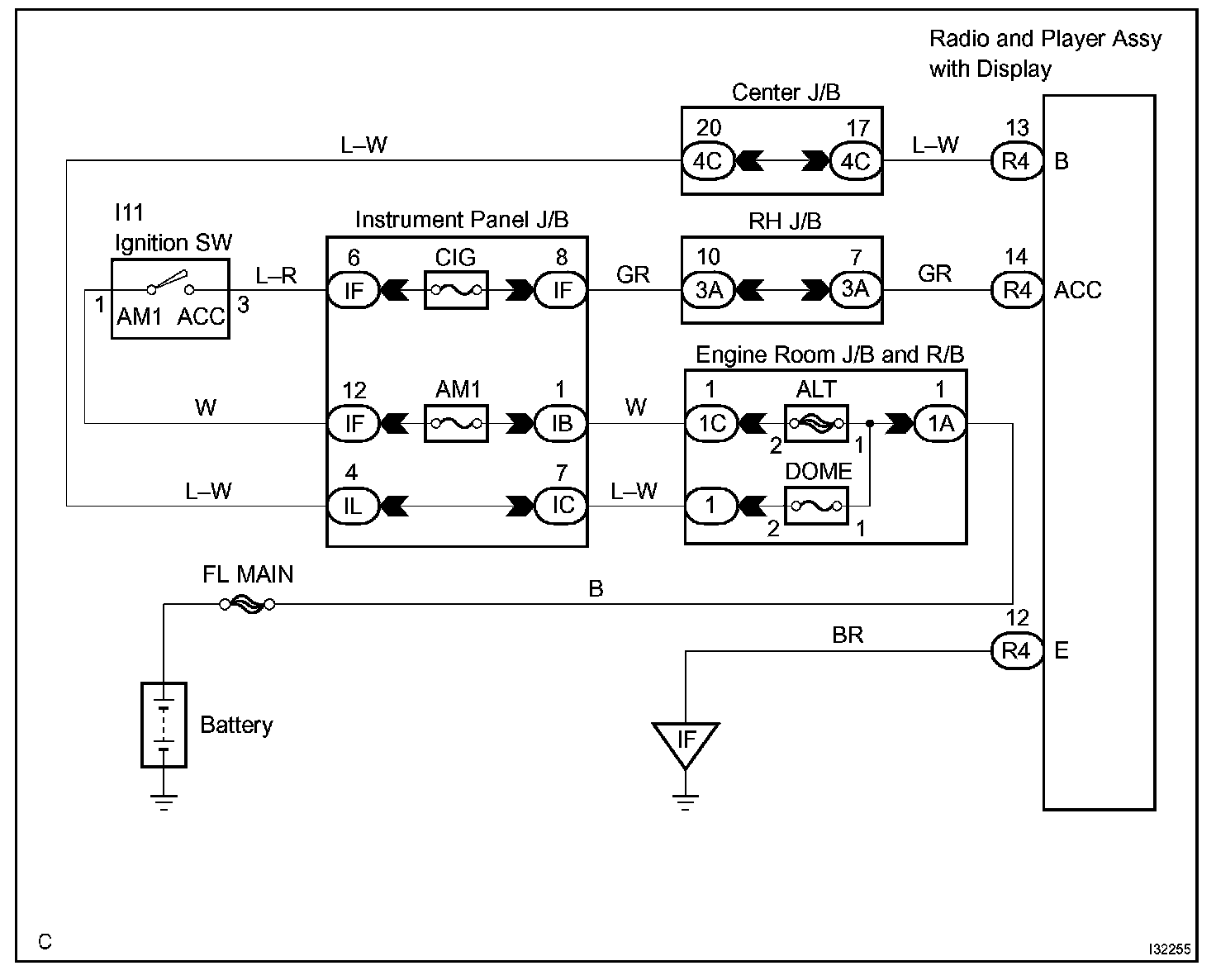

Wiring Diagram:

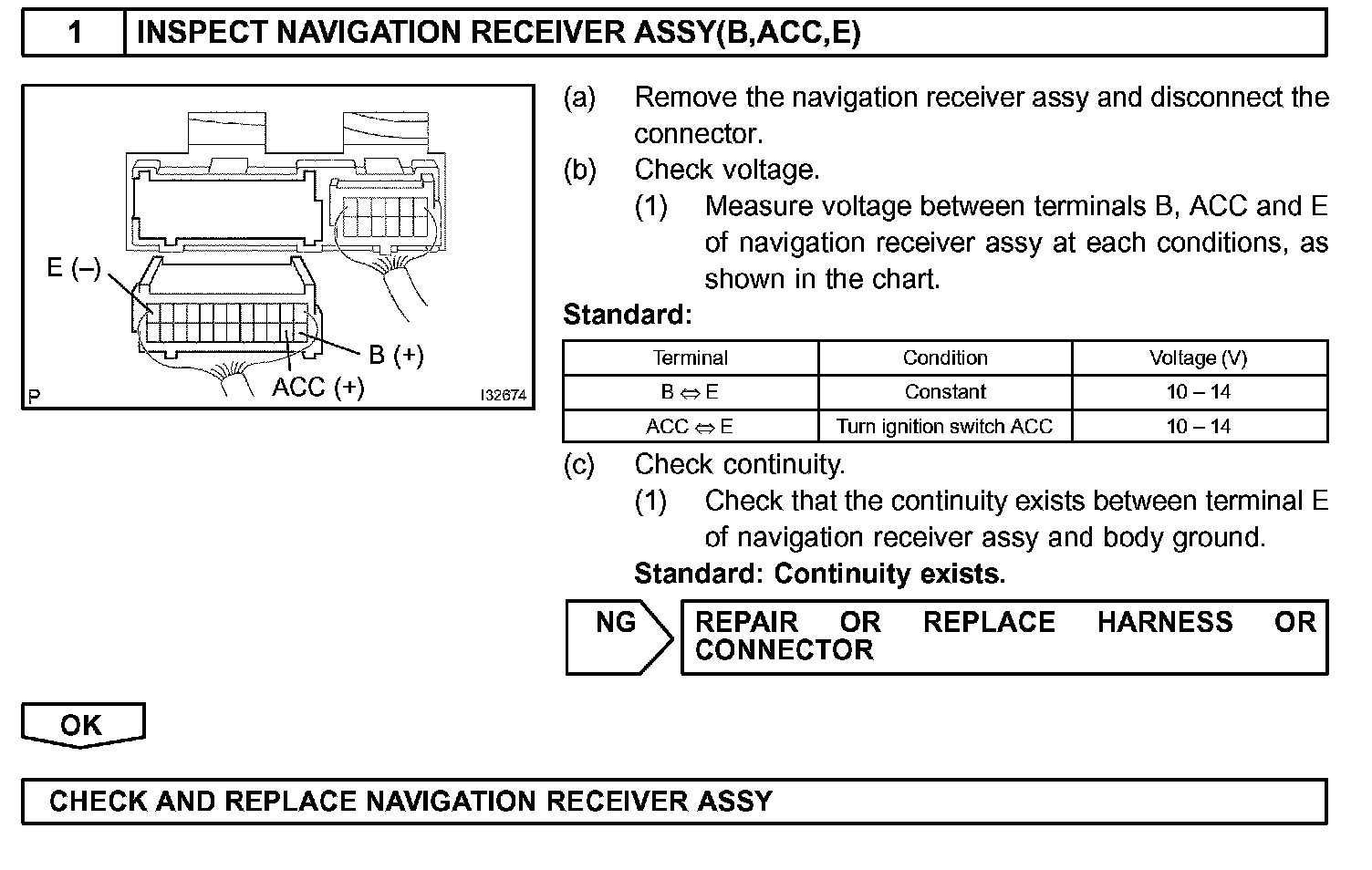

Step 1:




INSPECTION PROCEDURE
