Screen Can't Be Dimmed / Light Switch Turned to Tail Position

Screen Cannot Be Dimmed When Light Control Switch Is Turned to "Tail" Position

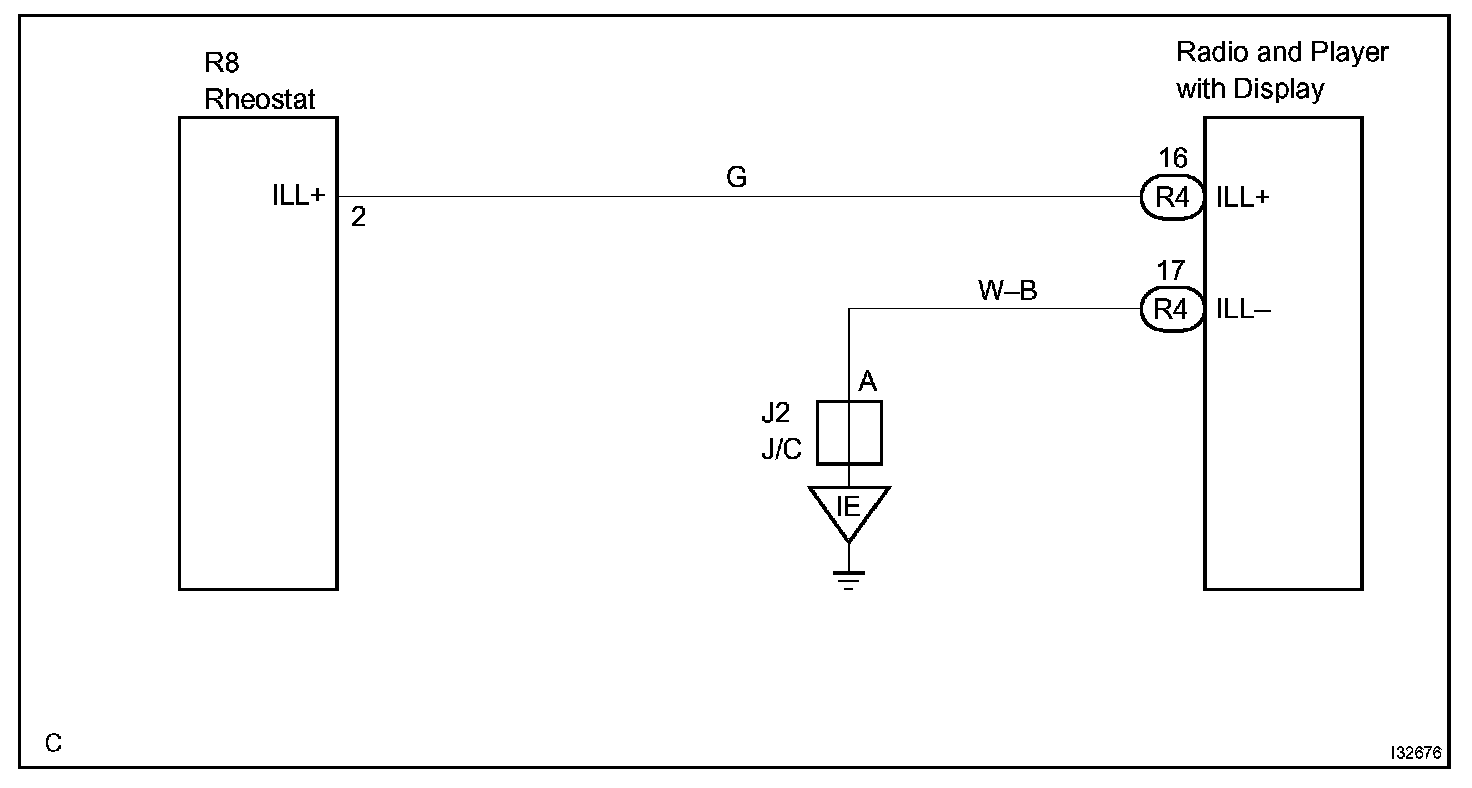

Wiring Diagram:

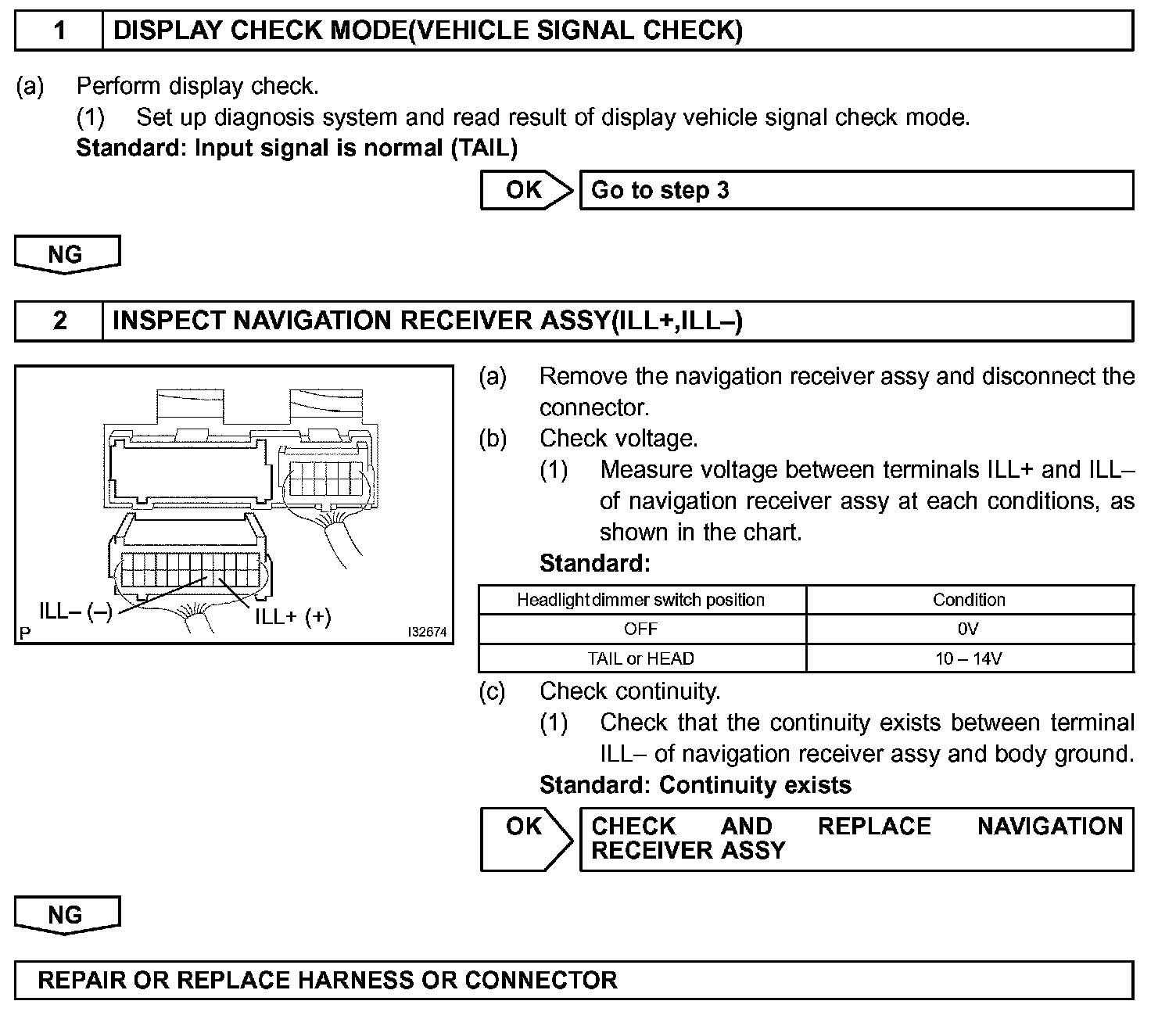

Step 1 - 2:

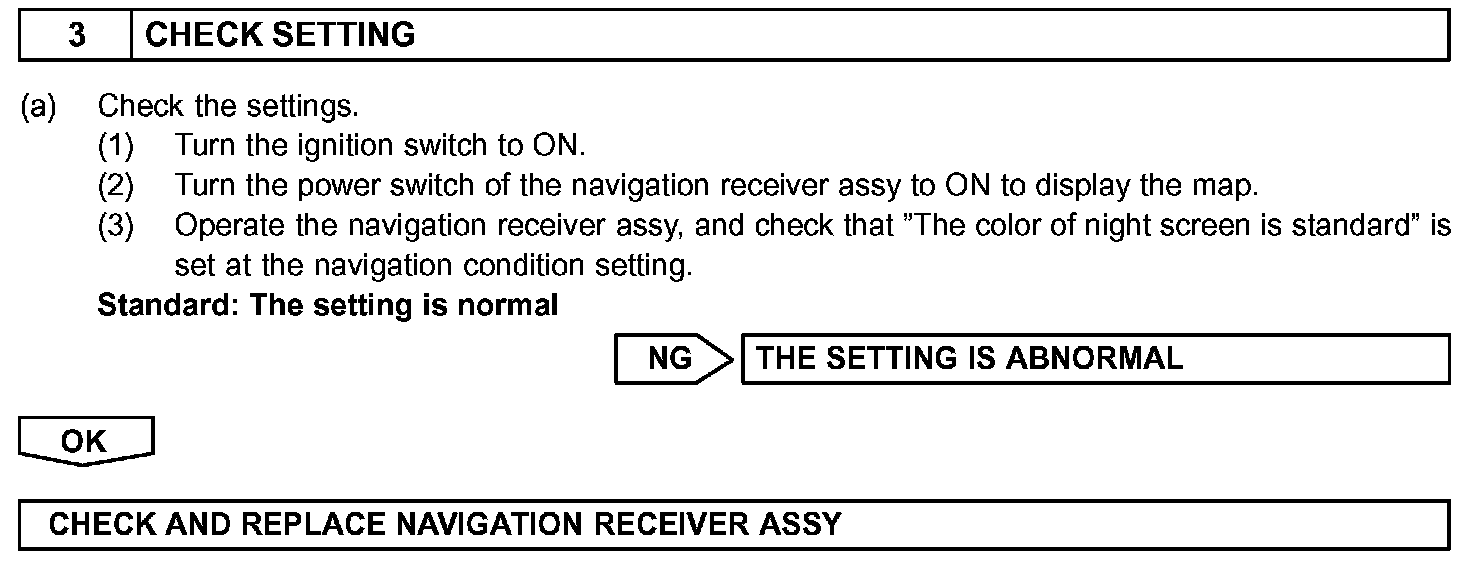

Step 3:




INSPECTION PROCEDURE
