Sound Quality Is Bad In All Modes (Sound Is Low)

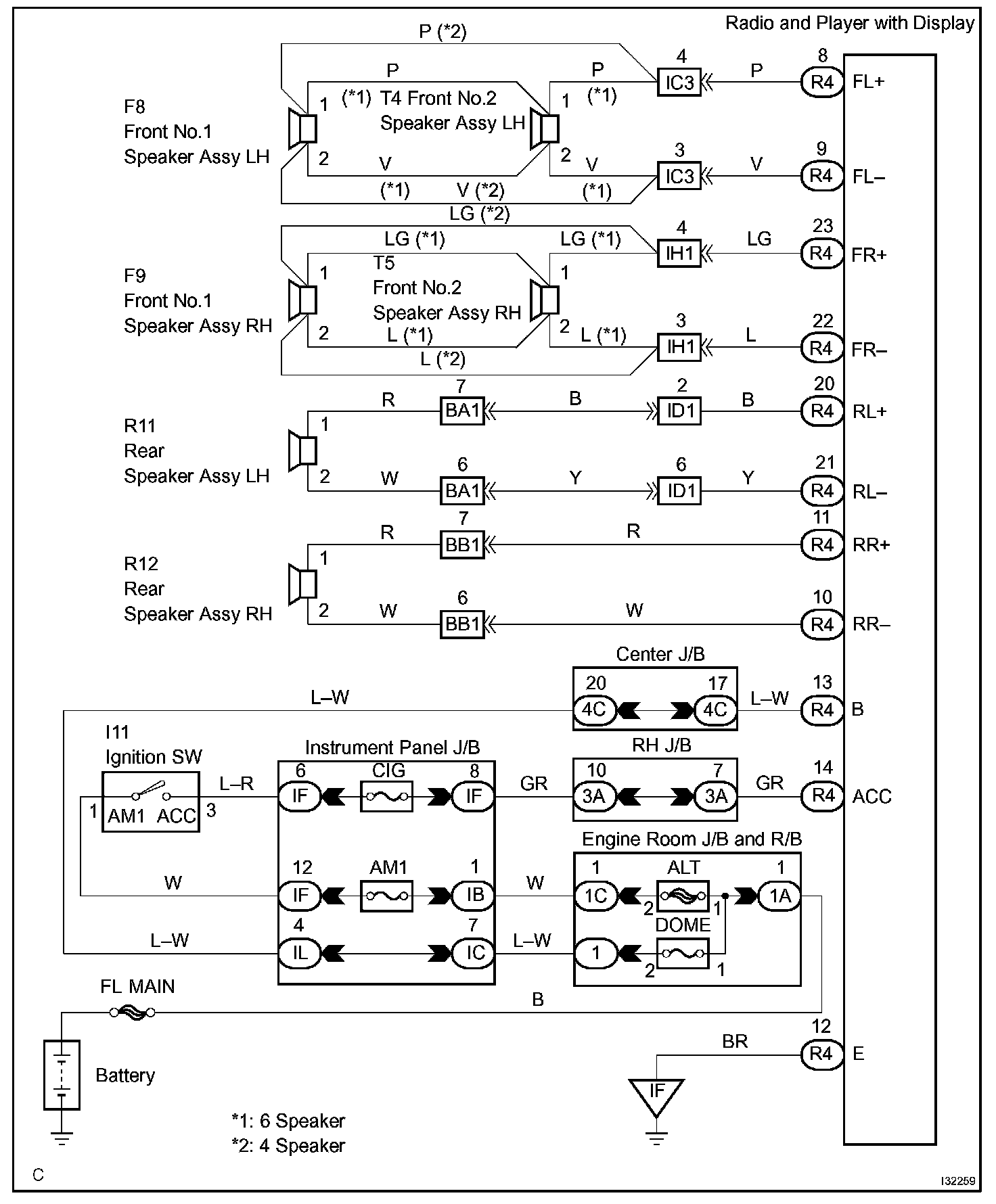

Wiring Diagram:

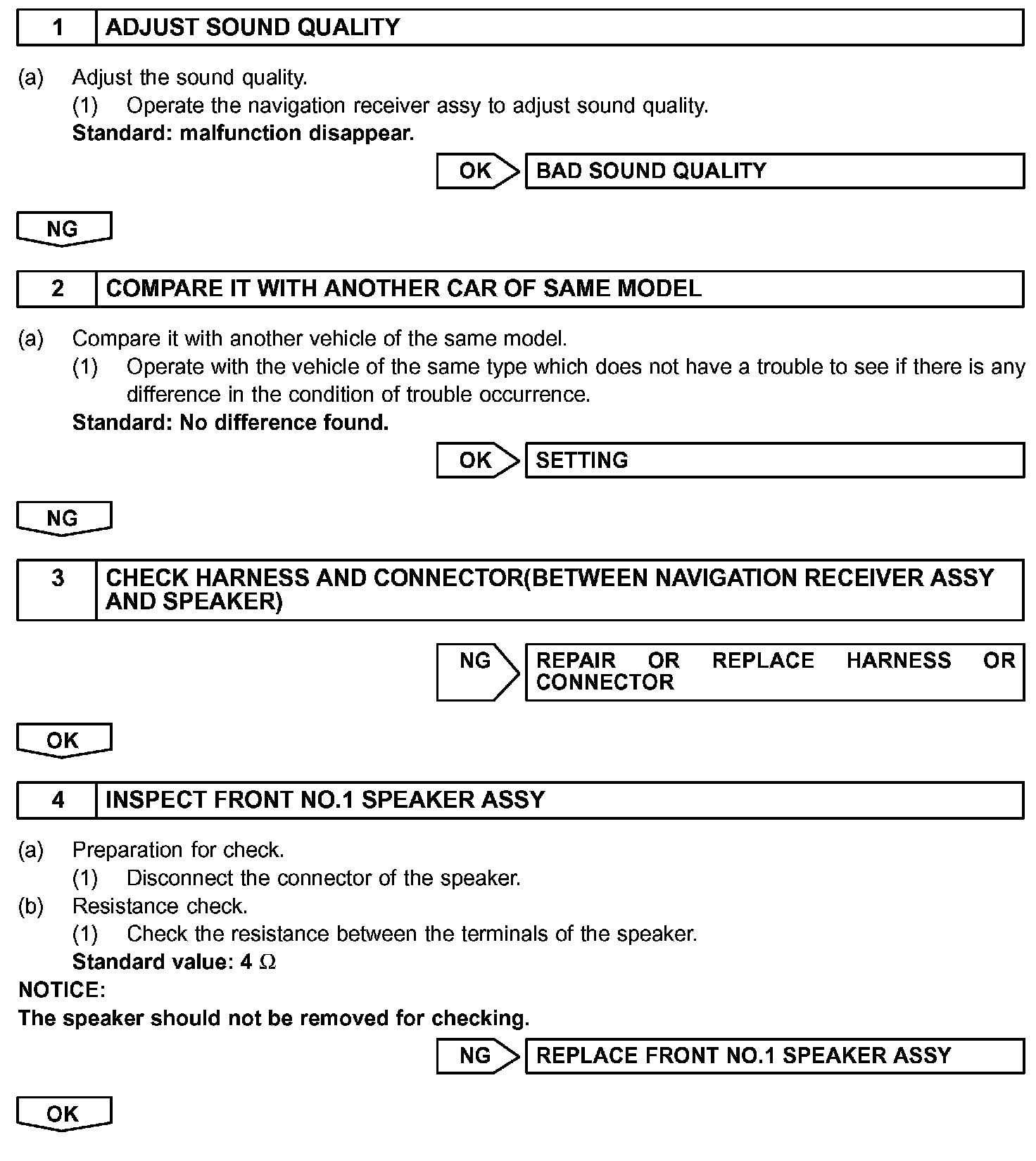

Step 1 - 4:

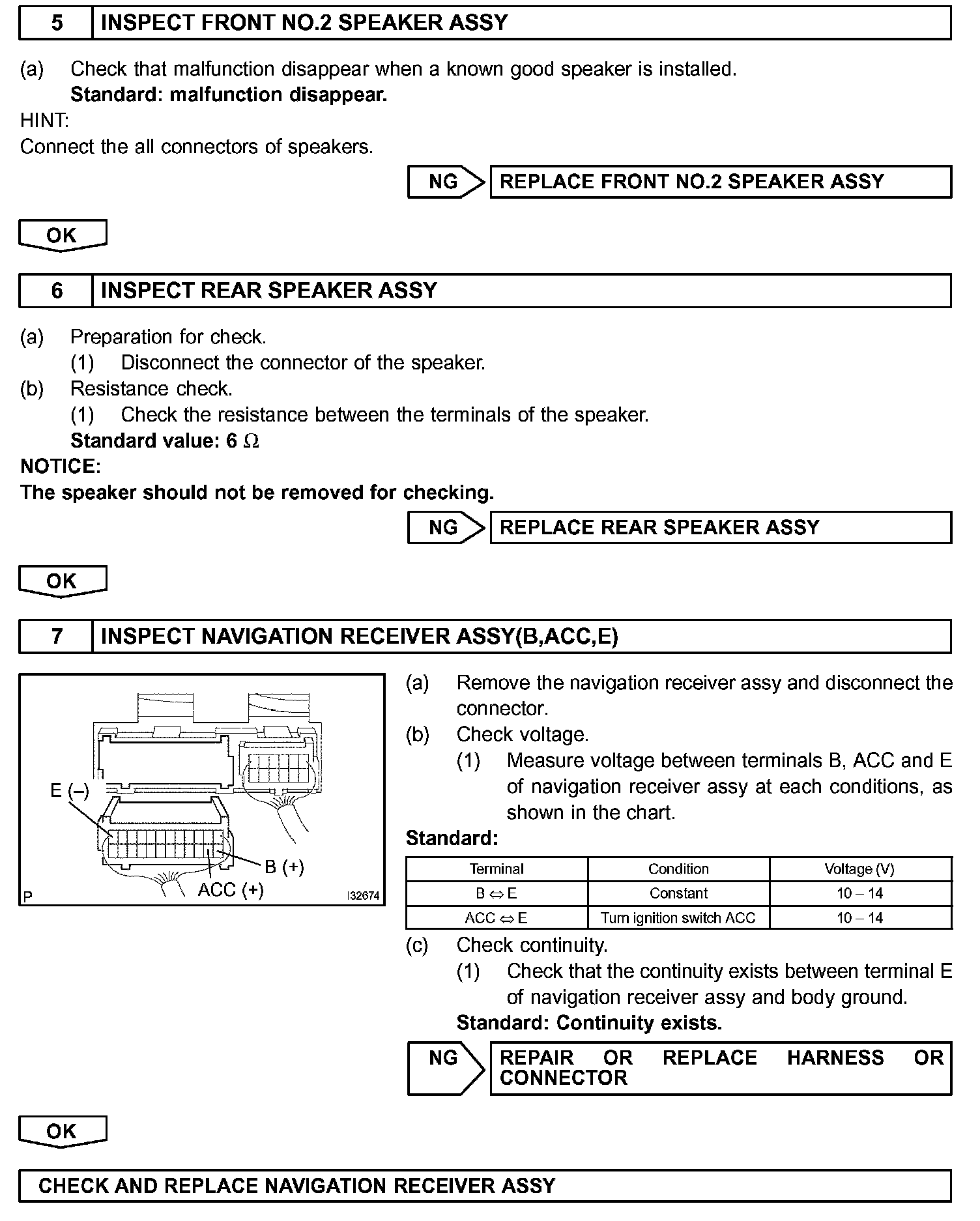

Step 5 - 7:




INSPECTION PROCEDURE
