The Sound of Only Disc Player Changer Is Not Heard From Speaker
The Sound of Only Disc Player Changer Is Not Heard From Speaker

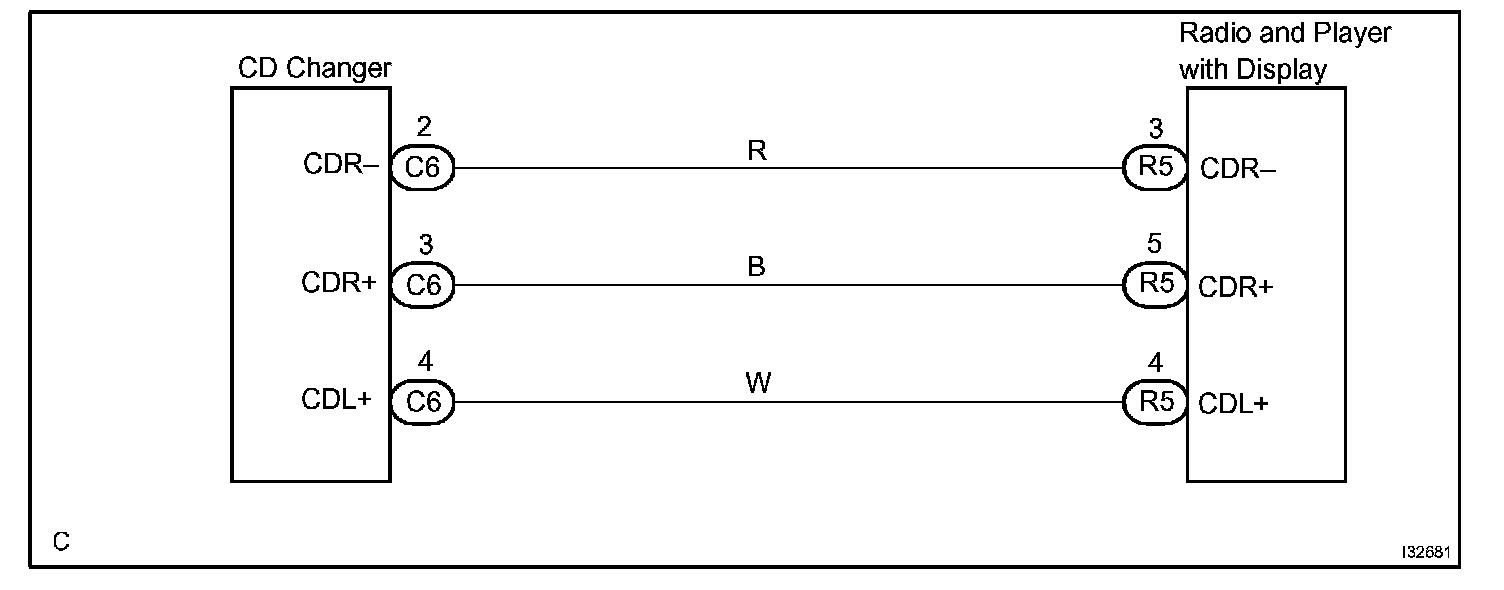

Wiring Diagram:

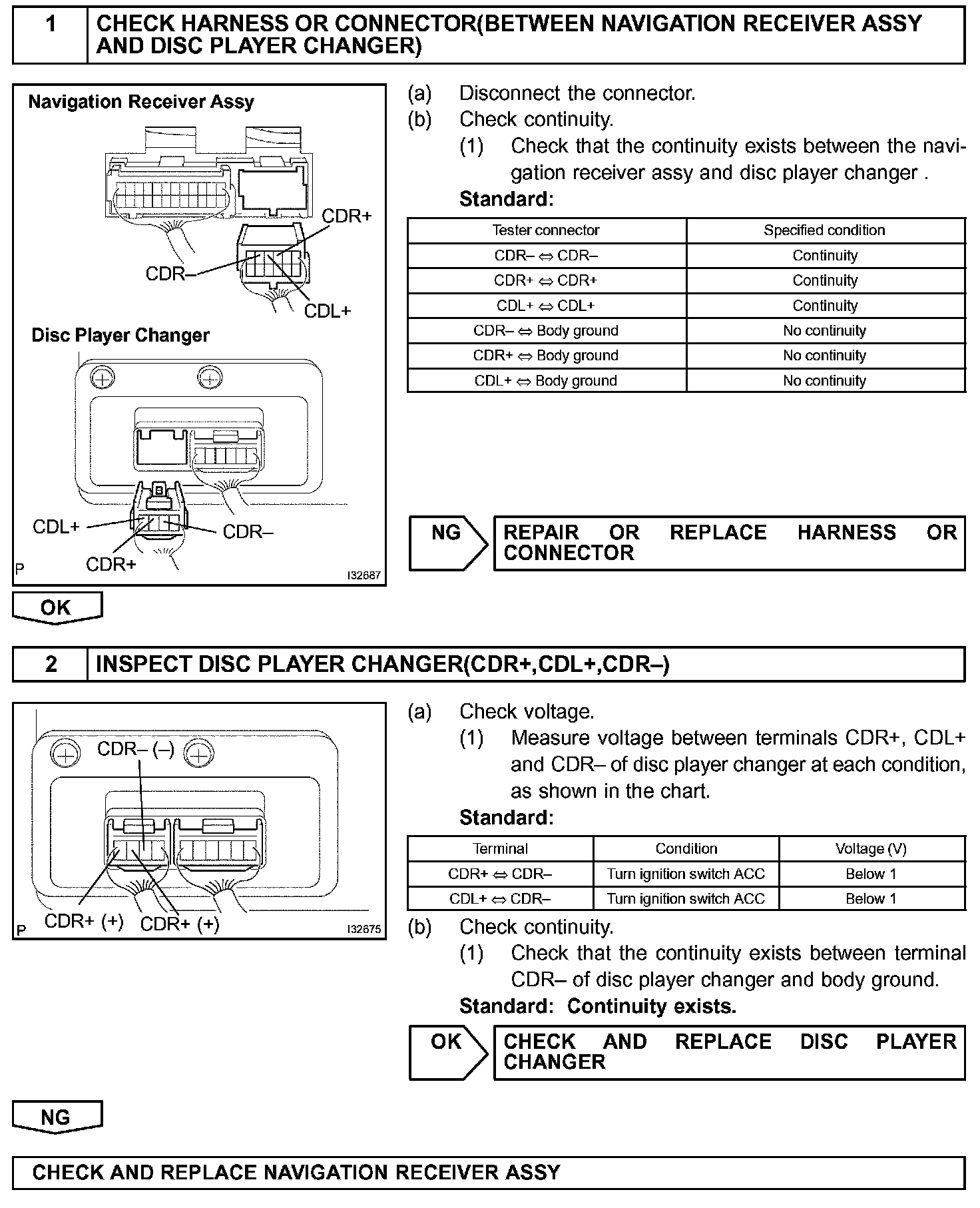

Step 1 - 2:
INSPECTION PROCEDURE
