Home >> Toyota >> 2004 >> Matrix 2WD L4-1.8L (2ZZ-GE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> Vehicle Icon Considerably Deviates

Vehicle Icon Considerably Deviates

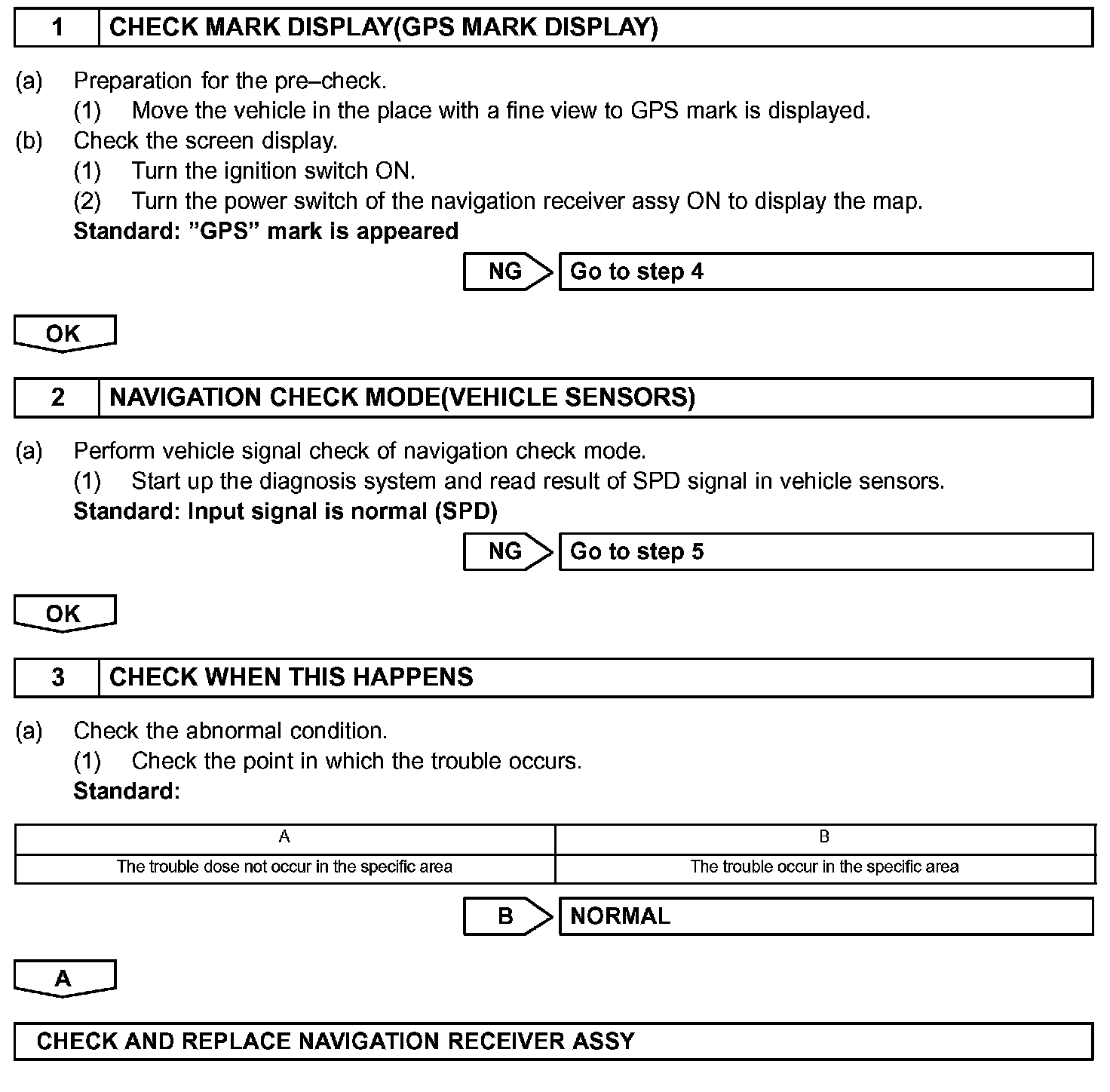

Step 1 - 3:

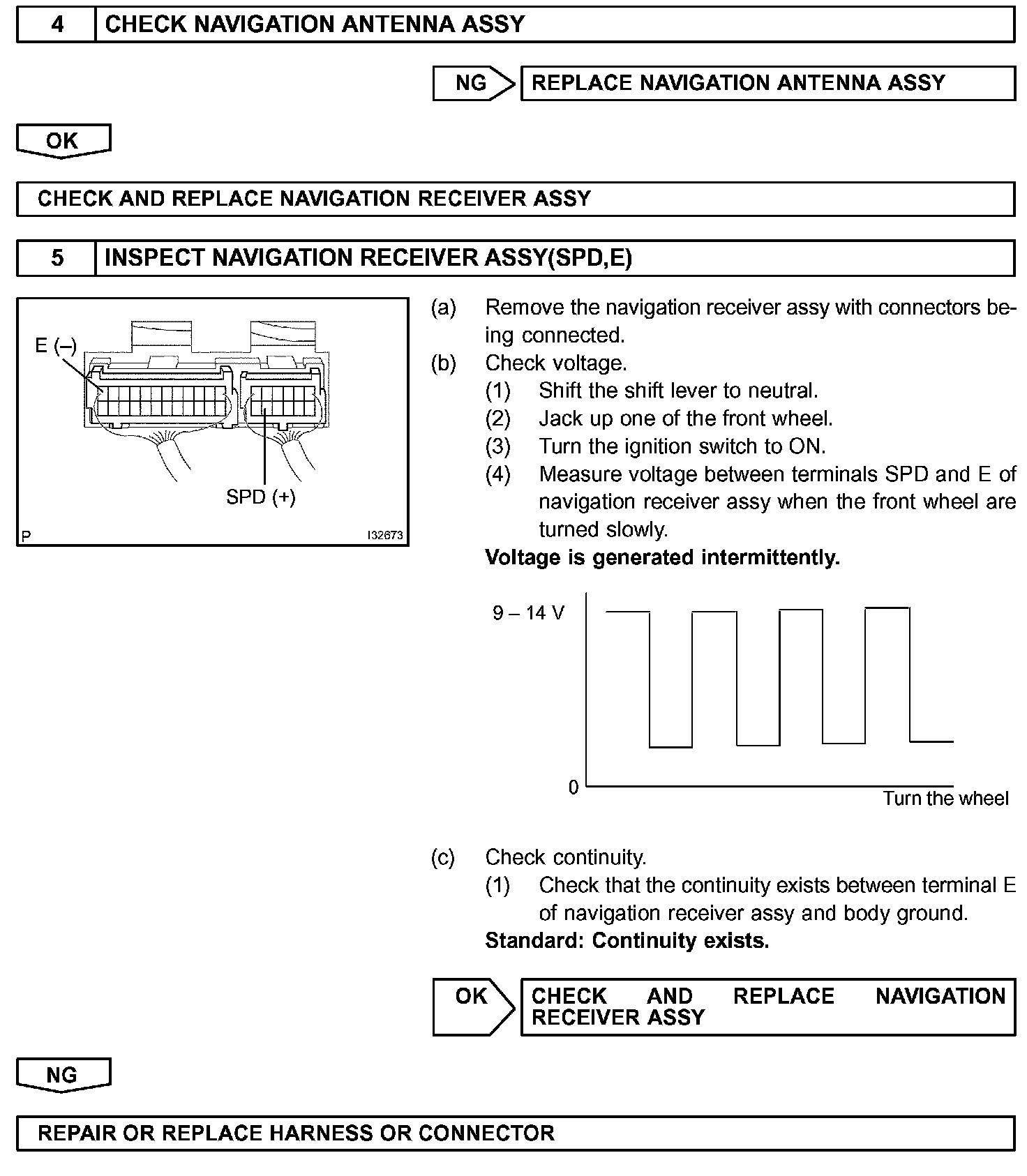

Step 4 - 5:

INSPECTION PROCEDURE
