CD Changer: Service and Repair

DISC PLAYER CHANGER

REPLACEMENT

1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE FRONT SEAT (PASSENGER SEAT POSITION)

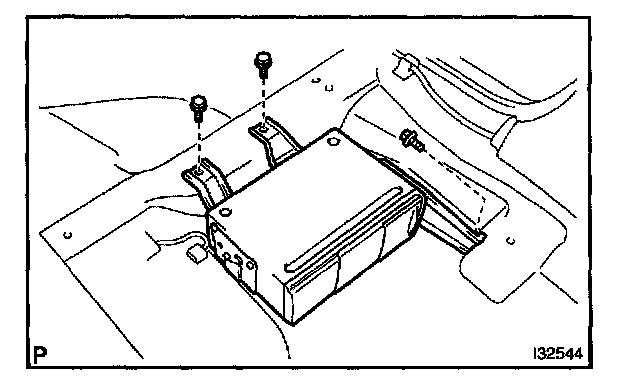

3. REMOVE DISC PLAYER CHANGER
a. Disconnect the connector.
b. Remove the 3 bolts and disc player changer.

4. INSTALL FRONT SEAT (PASSENGER SEAT POSITION)
