Home >> Toyota >> 2004 >> Matrix 2WD L4-1.8L (2ZZ-GE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> Although System Is Powered, CD Cannot Be Played

Although System Is Powered, CD Cannot Be Played

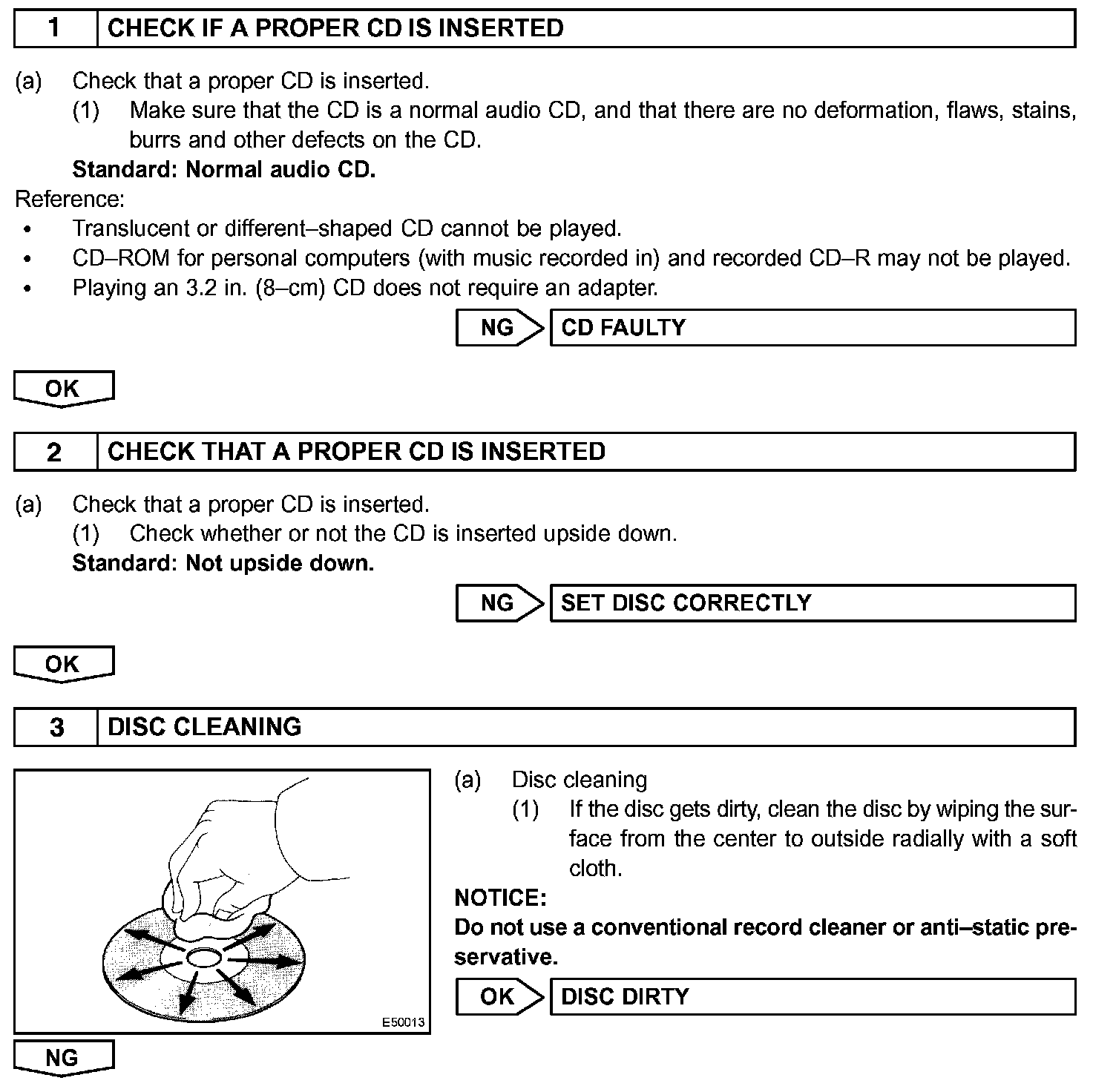

Steps 1 - 3:

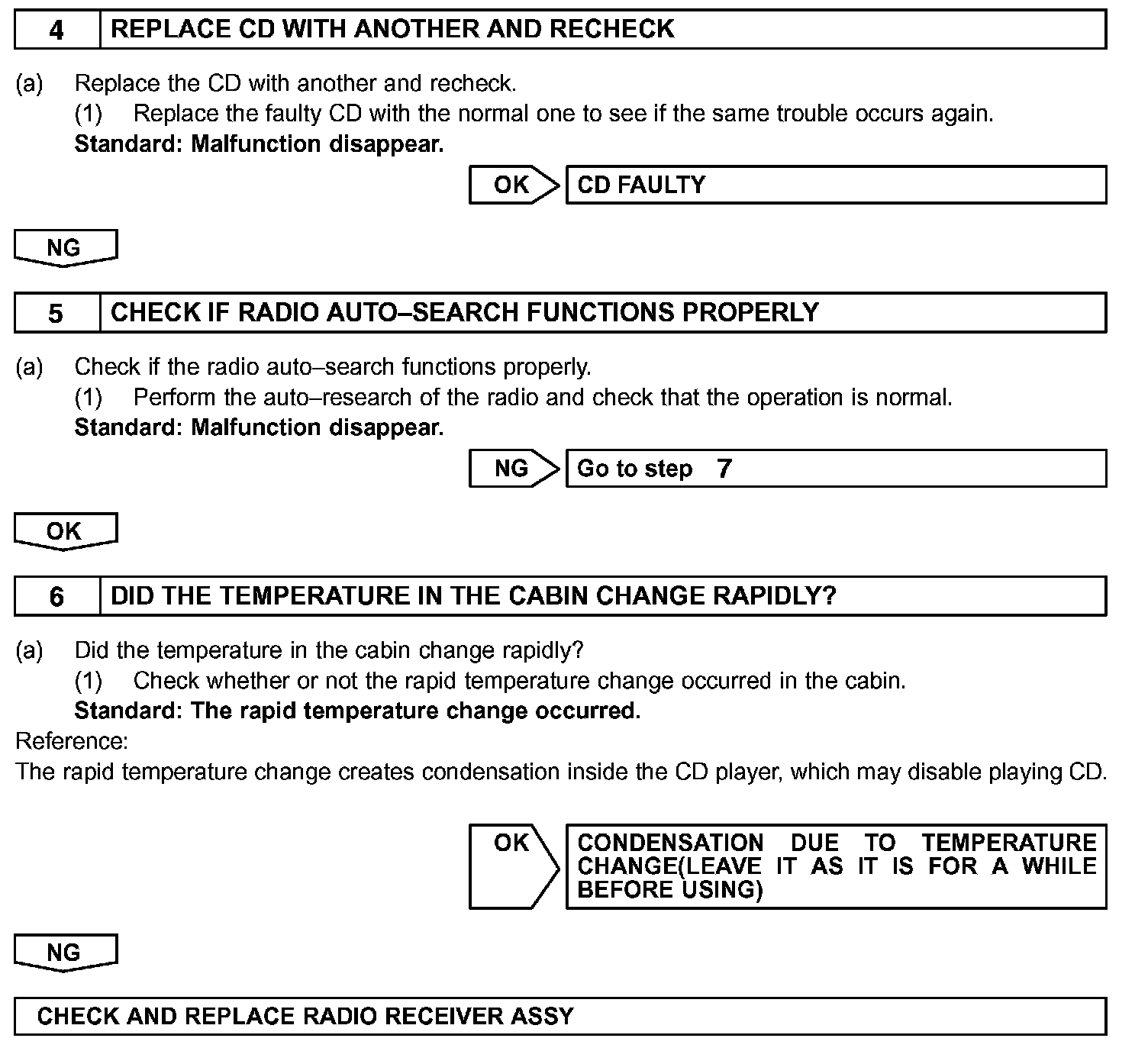

Steps 4 - 6:

Step 7:

INSPECTION PROCEDURE
