No Sound Is Heard From Speaker In All Modes
No Sound Is Heard From Speaker In All Modes

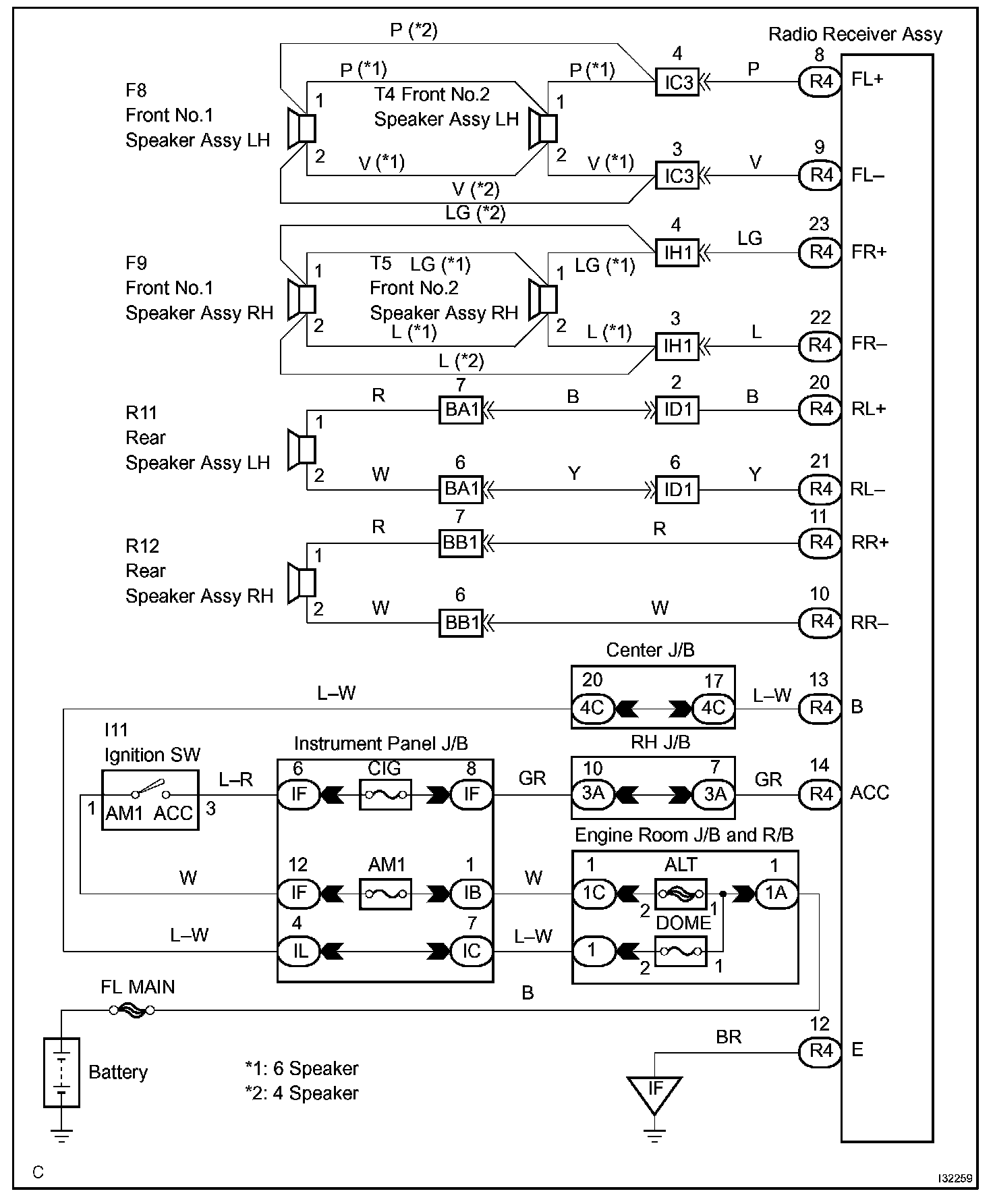

Wiring Diagram:

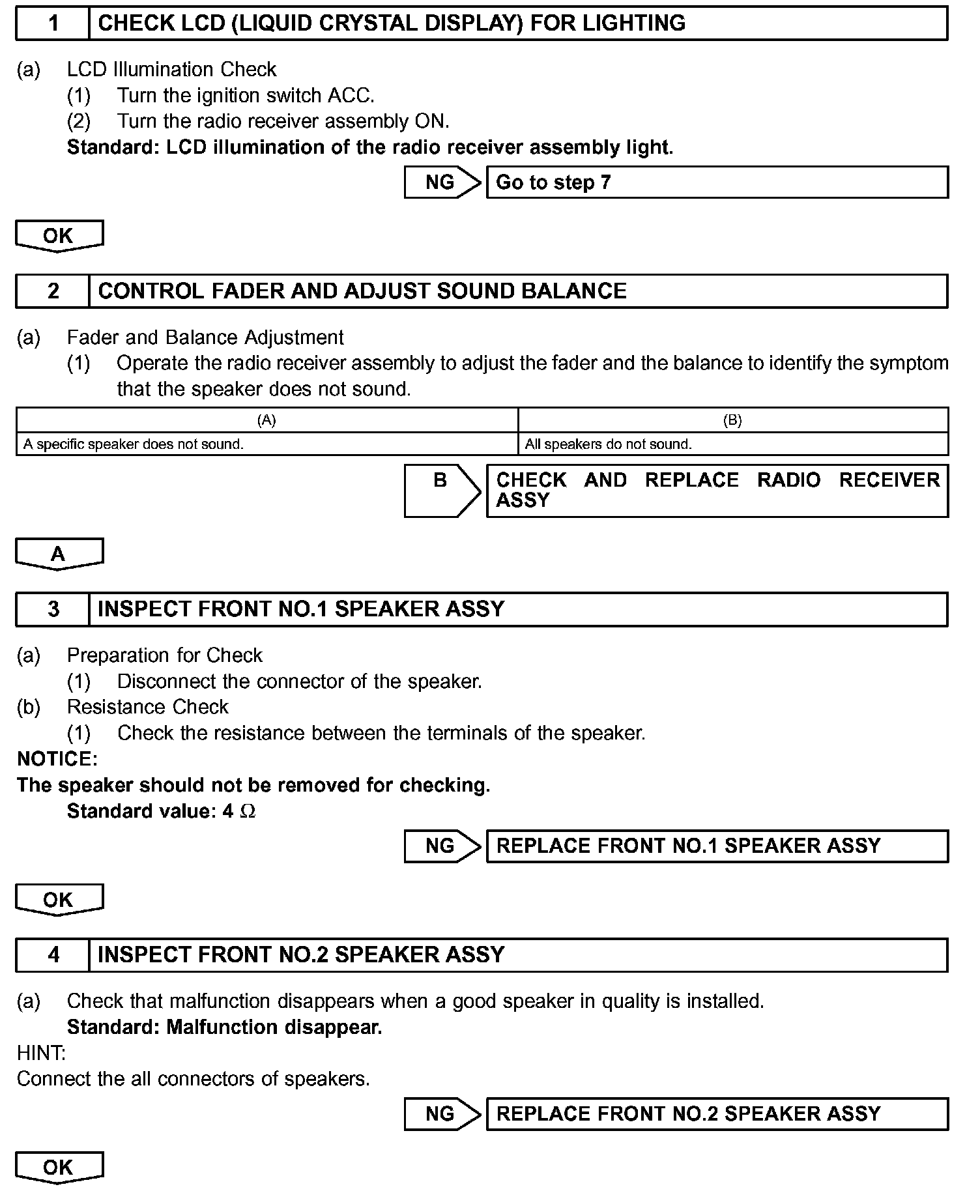

Step 1 - 4:

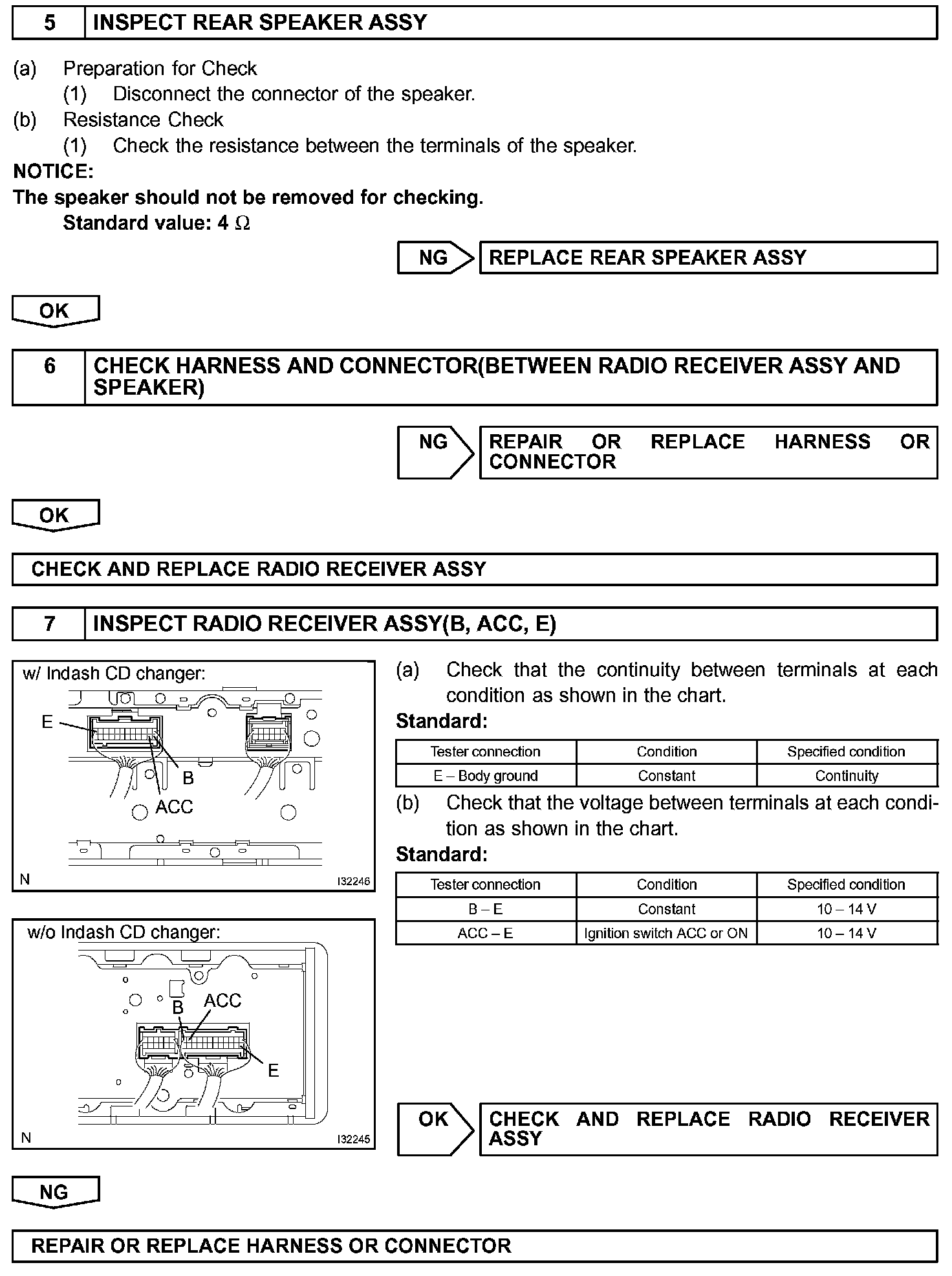

Step 5 - 7:
INSPECTION PROCEDURE
