Pressing Power Switch Does Not Start System
Pressing Power Switch Does Not Start System

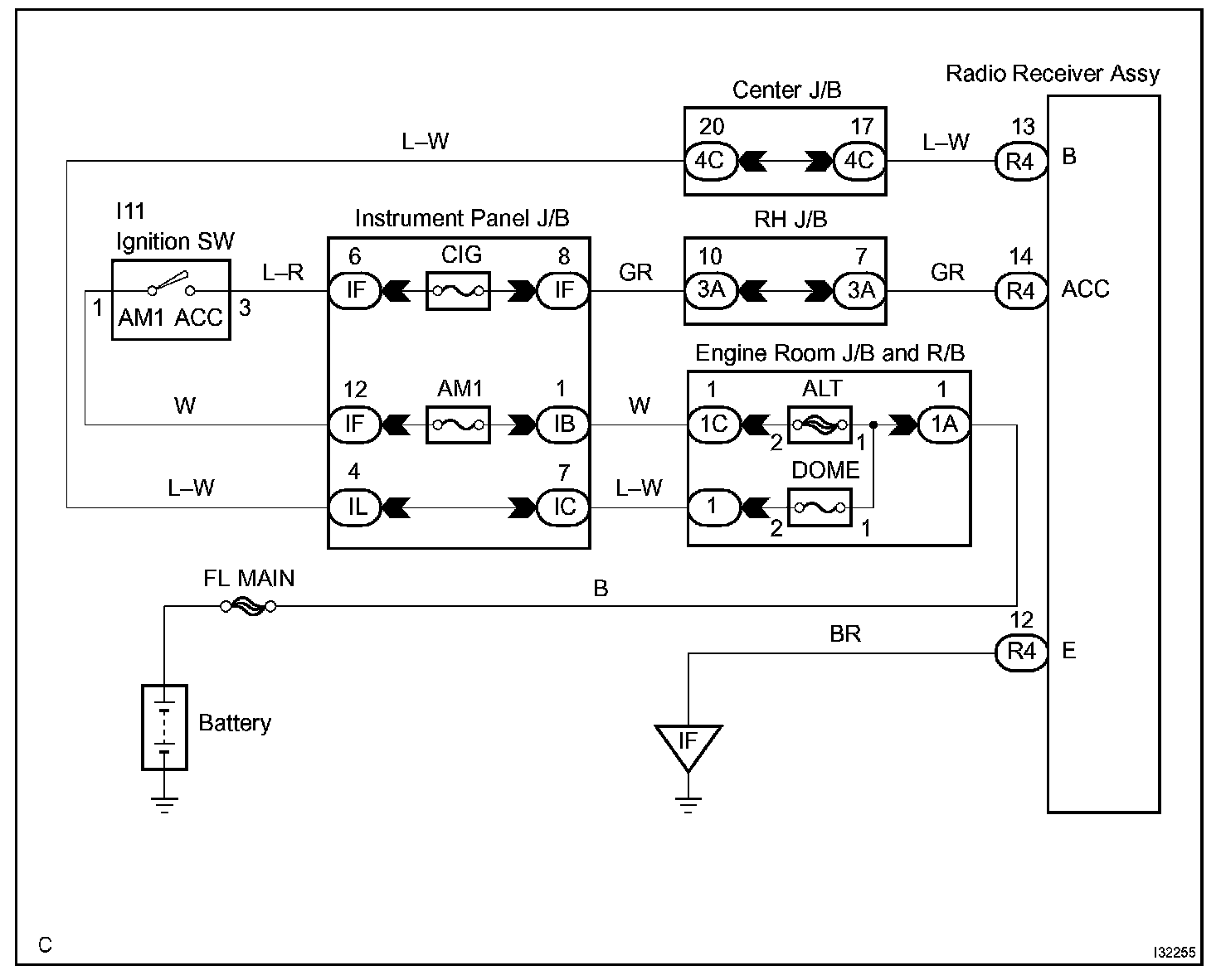

Wiring Diagram:

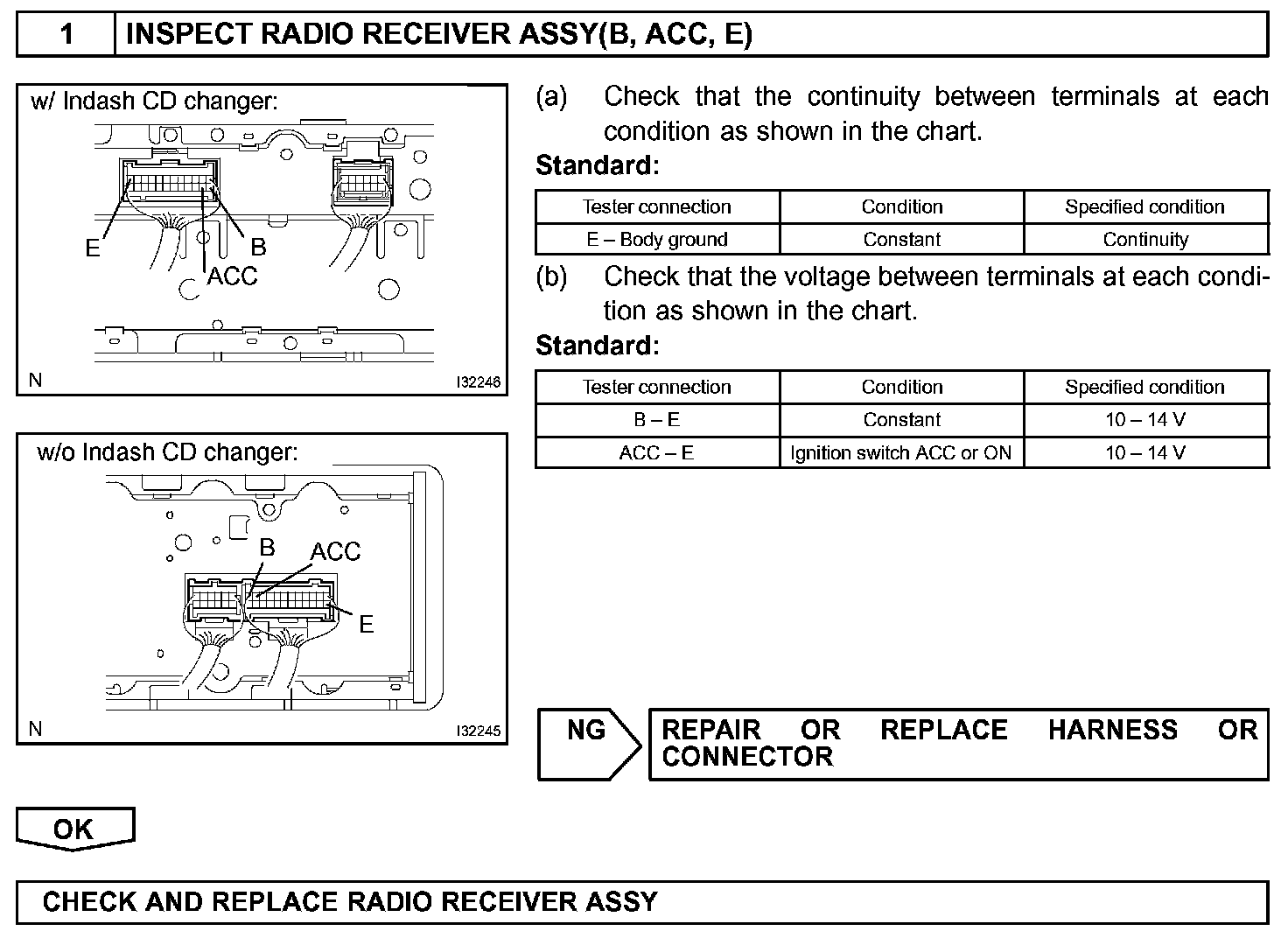

Step 1:
INSPECTION PROCEDURE
