Tc Terminal Circuit
CIRCUIT DESCRIPTIONConnecting terminals Tc and CG of the DLC3 causes the ECU to display the DTC by flashing the ABS warning light.

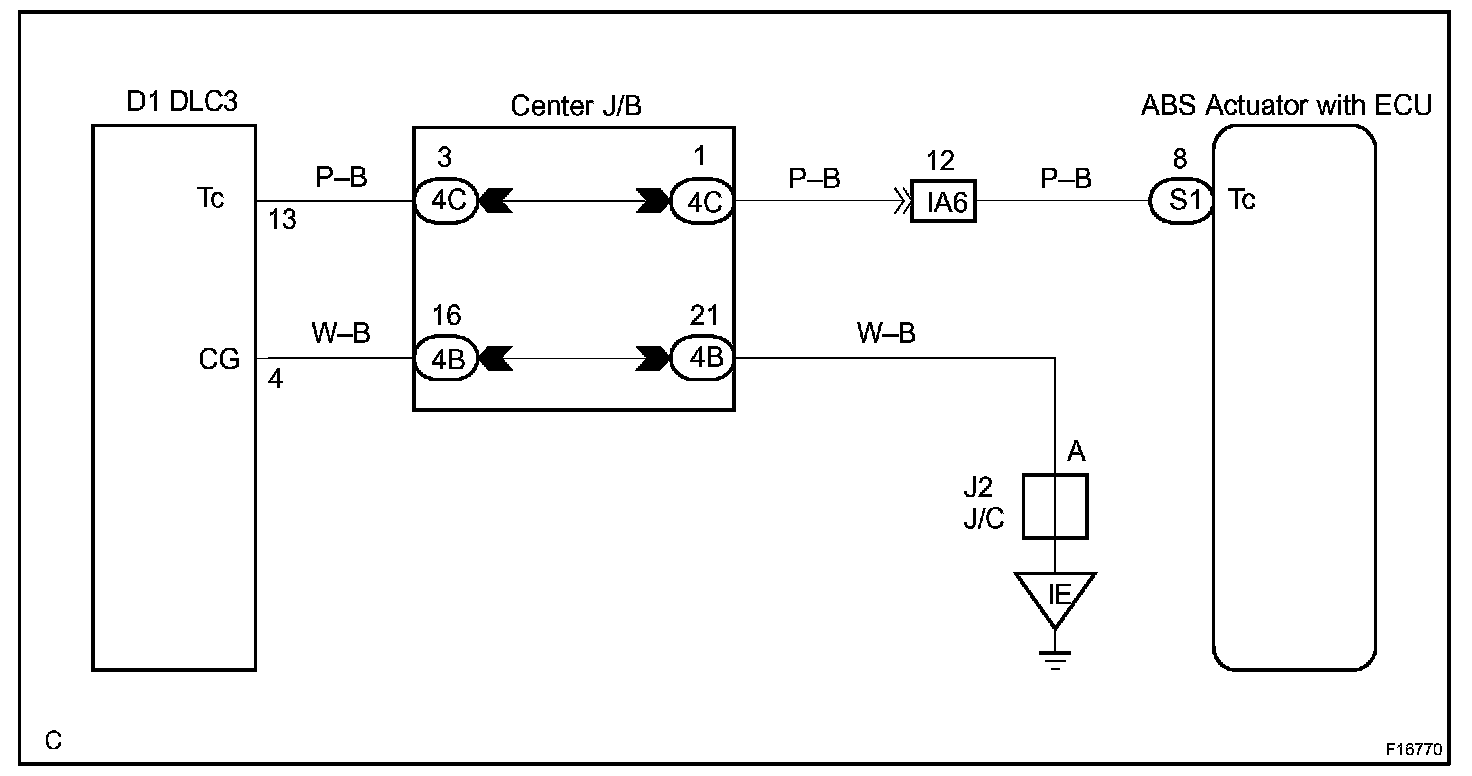

Wiring Diagram:

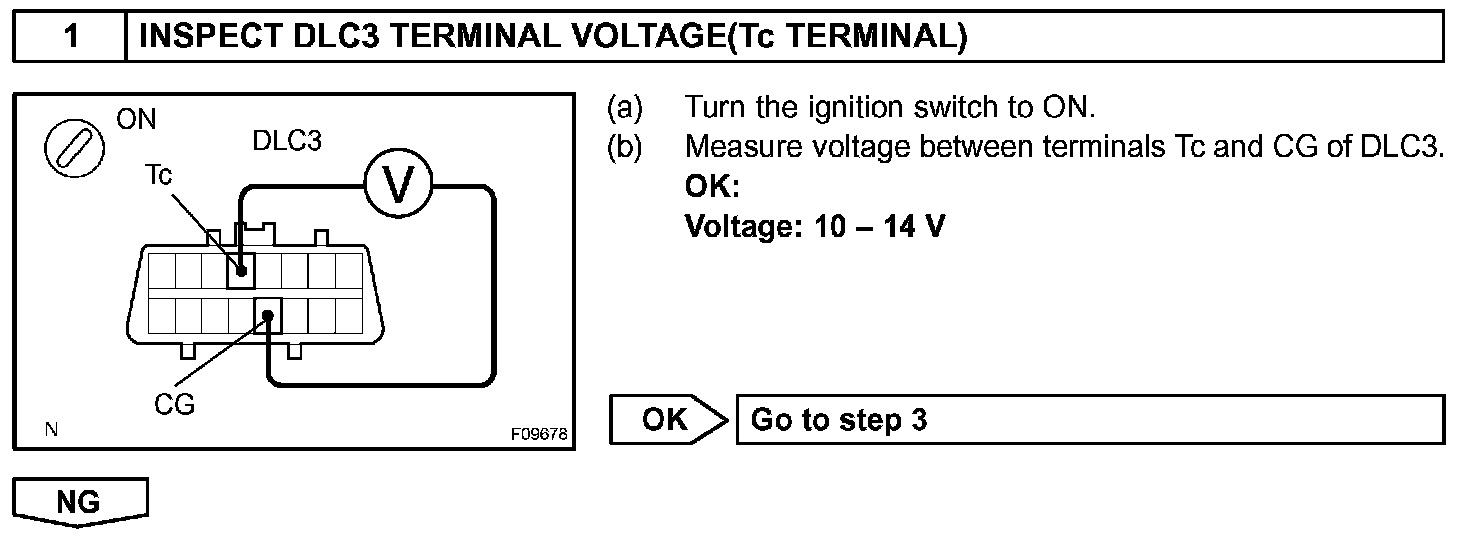

Step 1:

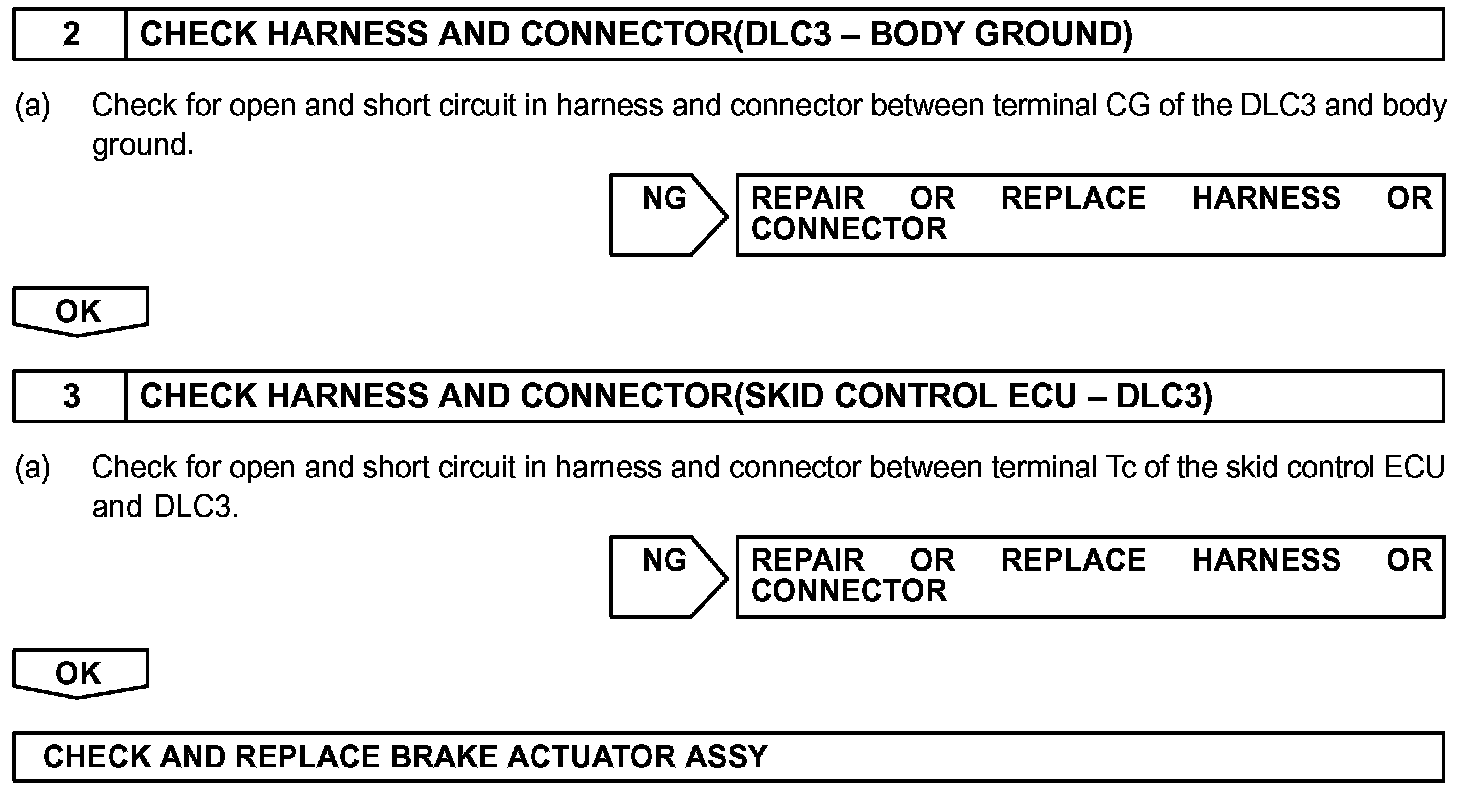

Step 2 - 3:
INSPECTION PROCEDURE
Connecting terminals Tc and CG of the DLC3 causes the ECU to display the DTC by flashing the ABS warning light.
INSPECTION PROCEDURE
