Home >> Toyota >> 2004 >> Matrix 2WD L4-1.8L (2ZZ-GE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Head Gasket

Cylinder Head Gasket

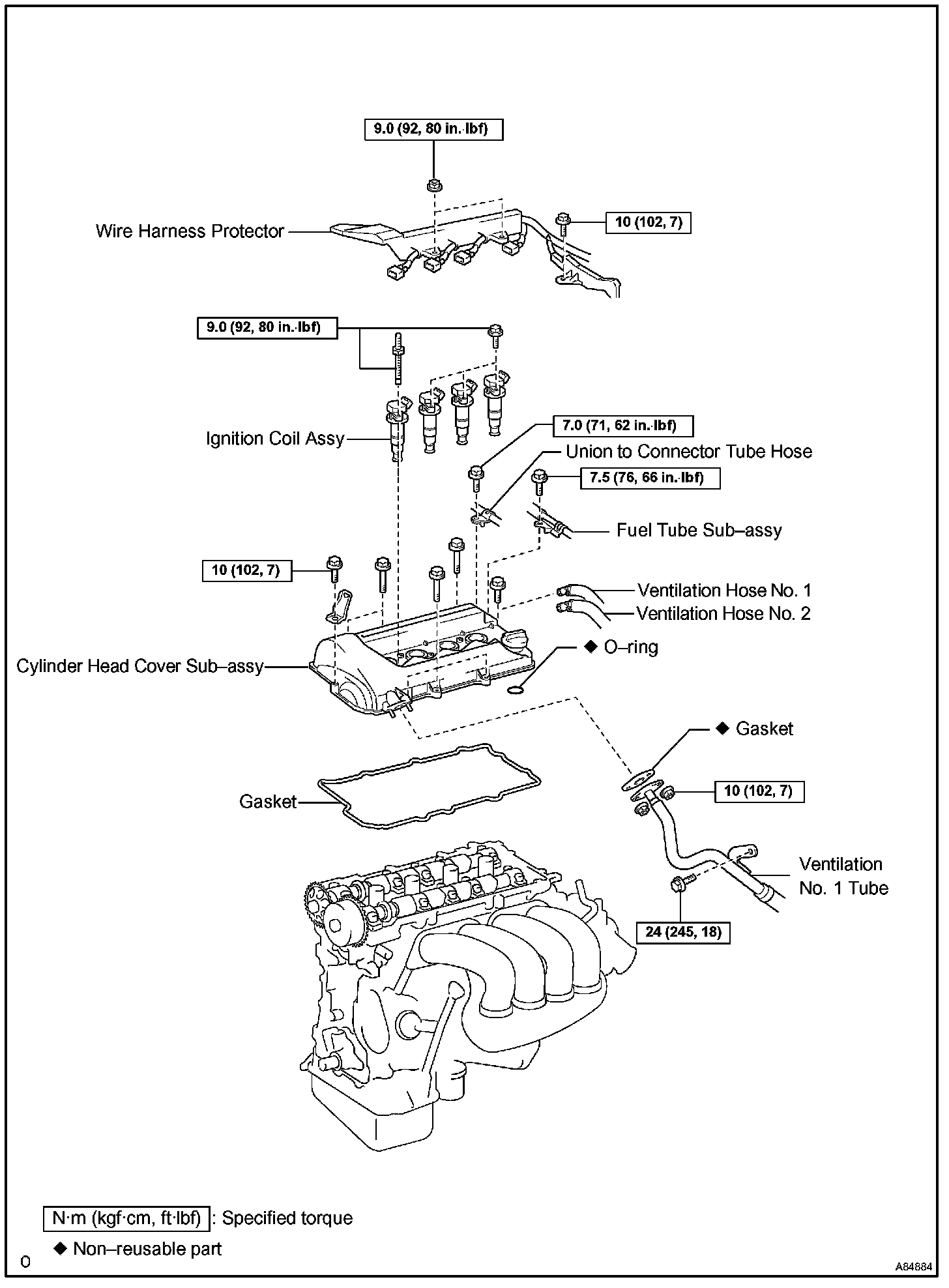

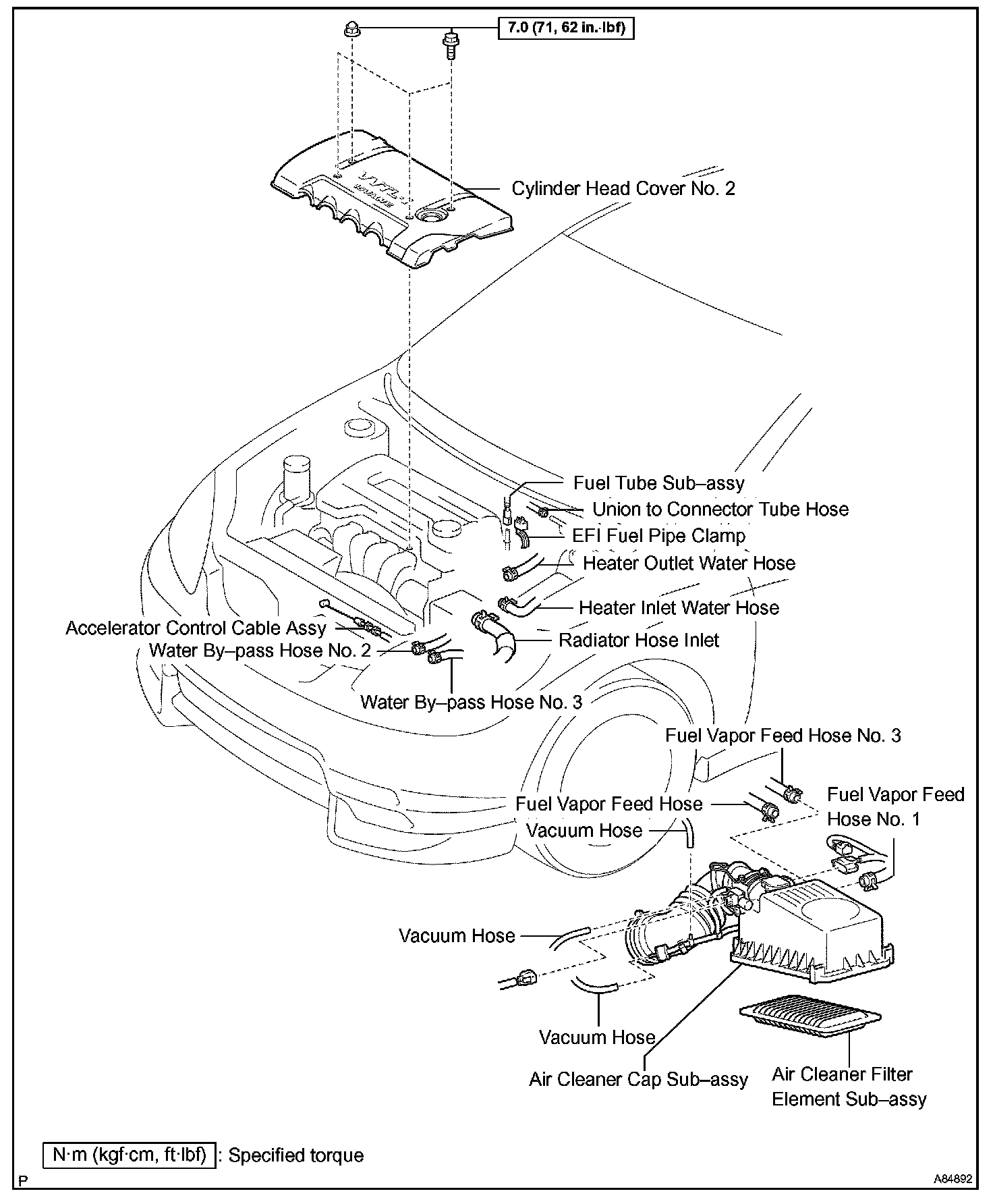

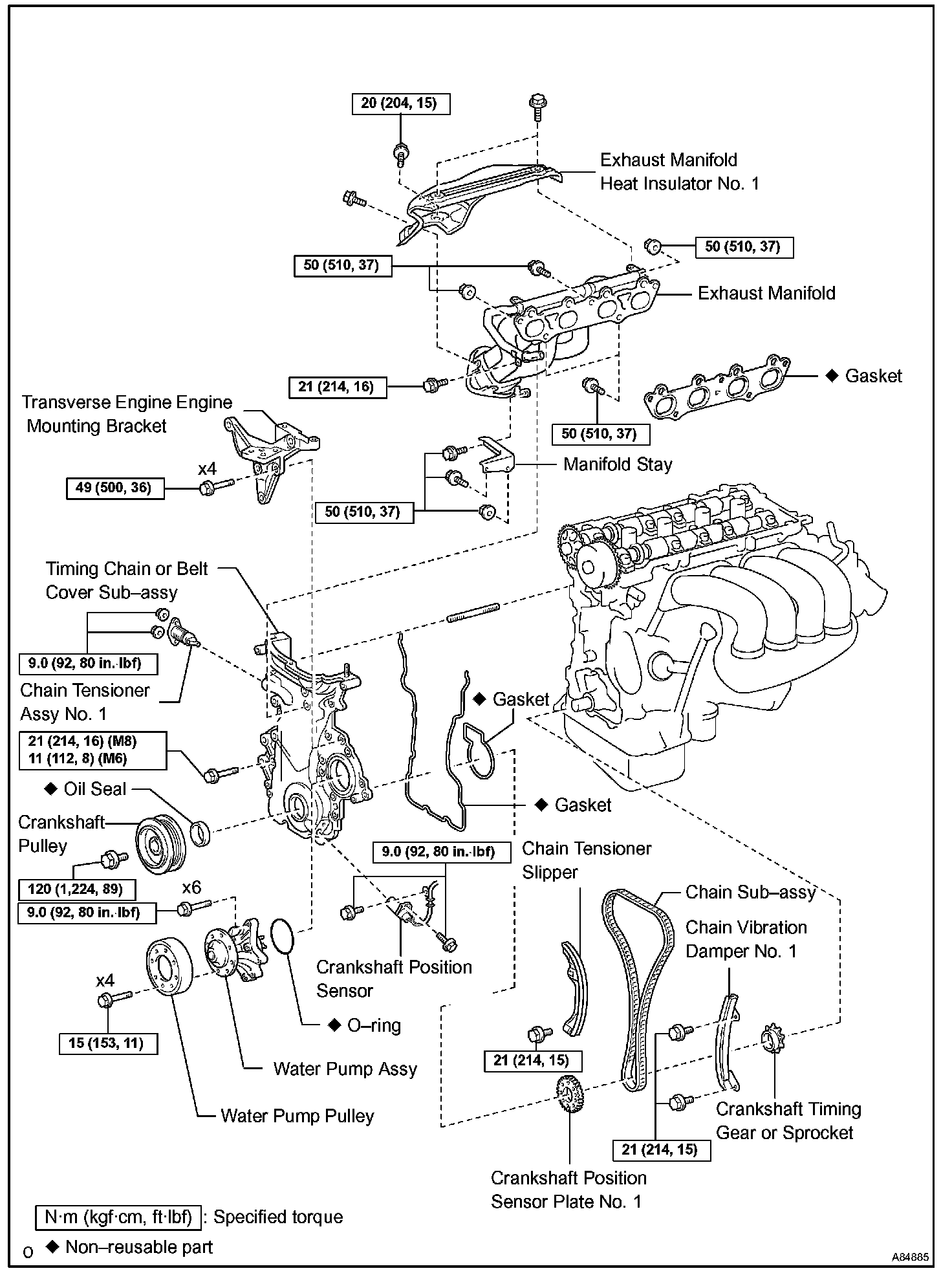

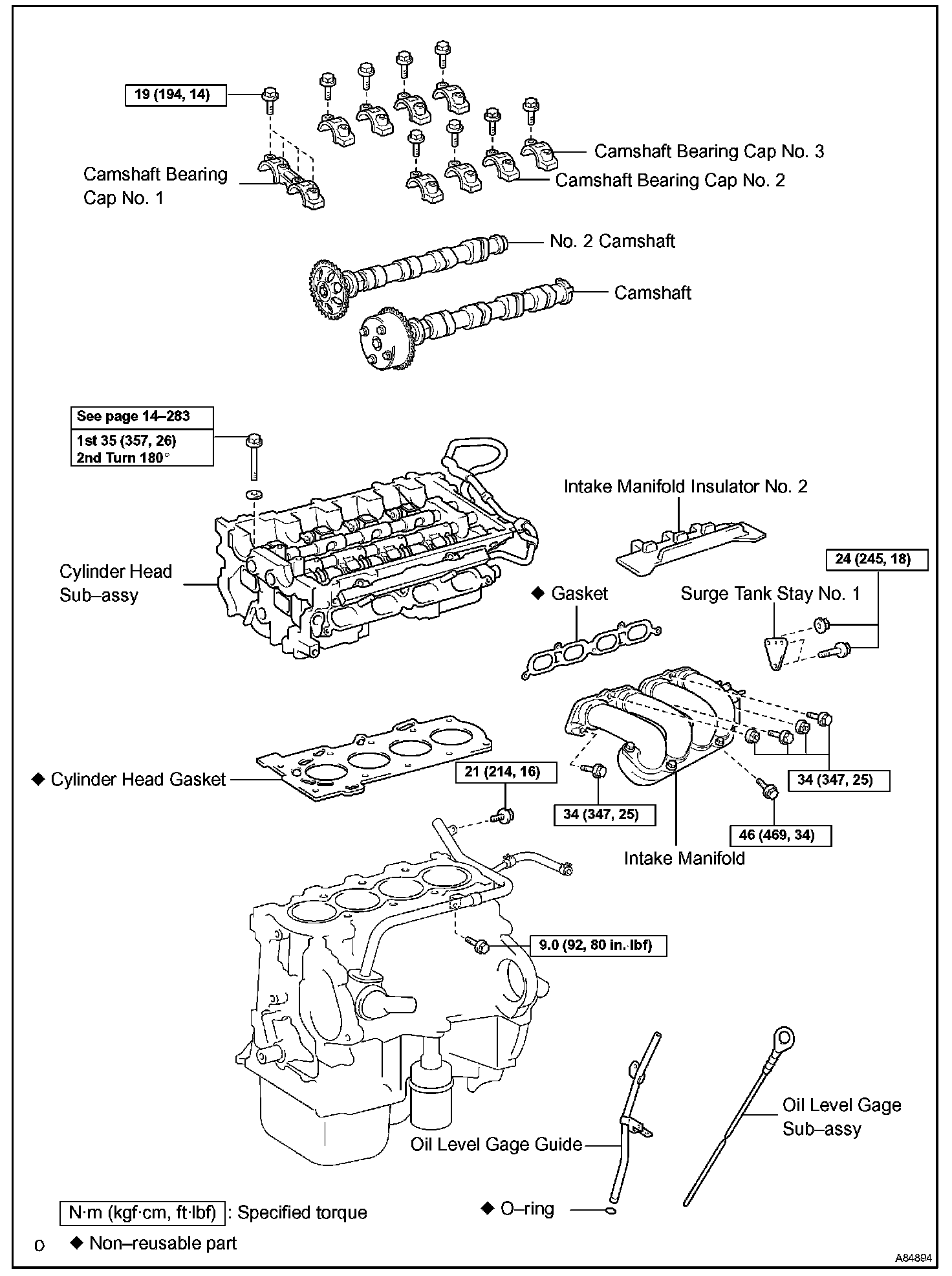

CYLINDER HEAD GASKET REPLACEMENT W/ RELATED COMPONENTS
