Rear Crankshaft Main Bearing Seal: Service and Repair
REPLACEMENT1. REMOVE MANUAL TRANSAXLE ASSY (M/T TRANSAXLE)
2. REMOVE CLUTCH COVER ASSY (M/T TRANSAXLE)
3. REMOVE CLUTCH DISC ASSY (M/T TRANSAXLE)
4. REMOVE FLYWHEEL SUB-ASSY (M/T TRANSAXLE)
a. Fix the crankshaft with SST, then remove the 8 bolts and flywheel.
SST 09213-70011 (09213-70020), 09330-00021
5. REMOVE ENGINE REAR OIL SEAL

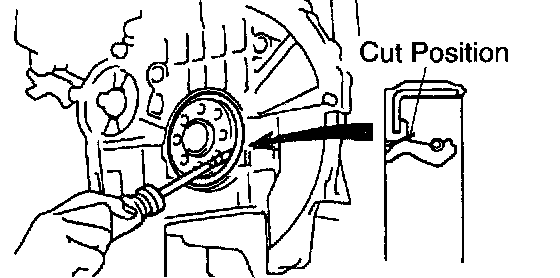

a. Using a knife, cut off the oil seal lip.
b. Using a screwdriver with taping its tip, pry out the oil seal.
NOTICE: After the removal, check if the crankshaft is not damaged. If there is, mend it with a sandpaper (#400).
6. INSTALL ENGINE REAR OIL SEAL
a. Apply MP grease to a new oil seal lip.
NOTICE: Keep the lip off foreign materials.

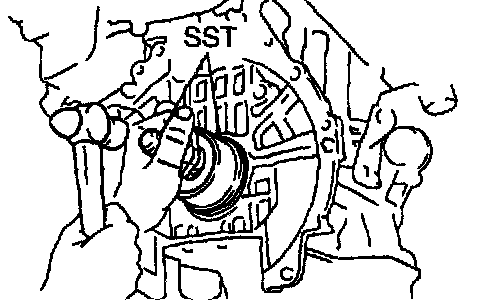

b. Using SST, tap in the oil seal until its surface is flush with the rear oil seal retainer edge.
SST 09223-15020, 09950-70010 (09951-07100)
NOTICE: Wipe off extra grease on the crankshaft.
7. INSTALL FLYWHEEL SUB-ASSY (M/T TRANSAXLE)
a. Fix the crankshaft with SST.
SST 09213-70011 (09213-70020), 09330-00021
b. Clean the bolt and bolt hole.
c. Apply adhesive to the bolts.
Adhesive: Part No. 09330-00070, THREE BOND or equivalent.

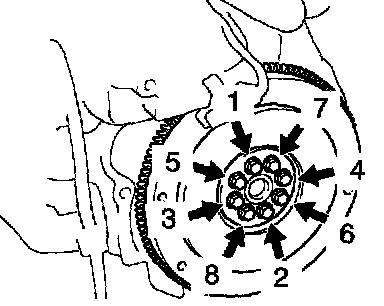

d. Install and uniformly tighten the 8 bolts, in several passes, in the sequence shown.
Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)
e. Mark the bolts with paint.

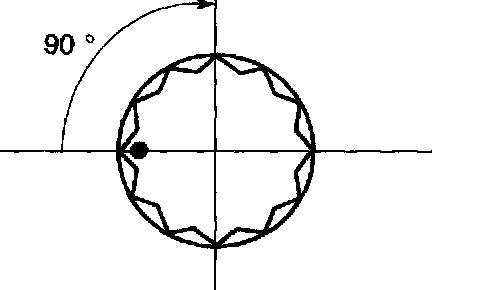

f. Retighten the bolts by an additional 90°.
g. Check that the point marked bolts are moved at 90° angle.
8. INSTALL CLUTCH DISC ASSY (M/T TRANSAXLE)
9. INSTALL CLUTCH COVER ASSY (M/T TRANSAXLE)
10. INSTALL MANUAL TRANSAXLE ASSY (M/T TRANSAXLE)
