Engine Torque and Sequence

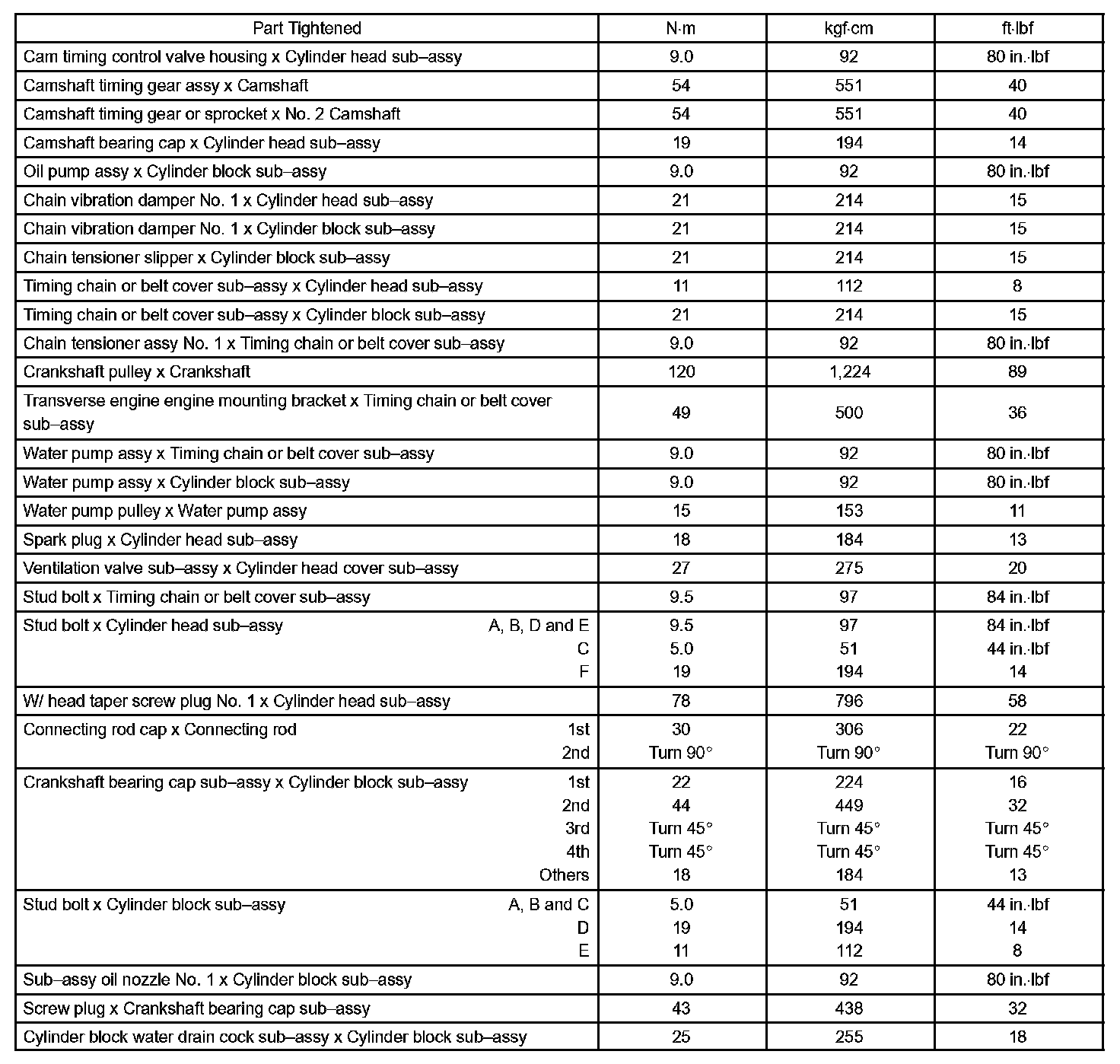

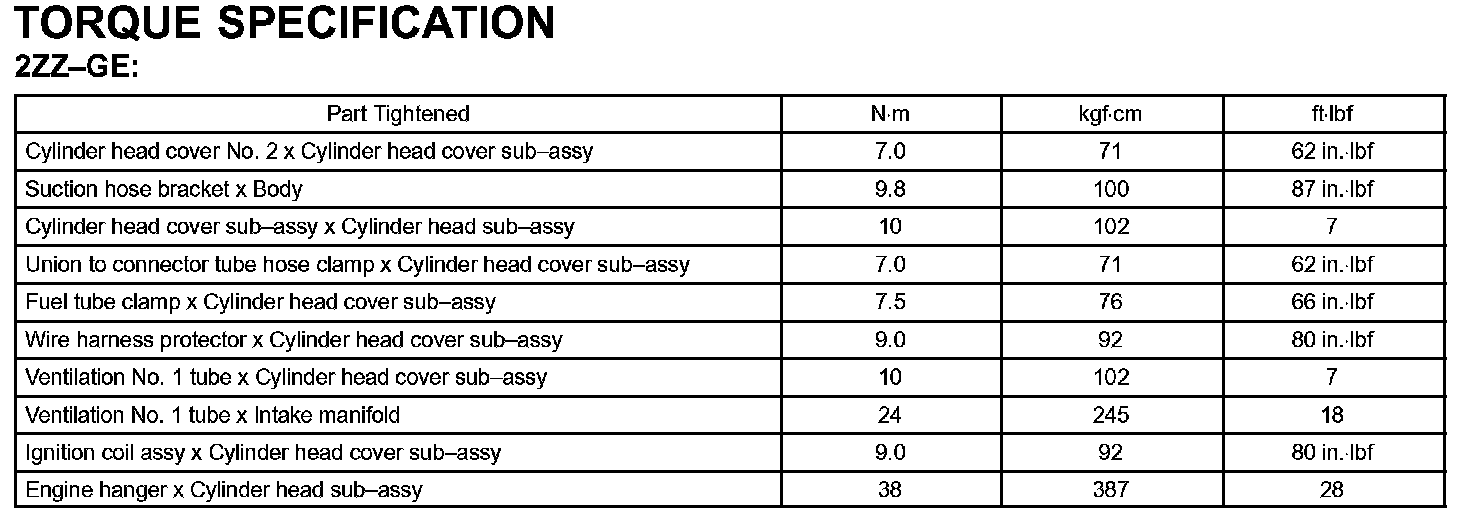

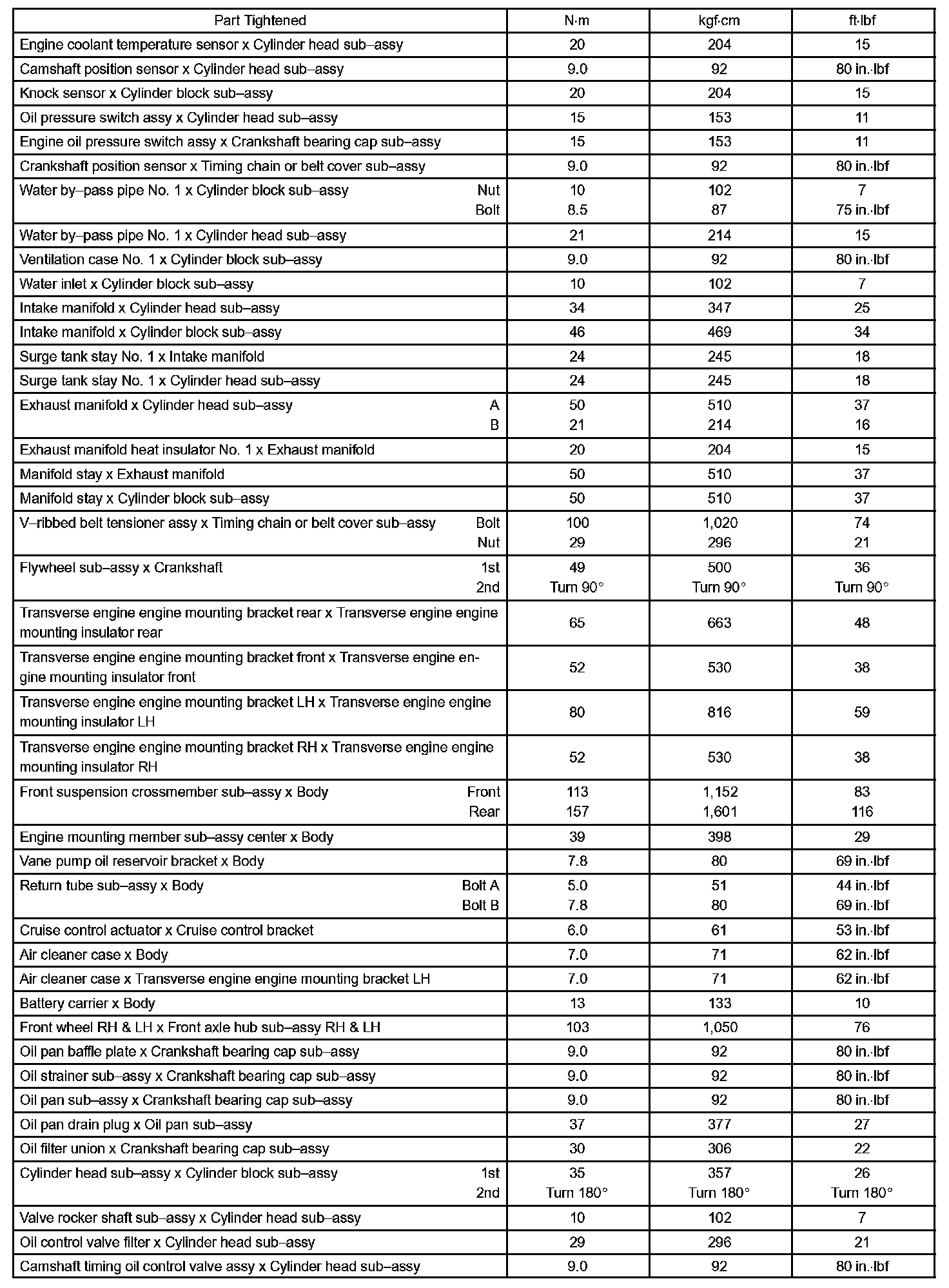

Engine Mechanical - Torque Specification Part 1:




Engine Mechanical - Torque Specification Part 2:




Engine Mechanical - Torque Specification Part 3:
