Malfunction In Water Temperature Receiver Gauge

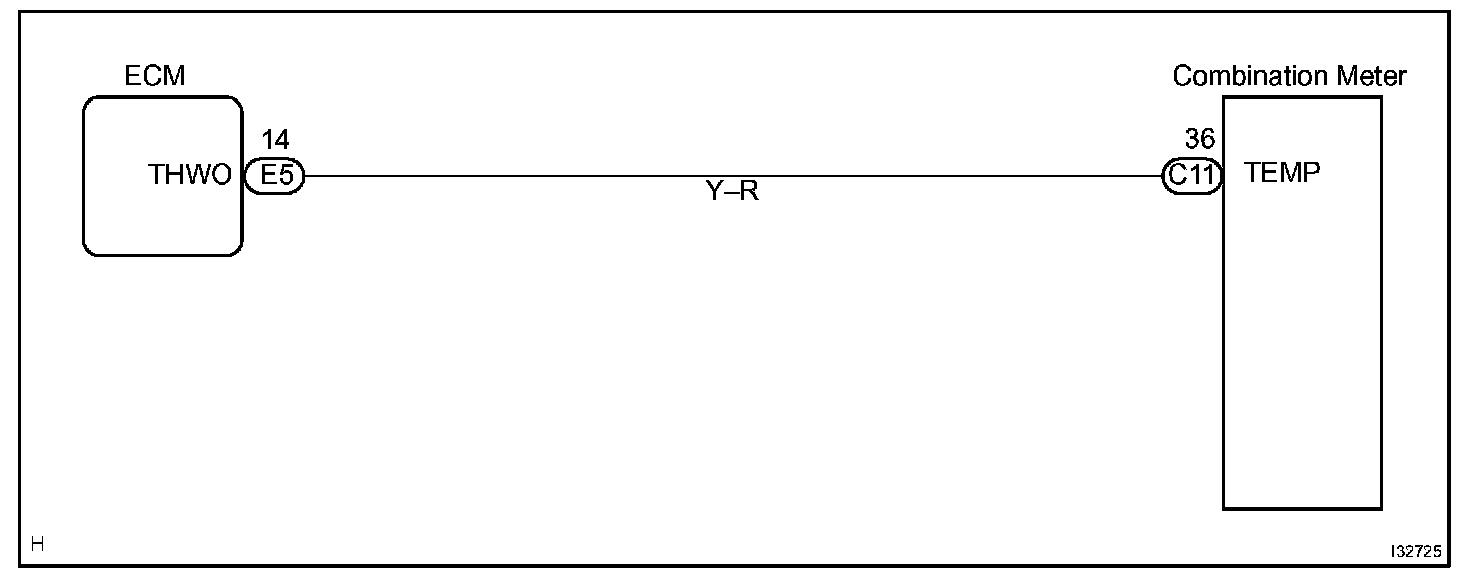

Wiring Diagram:

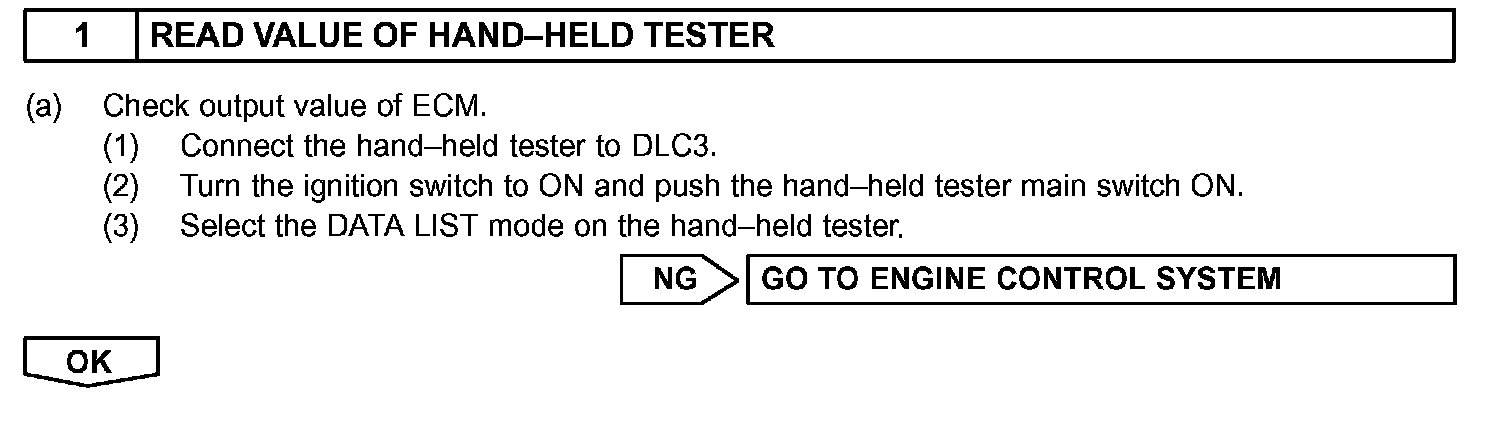

Step 1:

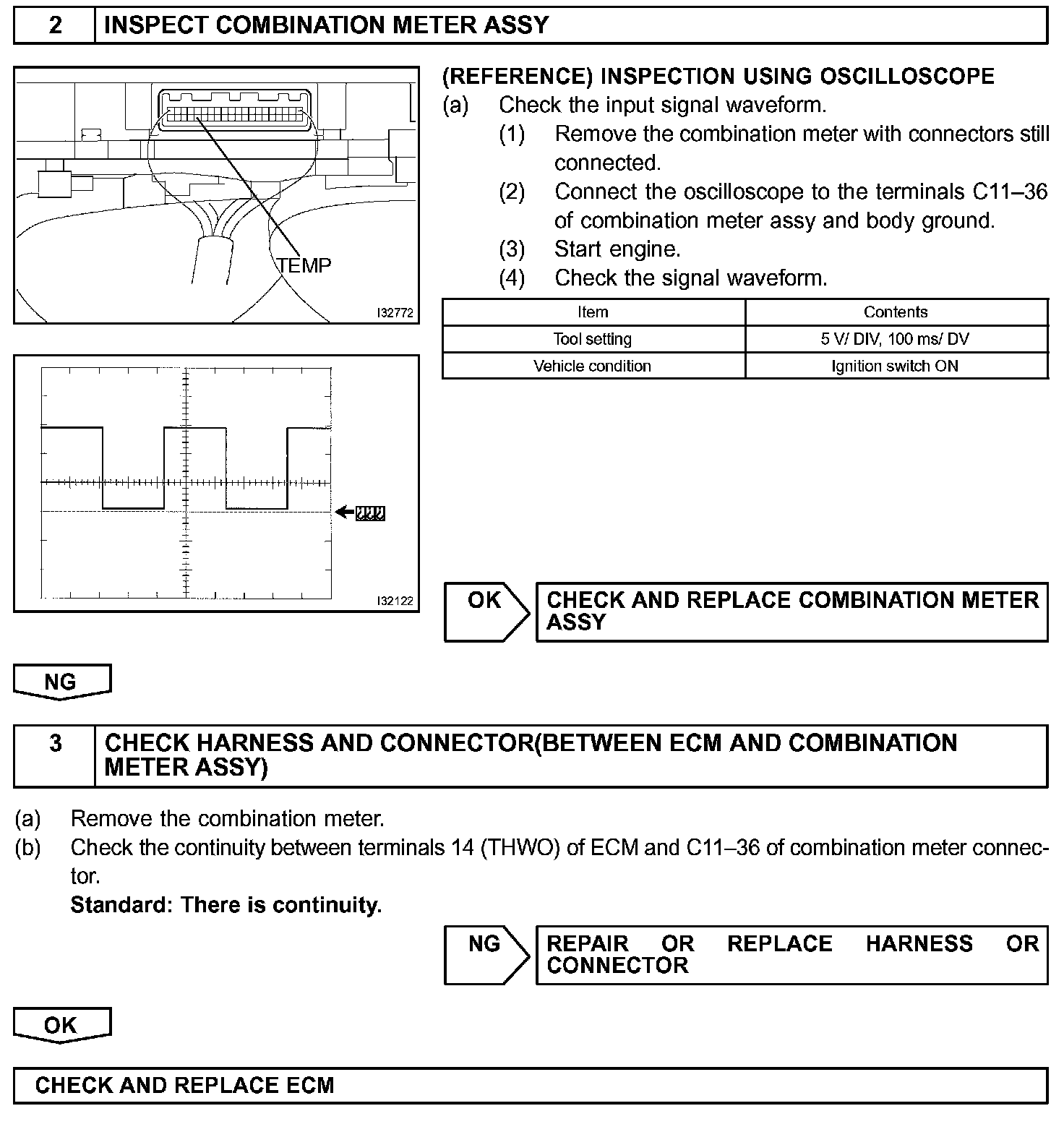

Step 2 - 3:




INSPECTION PROCEDURE
