Warning Buzzer Does Not Sound (Key/Light Reminder Warning)
Warning Buzzer Does Not Sound (Key/Light Reminder Warning)
Warning Buzzer Does Not Sound (Key Reminder Warning, Light Reminder Warning)

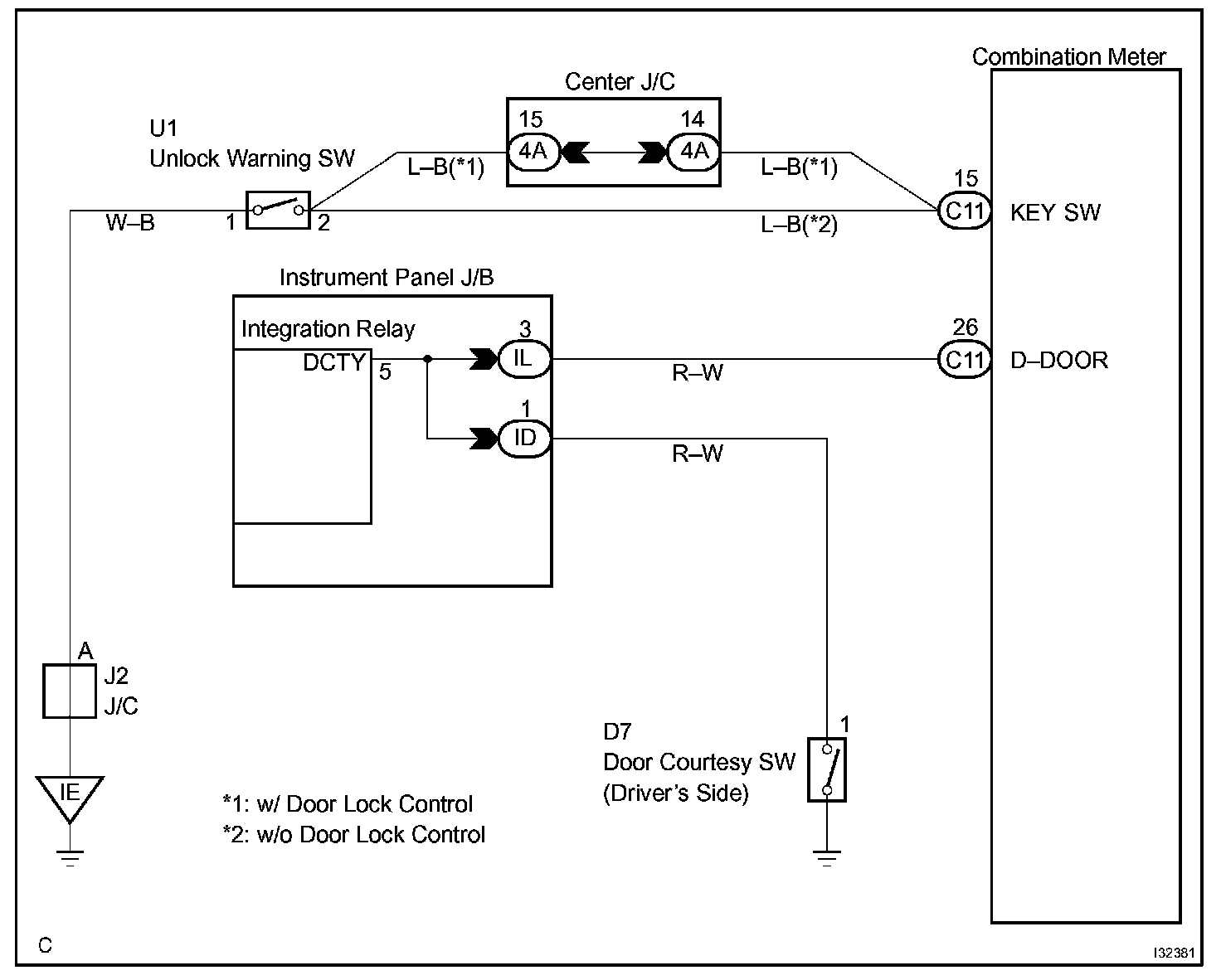

Wiring Diagram:

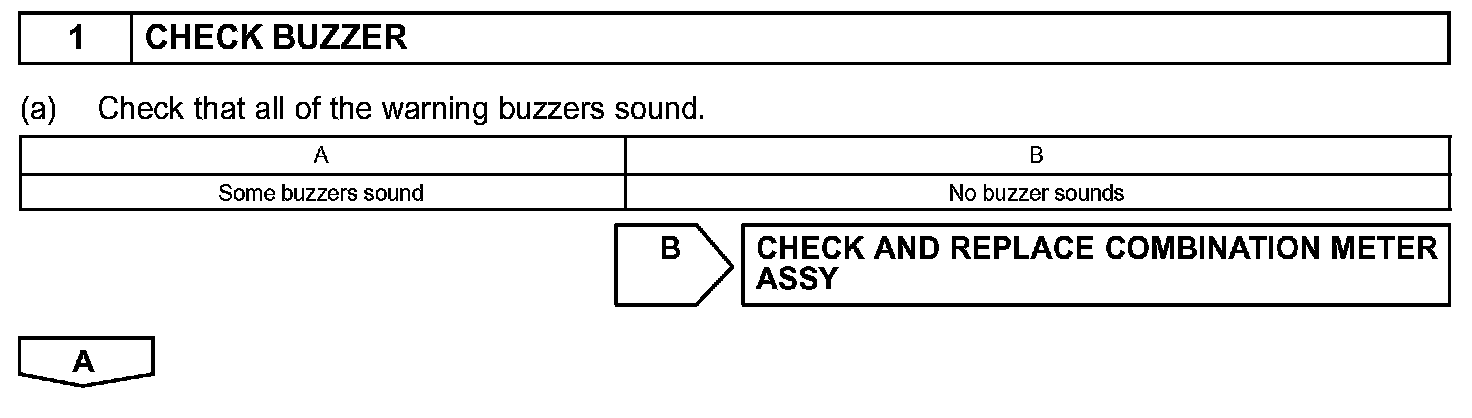

Step 1:

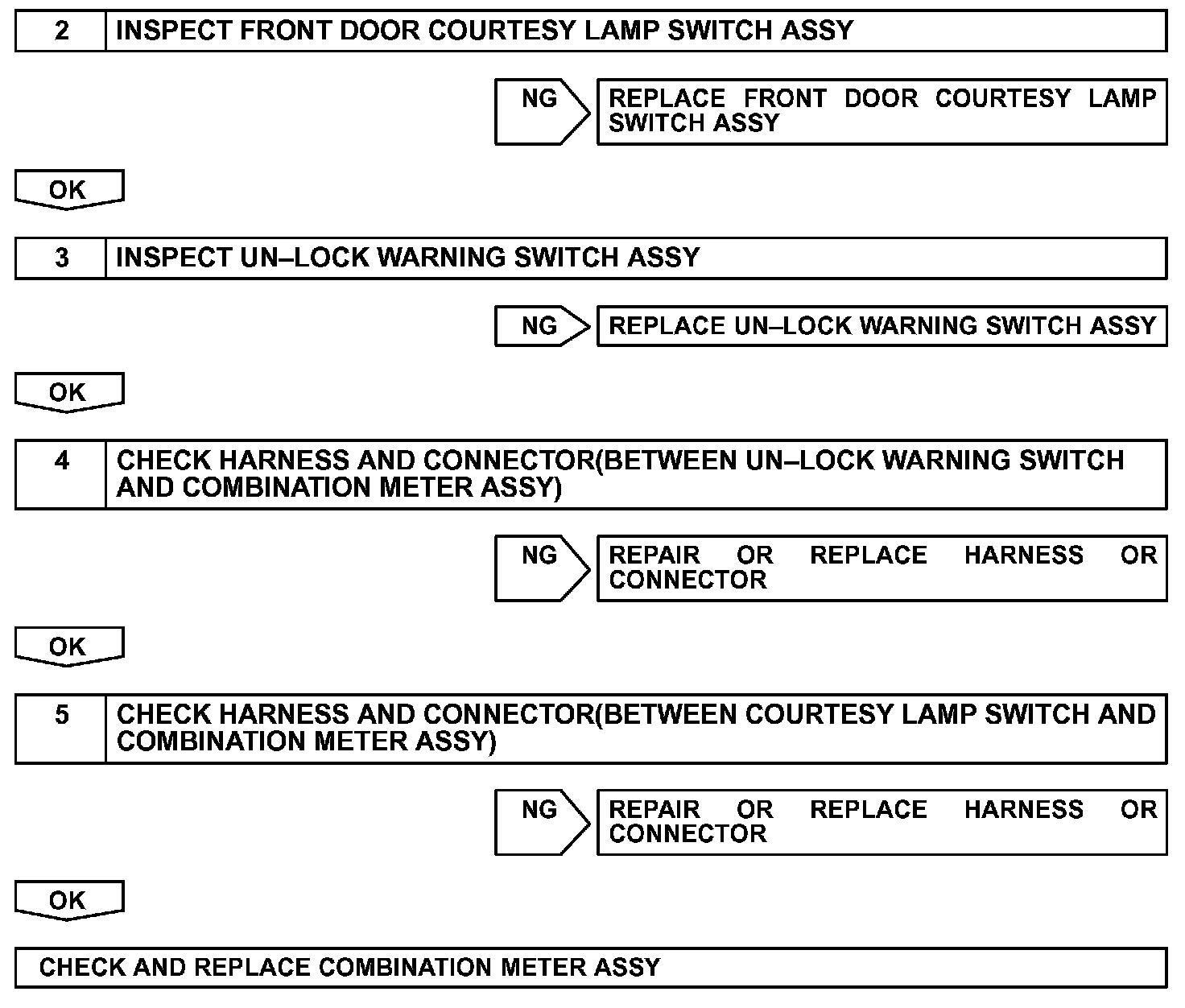

Step 2 - 5:
INSPECTION PROCEDURE
