Voltage Inverter
VOLTAGE INVERTER ASSYREPLACEMENT
1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE FRONT SEAT (DRIVER SEAT POSITION)

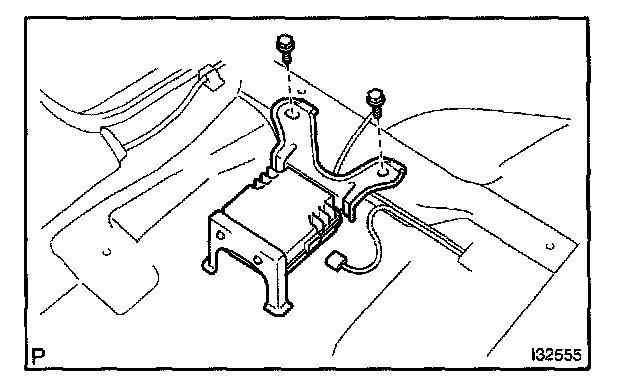

3. REMOVE VOLTAGE INVERTER ASSY
a. Remove the 2 bolts.
b. Fold the floor carpet to the inside.
c. Disconnect the connector.
d. Remove the voltage inverter assy.
4. INSTALL VOLTAGE INVERTER ASSY
a. Install the voltage inverter assy.
b. Connect the connector.
c. Fold the floor carpet to the inside.
d. Tighten the 2 bolts.
Torque: 7.0 N.m (71 kgf.cm 62 in.lbf)

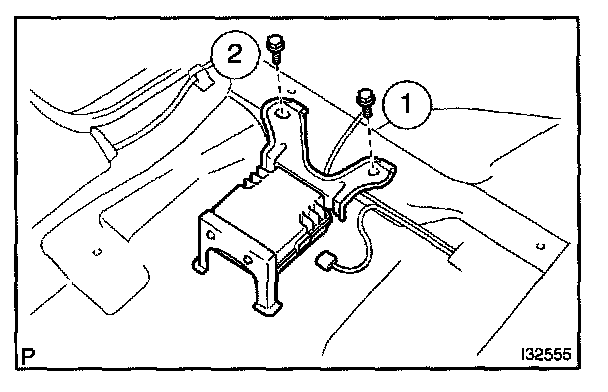

NOTE: Tighten the bolts in following order shown in the illustration to install the voltage inverter assy.
5. INSTALL FRONT SEAT (DRIVER SEAT POSITION)
