Toyota
>>
2004
>>
Matrix 2WD L4-1.8L (2ZZ-GE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Specifications
>>
Electrical Specifications
Electrical Specifications

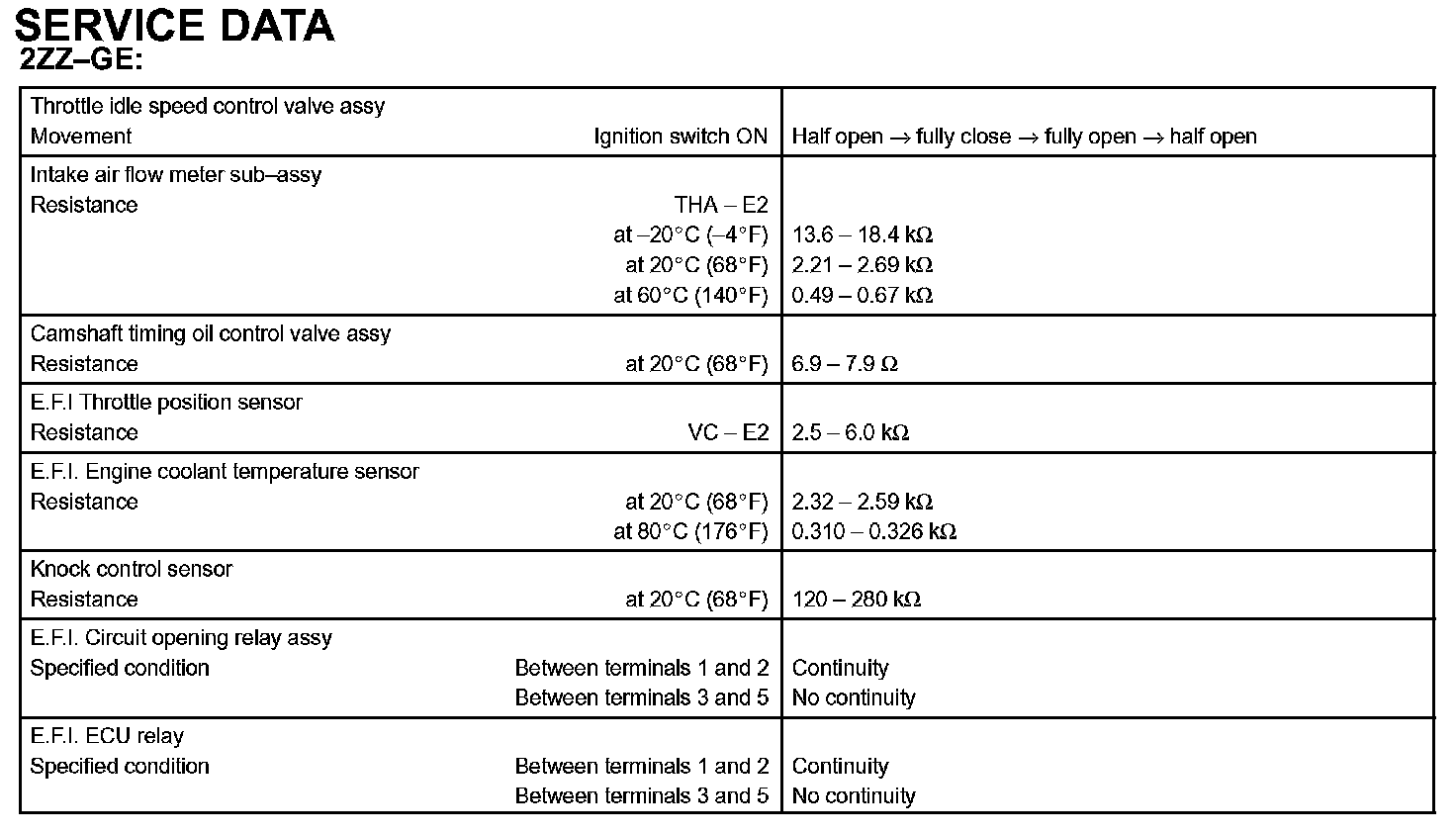

Engine Control System - Service Data:

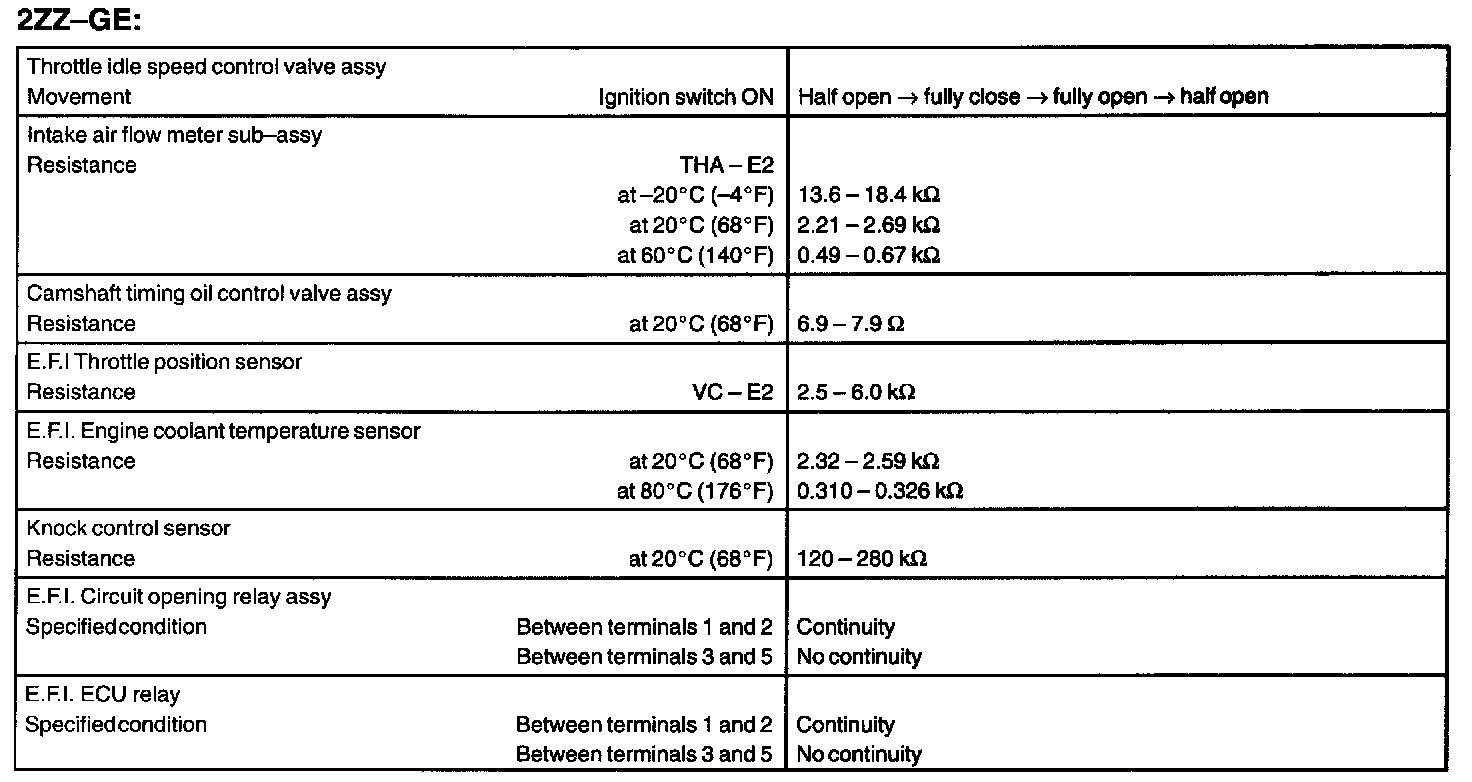

Engine Control System - Service Data:
