Air Switching Valve

INSPECT AIR SWITCHING VALVE ASSY







Check the operation.

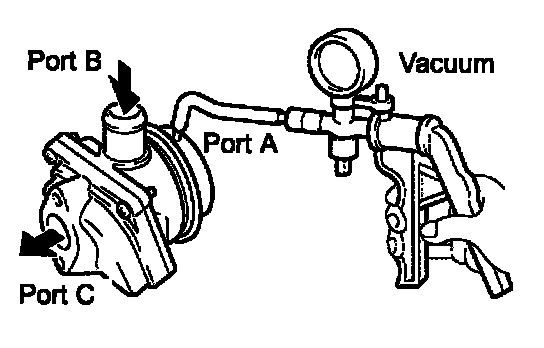

Apply vacuum 28 kPa (0.286 kgf/cm2, 4.061 psi) to port A, then blow air into port B. Check that air is discharged from port C.

If the operation is not as specified, replace the air switching valve.
