Air Injection Pump: Testing and Inspection

INSPECT AIR PUMP ASSY







Check the operation.

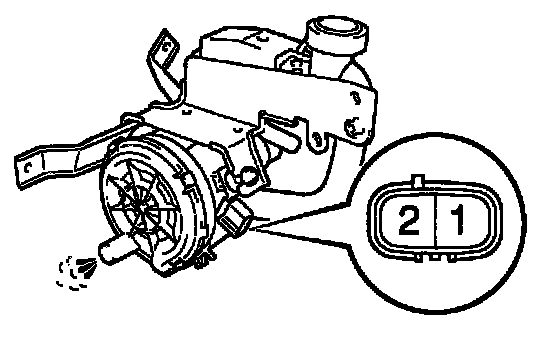

1. Connect the positive (+) lead from the battery terminal 1 and the negative (-) lead from the battery to terminal 2.
2. Check that the air flows.

If the operation is not as specified, replace the air pump.
