Diesel Data: Automotive Repair
Home >> Toyota >> 2004 >> Matrix 2WD L4-1.8L (2ZZ-GE) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Specifications >> Electrical Specifications

Electrical Specifications

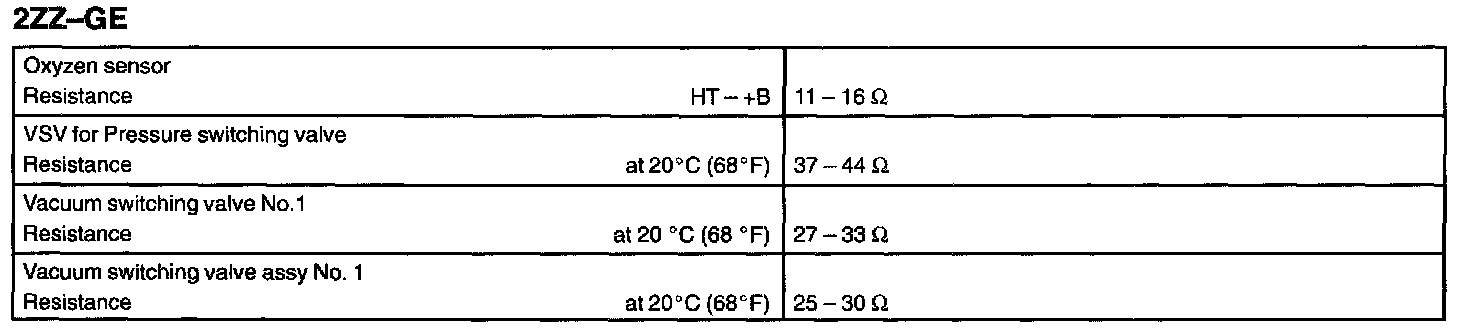

Emission Control - Service Data:

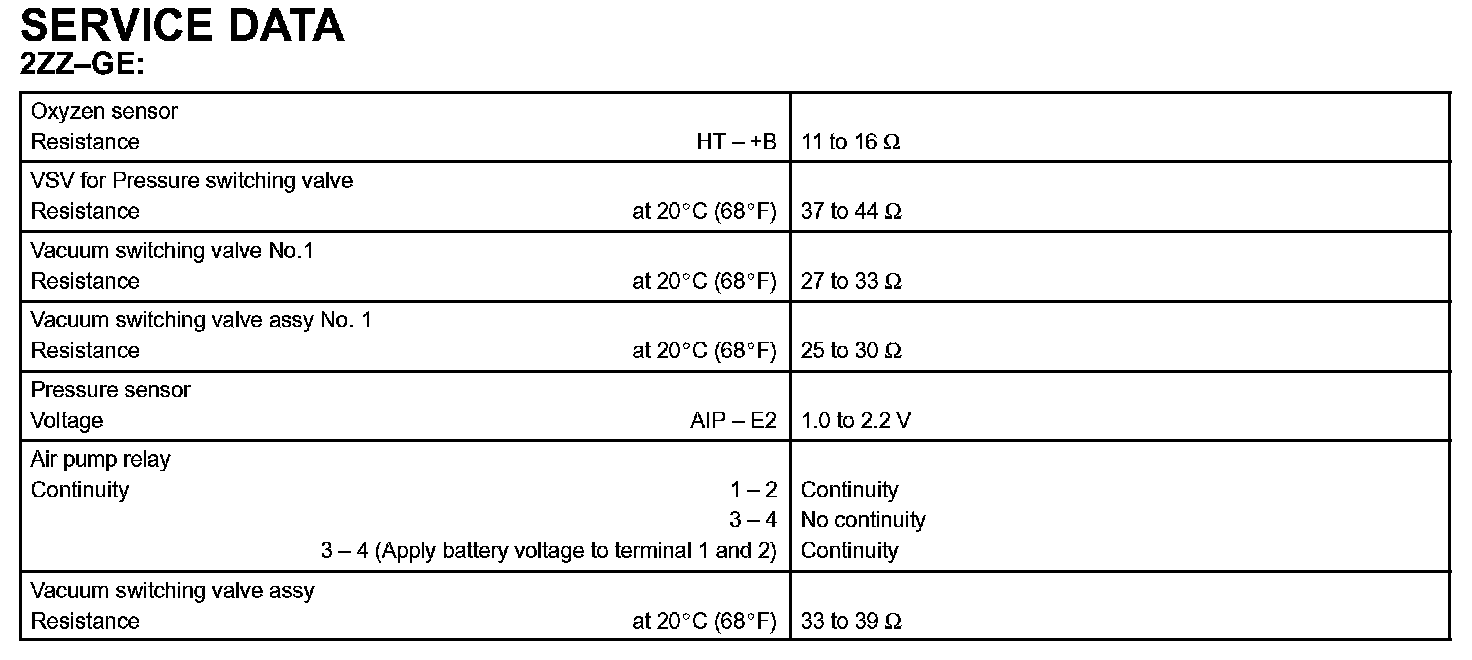

Emission Control - Service Data:
