Power Window Relay: Testing and Inspection

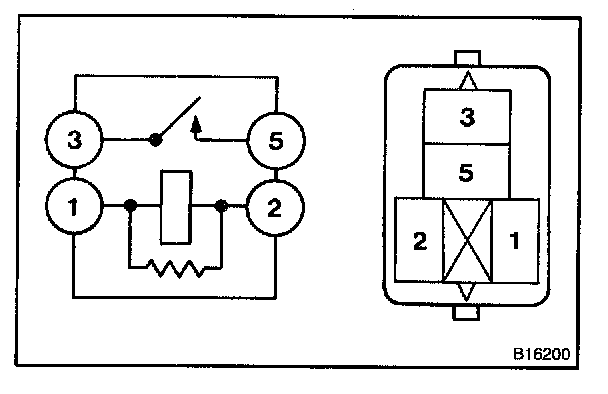

INSPECT RELAY (Making: P/W)
a.
Remove the
power window relay
from the instrument panel J/B.
b.

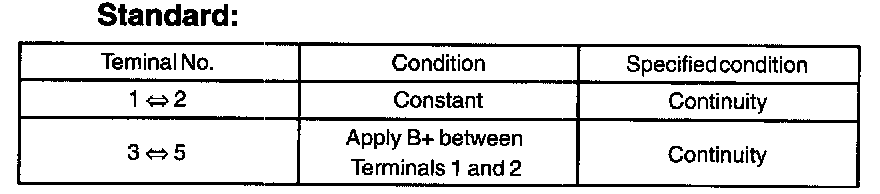

Inspect the
power window relay
.
If the result is not as specified, replace the relay.
