Radio Receiver Assy

RADIO RECEIVER ASSY

REPLACEMENT

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER




2. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET
a. Remove the 4 screws.




b. Disconnect the clamp from the radio bracket No.2.
c. Disconnect the connectors, then remove the radio receiver assembly w/bracket.

3. REMOVE RADIO BRACKET NO.1

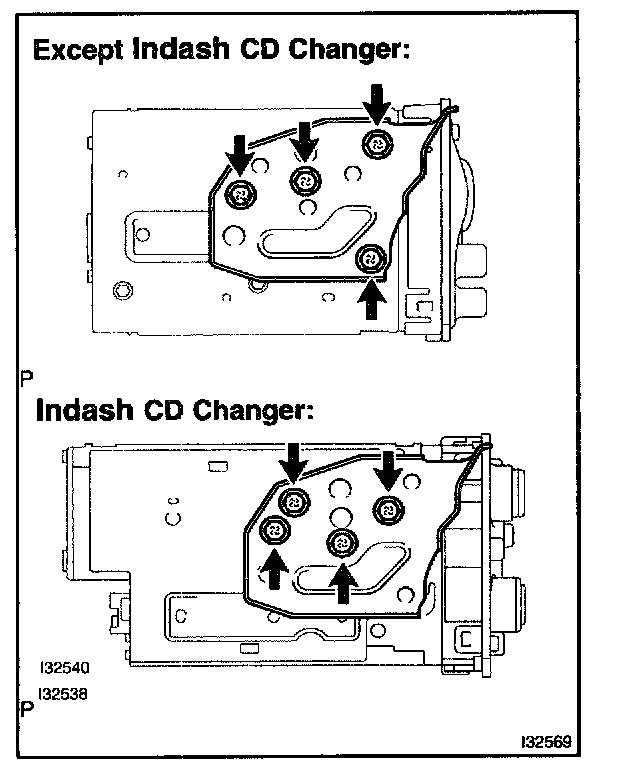

a. Except Indash CD Changer:
Remove the 4 screws and radio bracket No.1.




b. Indash CD Changer:

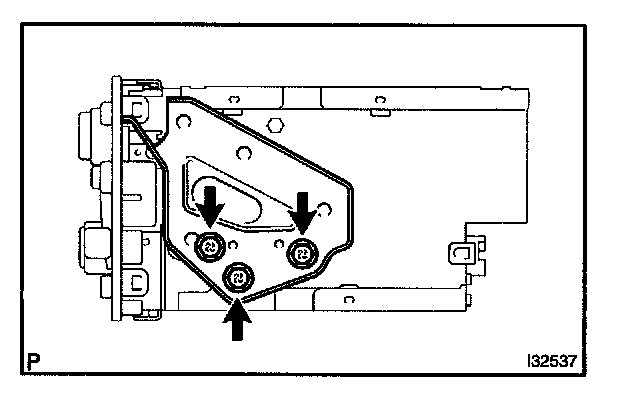

Remove the 3 screws and radio bracket No.1.




4. REMOVE RADIO BRACKET NO.2

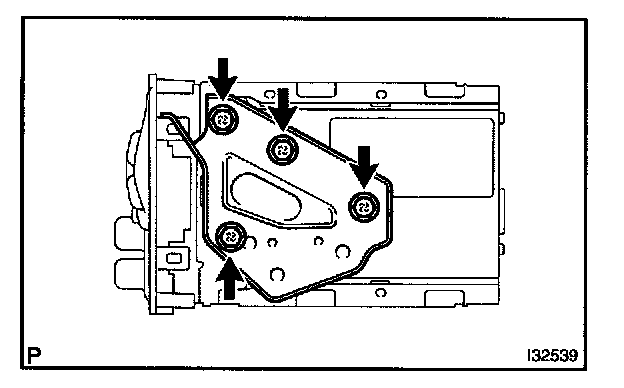

a. Remove the 4 screws and radio bracket No.2.

5. REMOVE RADIO RECEIVER ASSY
