Radio Wire Sub Assy

RADIO WIRE SUB ASSY

REPLACEMENT

1. REMOVE INSTRUMENT PANEL SUB-ASSY UPPER

HINT: Refer to the instructions for removal of the instrument panel sub-assy upper.

2. REMOVE RADIO WIRE SUB ASSY




a. Disconnect the connector.

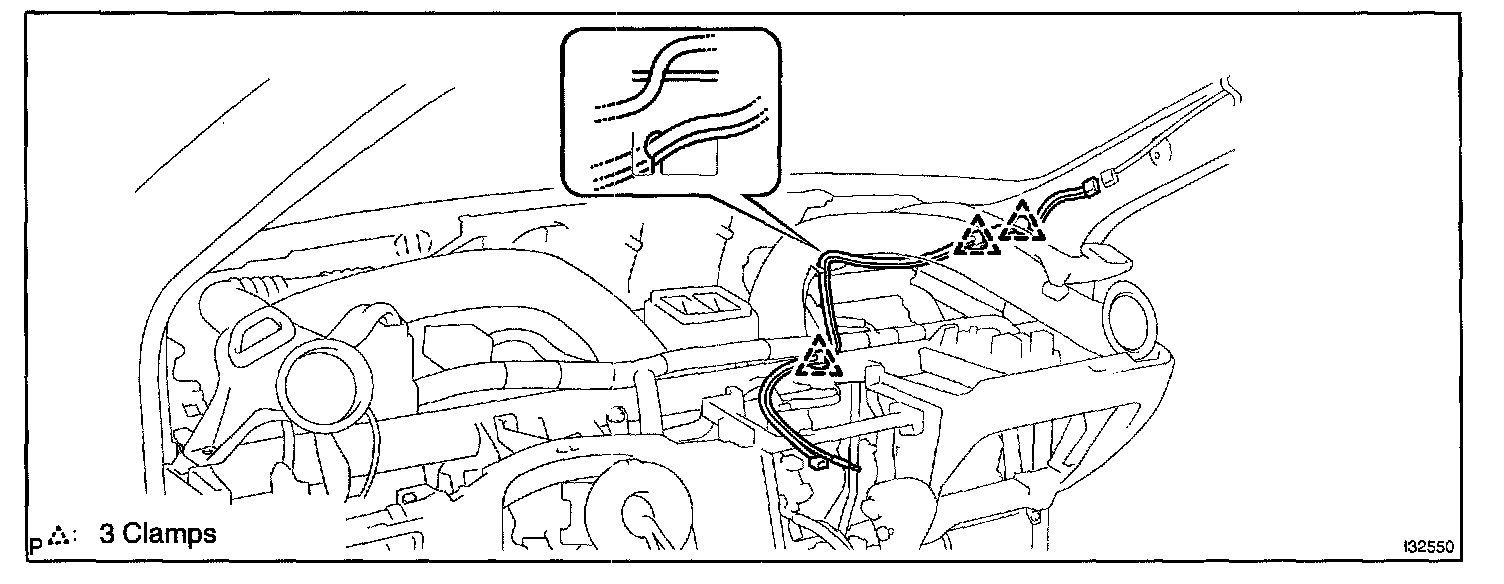

b. Remove the 3 clamps and radio wire sub assy.

3. INSTALL INSTRUMENT PANEL SUB-ASSY UPPER
