Home >> Toyota >> 2004 >> Matrix 4WD L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Locations

Trunk / Liftgate: Locations

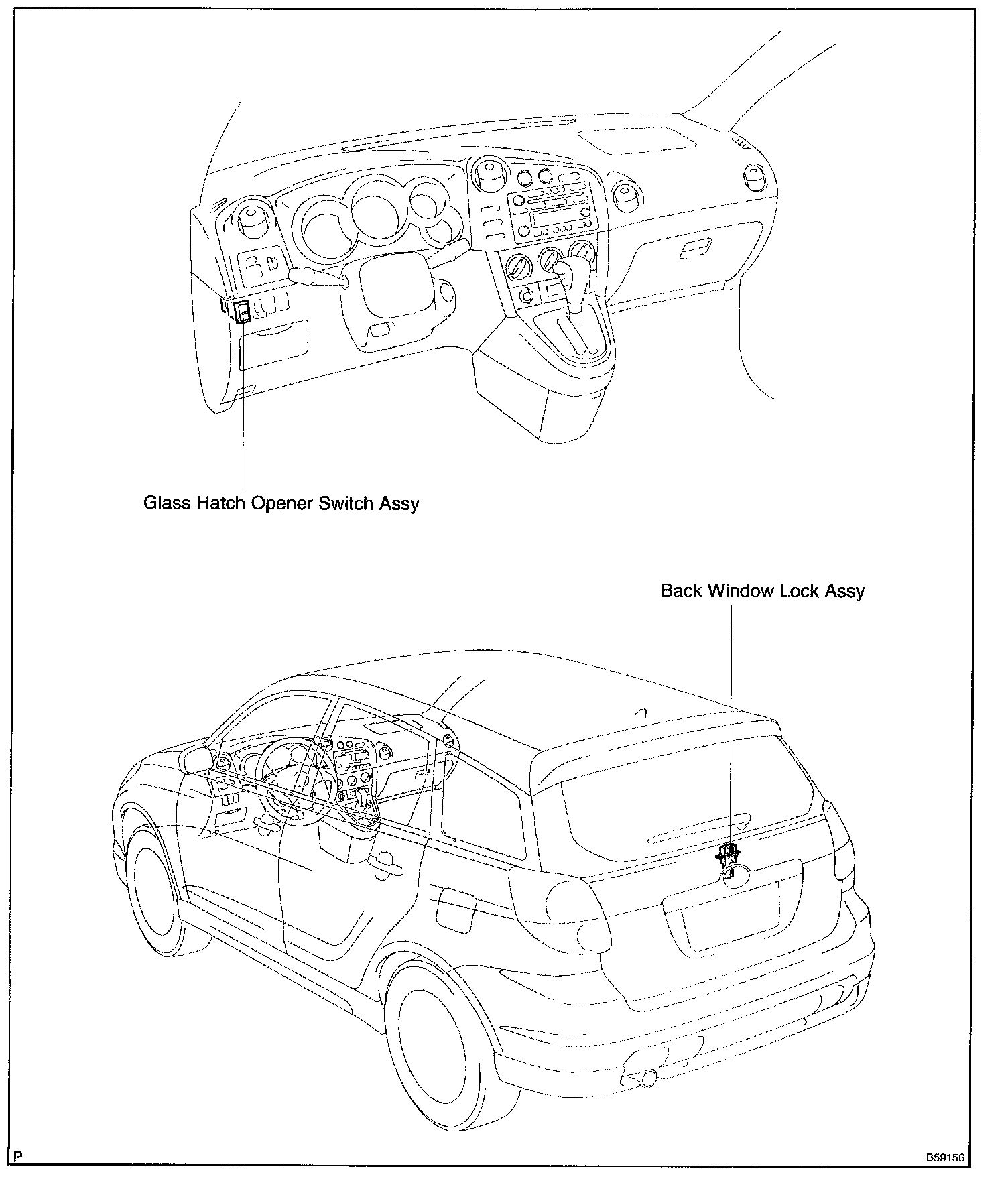

Glass Hatch Opener System Components:

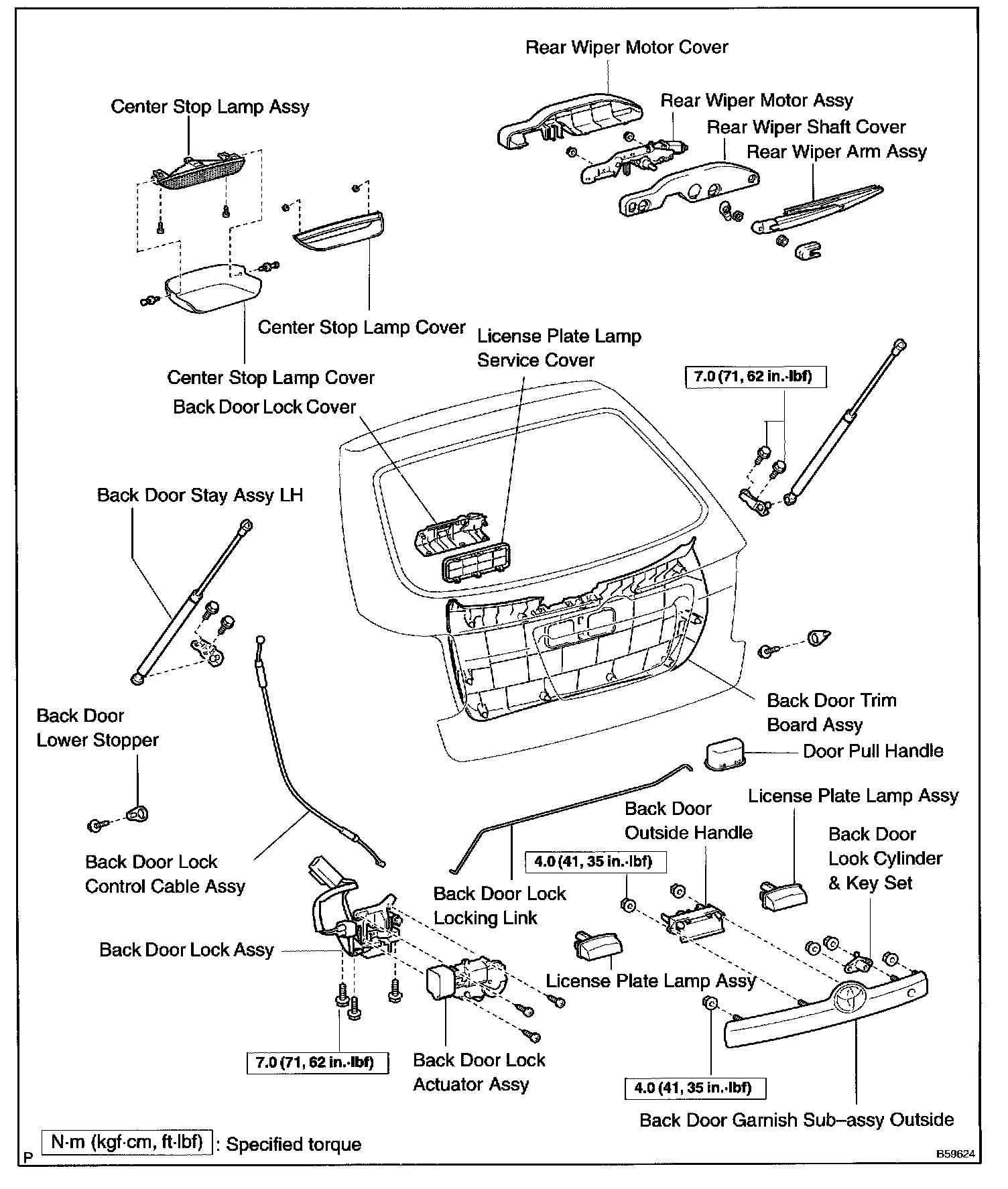

Back Door Components:
