Back Door Stay

BACK DOOR STAY ASSEMBLY LH

REPLACEMENT

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- A bolt without a torque specification is shown in the standard bolt chart.

1. REMOVE BACK DOOR STAY ASSEMBLY LH

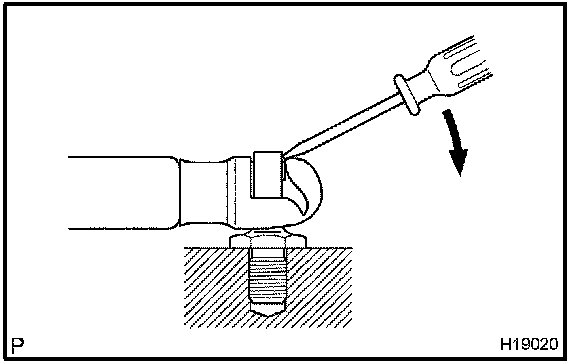

a. Using a screwdriver, remove the stay clip from the stay up side.

HINT: Tape the screwdriver tip before use.

b. Using a screwdriver, remove the stay clip from the stay lower side.

HINT: While supporting the back door with your hand, remove the back door stay.

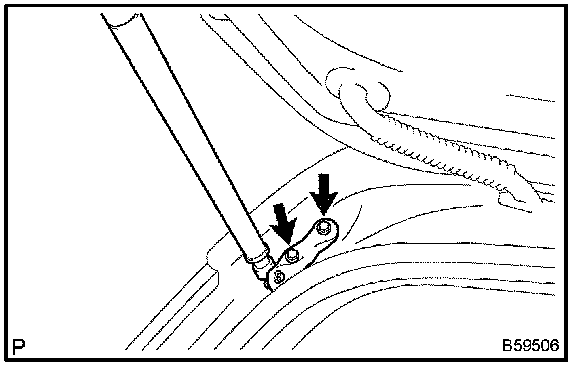

c. Remove the stay bracket and the 2 bolts.

2. INSTALL BACK DOOR STAY ASSEMBLY LH
a. Install the stay bracket with the 2 bolts.

Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)

b. Install the stay with the 2 stay clips.
