Outer Rear View Mirror Assy

INSPECTION

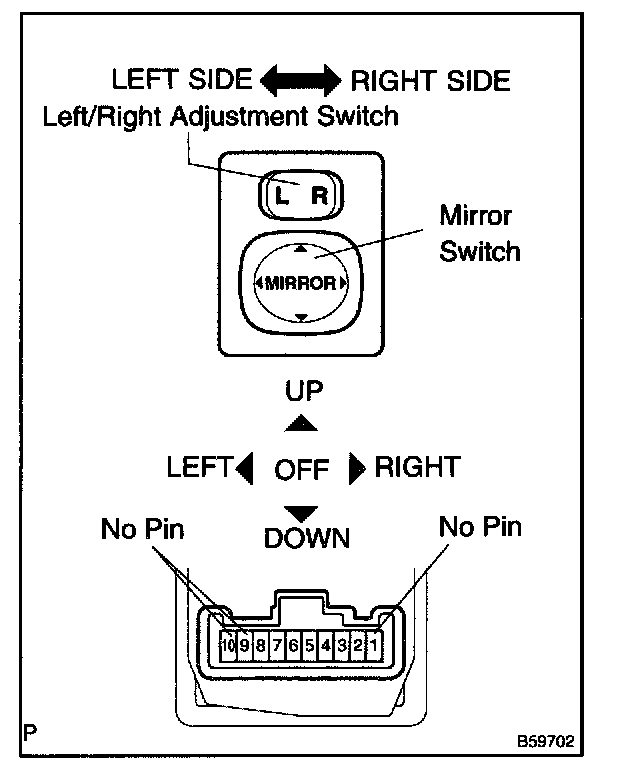

1. INSPECT OUTER MIRROR SWITCH ASSY







a. Left side for left/right adjustment switch:

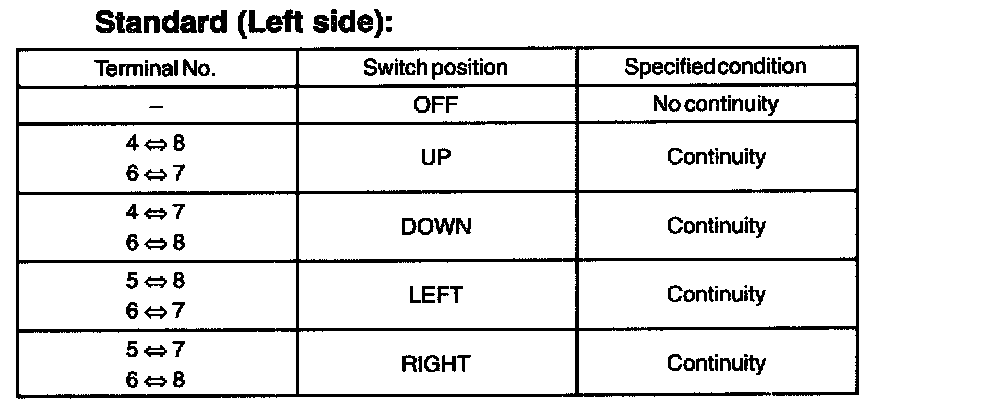

Inspect the mirror switch continuity.
If the result is not as specified, replace the switch assembly.




b. Right side for left/right adjustment switch:

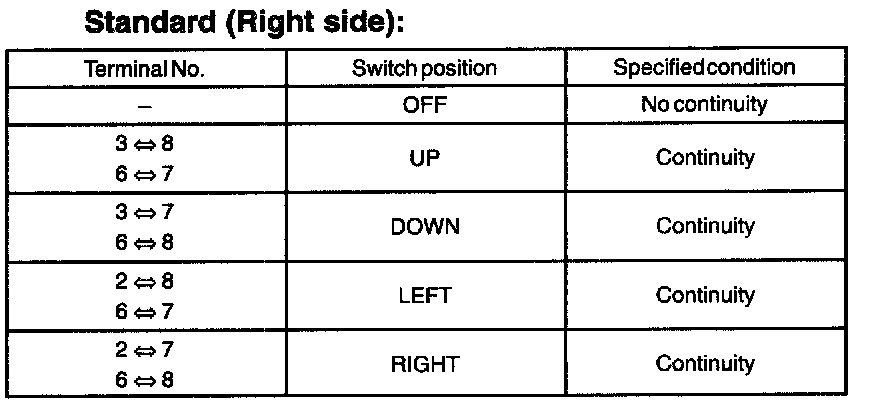

Inspect the mirror switch continuity.
If the result is not as specified, replace the switch assembly.







2. INSPECT OUTER REAR VIEW MIRROR ASSY LH
a. Disconnect the outer rear view mirror assembly LH connector.

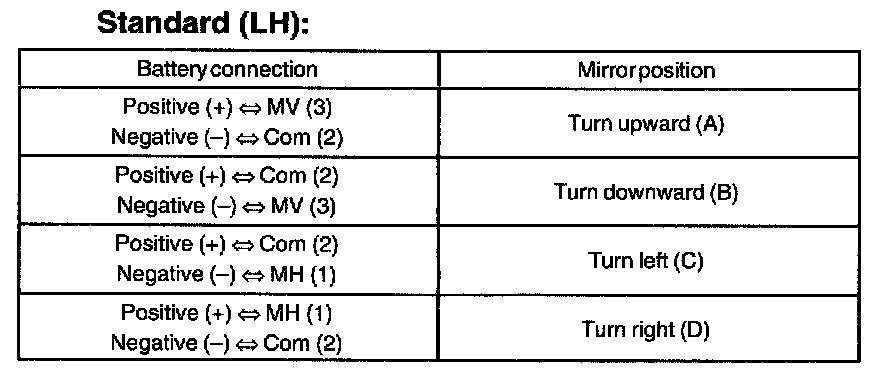

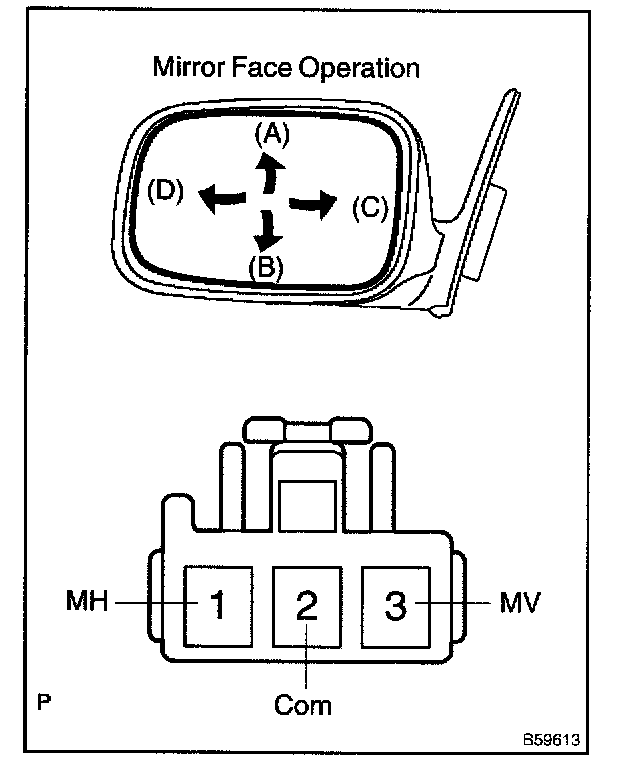

b. Apply battery voltage and inspect the mirror motor face operation, as shown in the table and illustration.
If the result is not as specified, replace the mirror assembly.







3. INSPECT OUTER REAR VIEW MIRROR ASSY RH
a. Disconnect the outer rear view mirror assembly RH connector.

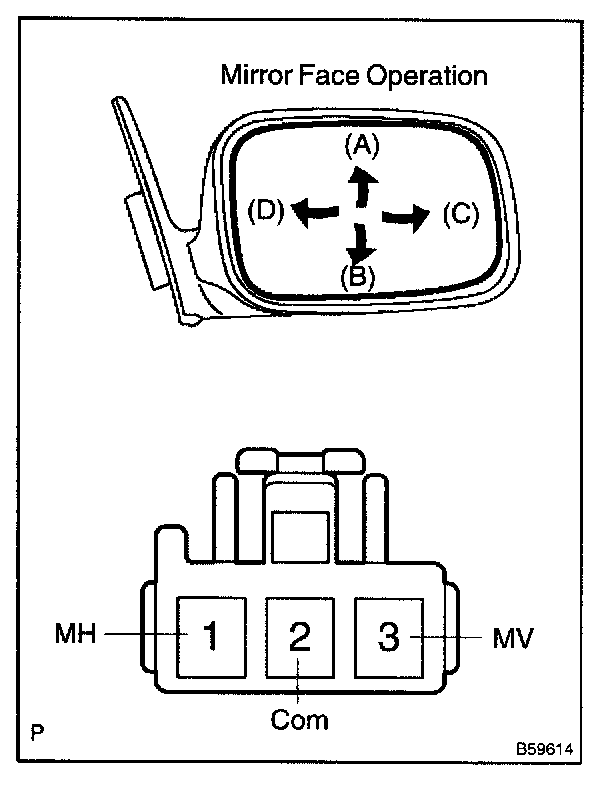

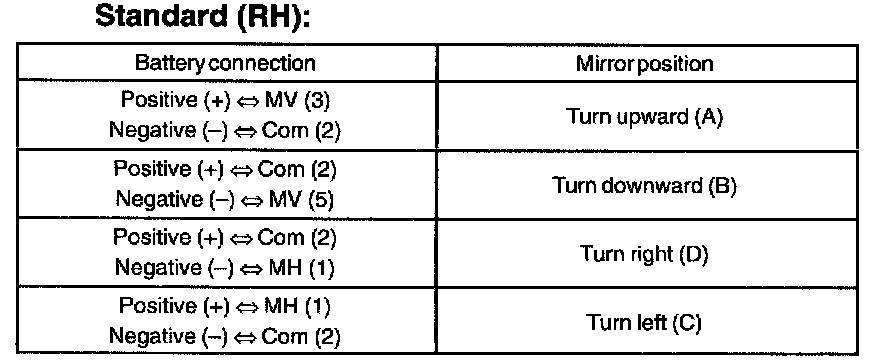

b. Apply battery voltage and inspect the mirror motor face operation, as shown in the table and illustration.
If the result is not as specified, replace the mirror assembly.
