Mud Flap: Service and Repair

SIDE MUDGUARD SUB-ASSEMBLY LH

REPLACEMENT

HINT: Use the same procedures for the RH side and LH side.




1. REMOVE SIDE MUDGUARD SUB-ASSEMBLY LH

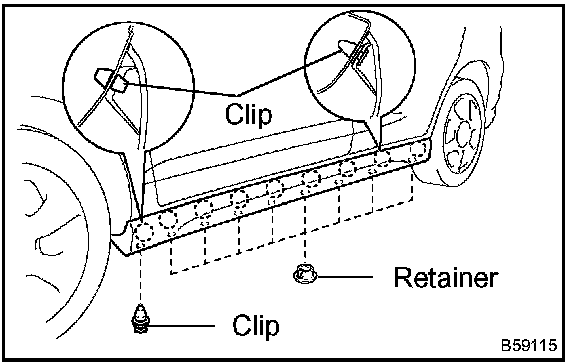

a. Using a clip remover, remove the 8 retainers and 9 clips.
b. Using a moulding remover, remove the mudguard.




2. INSTALL SIDE MUDGUARD SUB-ASSEMBLY LH

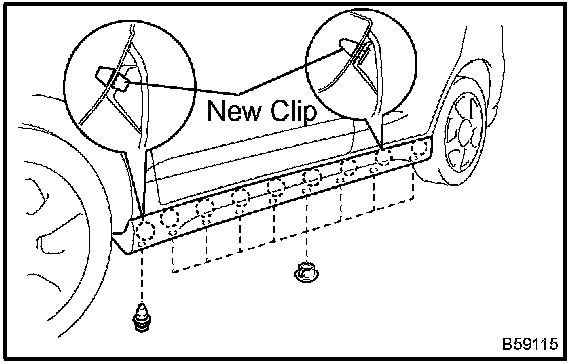

a. Install the mudguard with 9 new clips.
b. Install the 8 retainers to the mudguard.
