Parking Brake Cable Assembly No. 1
REPLACEMENT1. REMOVE CONSOLE BOX ASSY REAR
2. REMOVE PARKING BRAKE LEVER SUB-ASSY
3. REMOVE EXHAUST PIPE ASSY FRONT (2WD DRIVE TYPE)

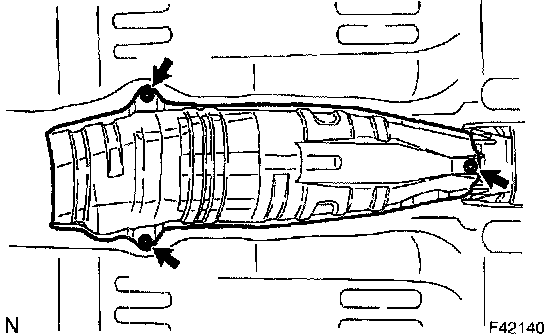

4. REMOVE FRONT FLOOR HEAT INSULATOR NO.1 (2WD DRIVE TYPE)
a. Remove the 3 nuts and front floor heat insulator No.1.

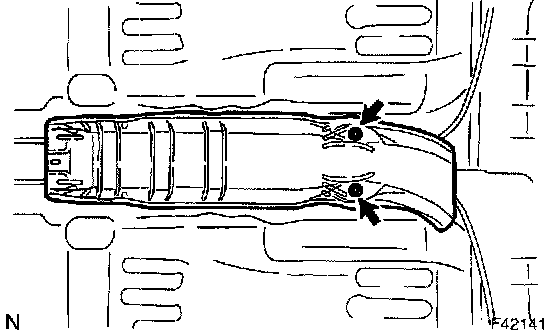

5. REMOVE FRONT FLOOR HEAT INSULATOR NO.2 (2WD DRIVE TYPE)
a. Remove the 2 nuts and front floor heat insulator No.2.
6. REMOVE PARKING BRAKE CABLE ASSY NO.1
a. Disconnect the parking brake cable assy No.1 from the equalizer and remove the parking brake cable assy No.1.
7. INSTALL PARKING BRAKE CABLE ASSY NO.1
a. Connect the parking brake cable assy No.1 to the equalizer and install the parking brake cable assy No.1.

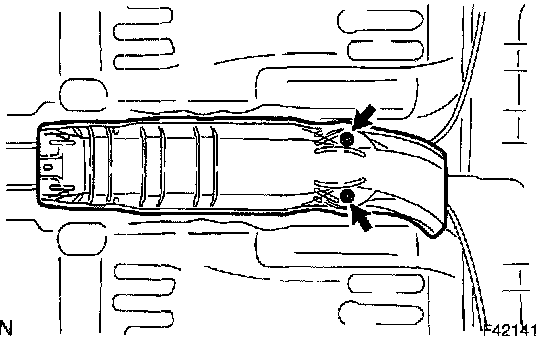

8. INSTALL FRONT FLOOR HEAT INSULATOR NO.2 (2WD DRIVE TYPE)
a. Install the front floor heat insulator No.2 with the 2 nuts.
Torque: 5.5 Nm (55 kgf-cm, 48 inch lbs.)

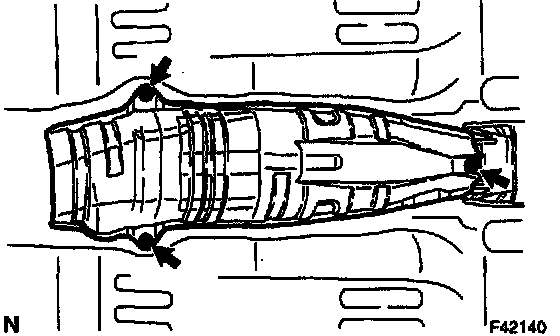

9. INSTALL FRONT FLOOR HEAT INSULATOR NO.1 (2WD DRIVE TYPE)
a. Install the front floor heat insulator No.1 with the 3 nuts.
Torque: 5.5 Nm (55 kgf-cm, 48 inch lbs.)
10. INSTALL EXHAUST PIPE ASSY FRONT (2WD DRIVE TYPE)
11. INSTALL PARKING BRAKE LEVER SUB-ASSY
12. INSPECT PARKING BRAKE LEVER TRAVEL
13. ADJUST PARKING BRAKE LEVER TRAVEL
14. INSTALL CONSOLE BOX ASSY REAR
