Parking Brake Cable Assembly No. 3
REPLACEMENTHINT: For parking brake cable assy No.2, perform the same procedure to the parking brake cable assy No.3.
1. REMOVE REAR WHEEL
2. REMOVE REAR BRAKE DRUM SUB-ASSY
3. REMOVE PARKING BRAKE SHOE STRUT SET LH
4. REMOVE FRONT BRAKE SHOE
SST 09718-00010
5. REMOVE REAR BRAKE SHOE
SST 09718-00010

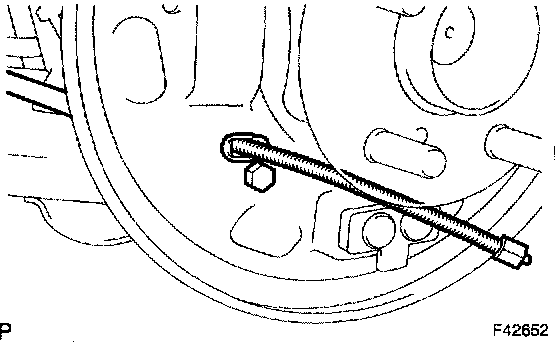

6. DISCONNECT PARKING BRAKE CABLE ASSY NO.3
a. Remove the bolt, and disconnect the parking brake cable assy No.3 from the backing plate.

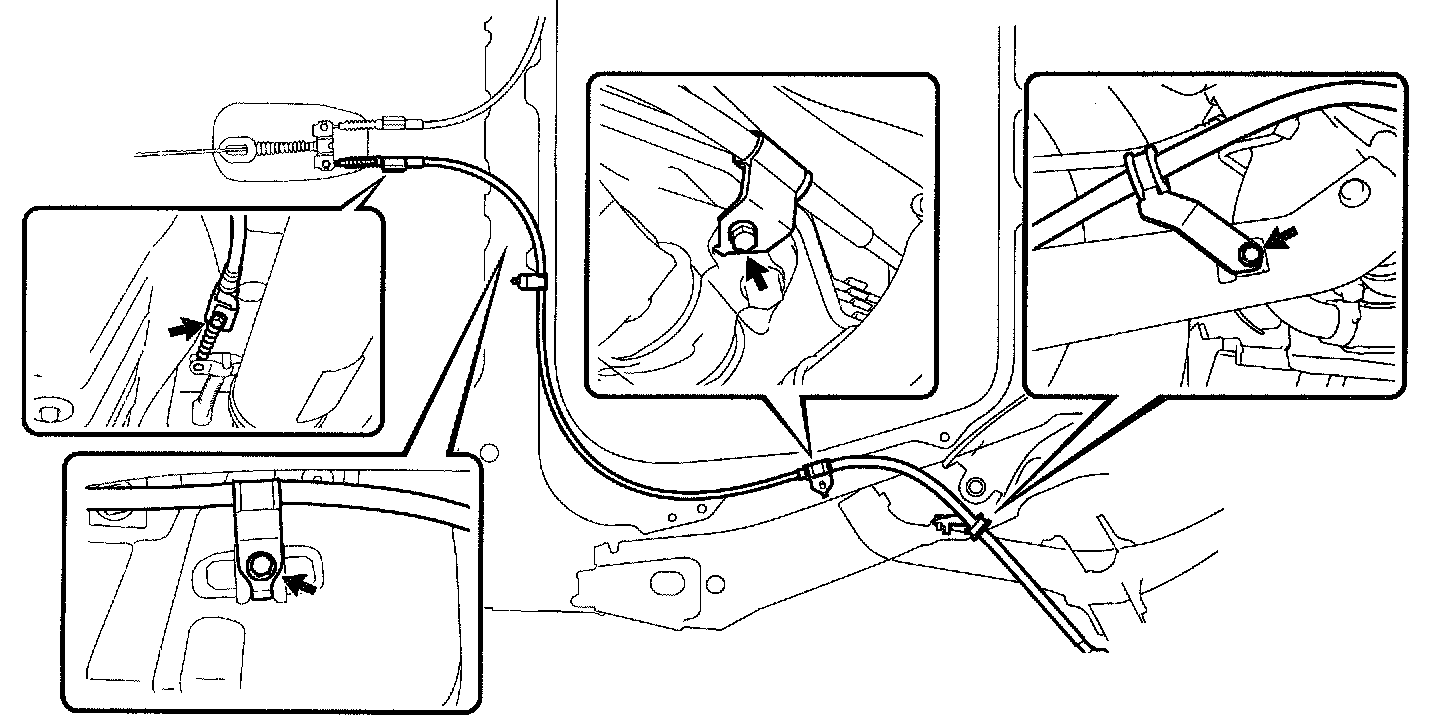

7. REMOVE PARKING BRAKE CABLE ASSY NO.3
a. Remove the 4 bolts, cable retainer and No.1 clamp from the body.
b. Disconnect the parking brake cable assy No.3 from the equalizer, and remove the parking brake cable assy No.3.
8. INSTALL PARKING BRAKE CABLE ASSY NO.3
a. Connect the parking brake cable assy No.3 to the equalizer.
b. Install the parking brake cable assy No.3 with the 4 bolts, and install the cable retainer and No.1 clamp.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
9. CONNECT PARKING BRAKE CABLE ASSY NO.3
a. Connect the parking brake cable assy No.3 to the backing plate with the bolt.
Torque: 7.8 Nm (80 kgf-cm, 69 inch lbs.)
10. APPLICATION HIGH TEMPERATURE GREASE
11. INSTALL REAR BRAKE SHOE
SST 09718-00010
12. INSTALL FRONT BRAKE SHOE
SST 09718-00010
13. INSTALL PARKING BRAKE SHOE STRUT SET LH
14. CHECK REAR DRUM BRAKE INSTALLATION
15. INSTALL REAR BRAKE DRUM SUB-ASSY
16. ADJUST REAR DRUM BRAKE SHOE CLEARANCE
17. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
18. INSPECT PARKING BRAKE LEVER TRAVEL
19. ADJUST PARKING BRAKE LEVER TRAVEL
20. CHECK EXHAUST LEAKAGE
