Cruise Main Indicator Light Circuit

CIRCUIT DESCRIPTION

When the cruise control main switch assy button is turned to ON, CRUISE main indicator light comes on.

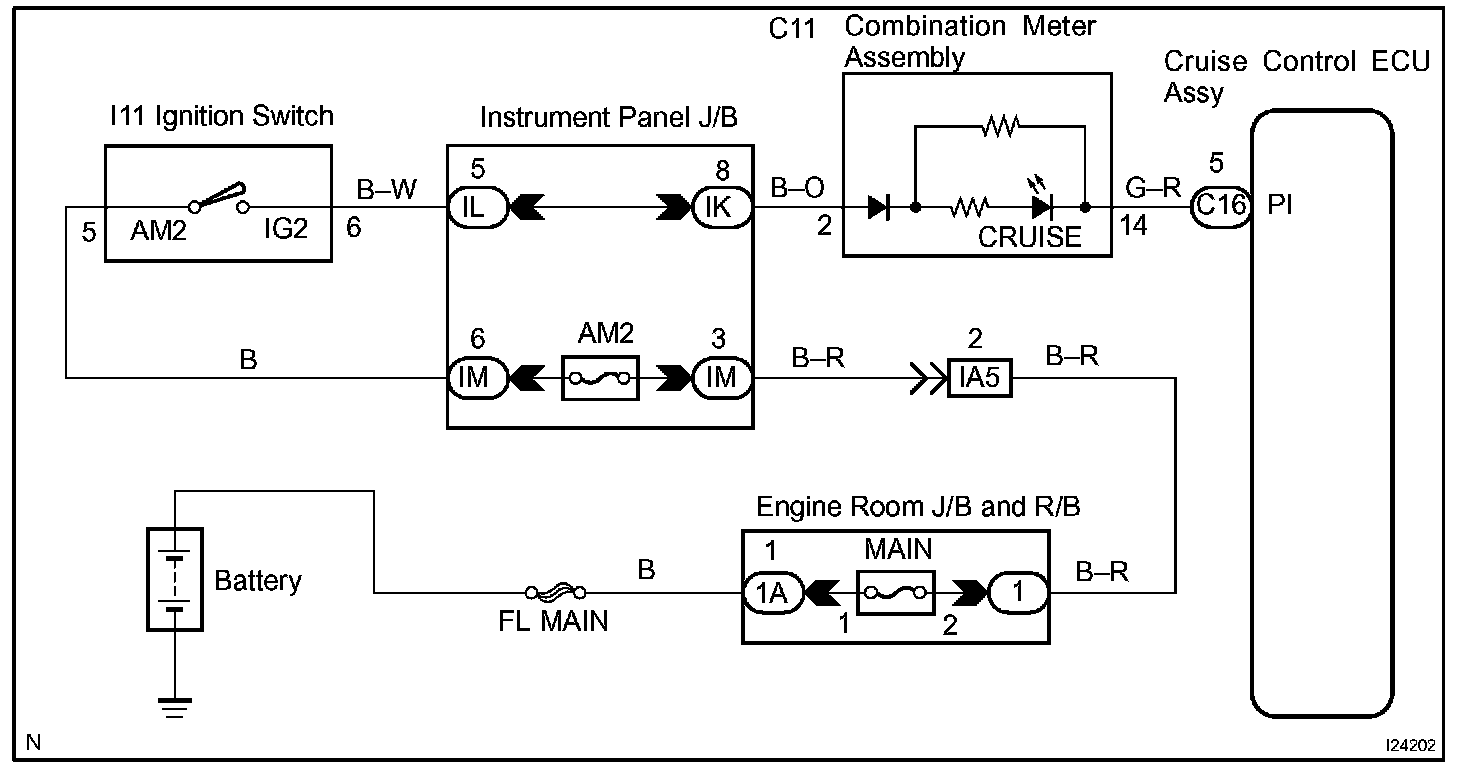

Wiring Diagram:

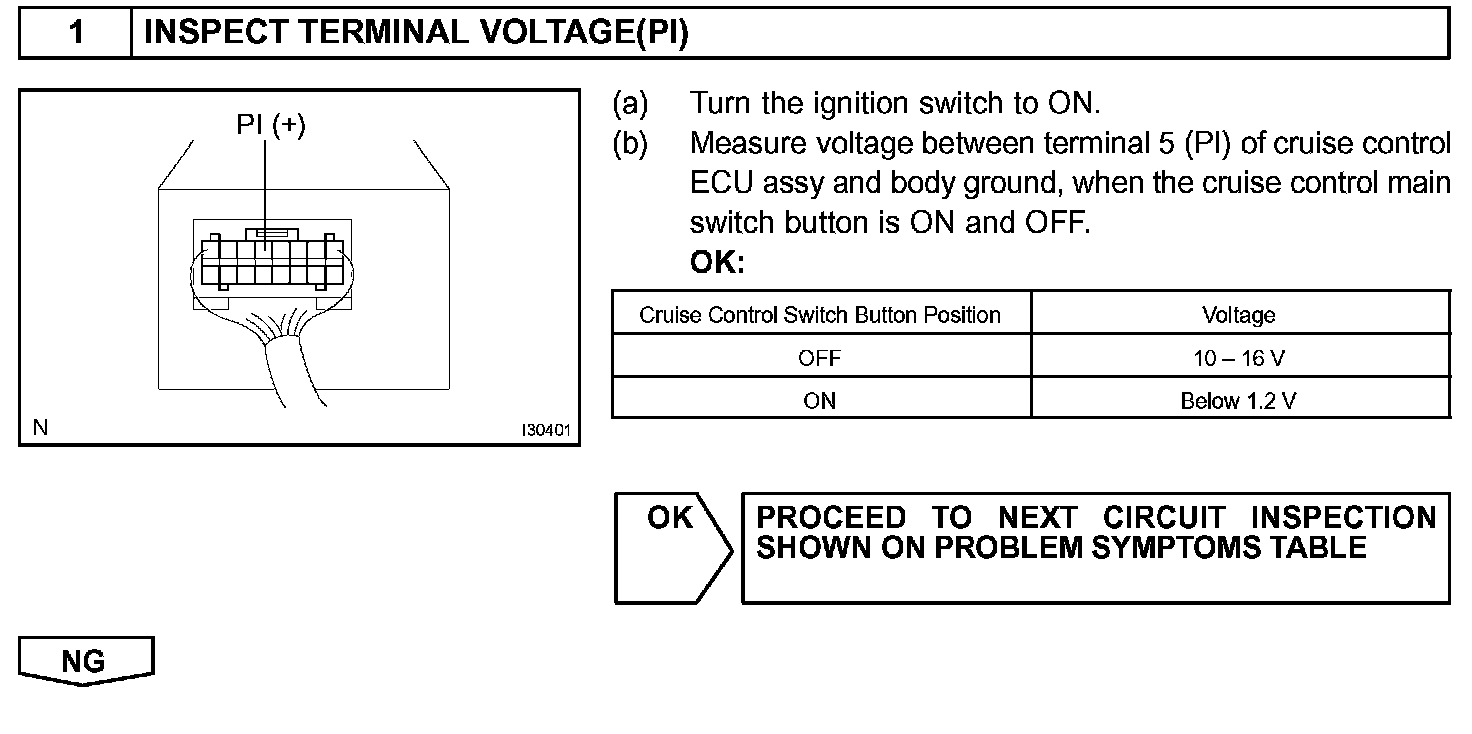

Step 1:

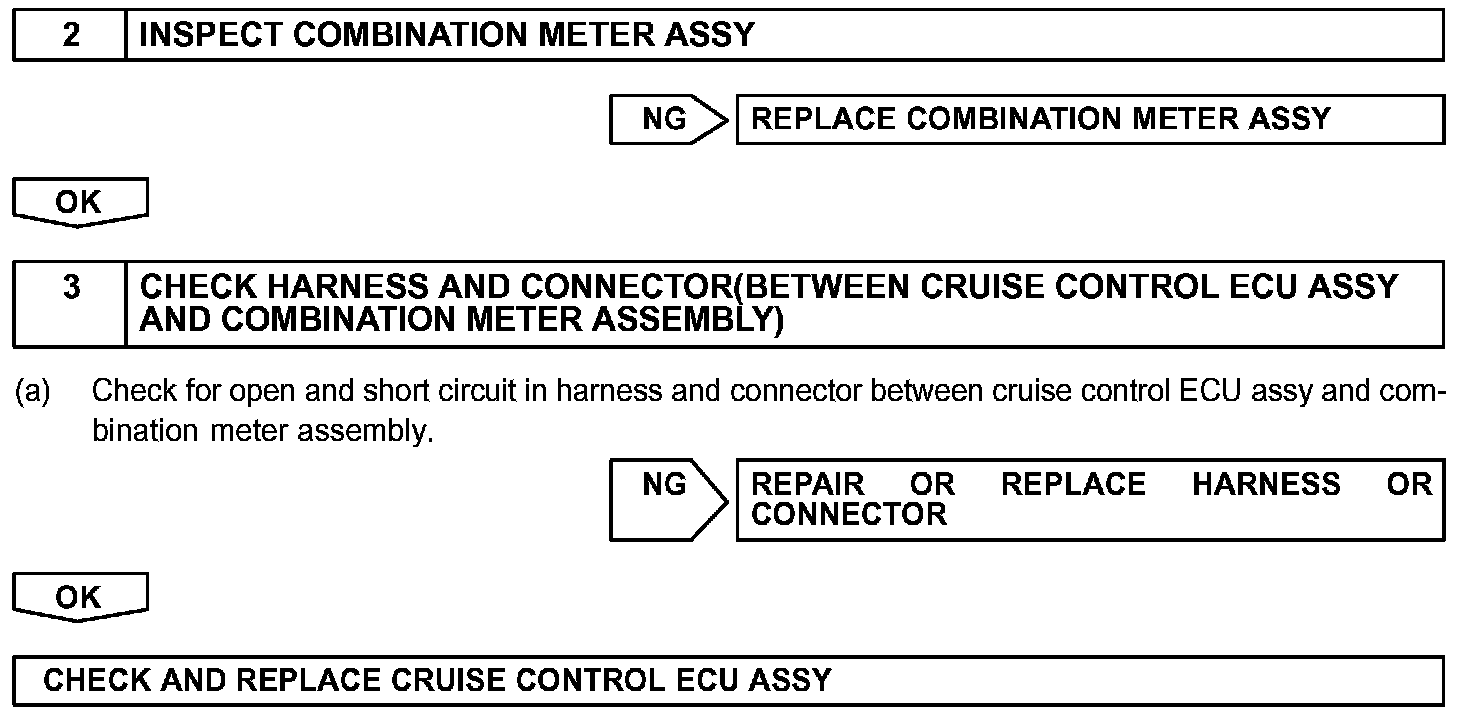

Step 2 - 3:




INSPECTION PROCEDURE
