Engine Control Module
Engine Control Module

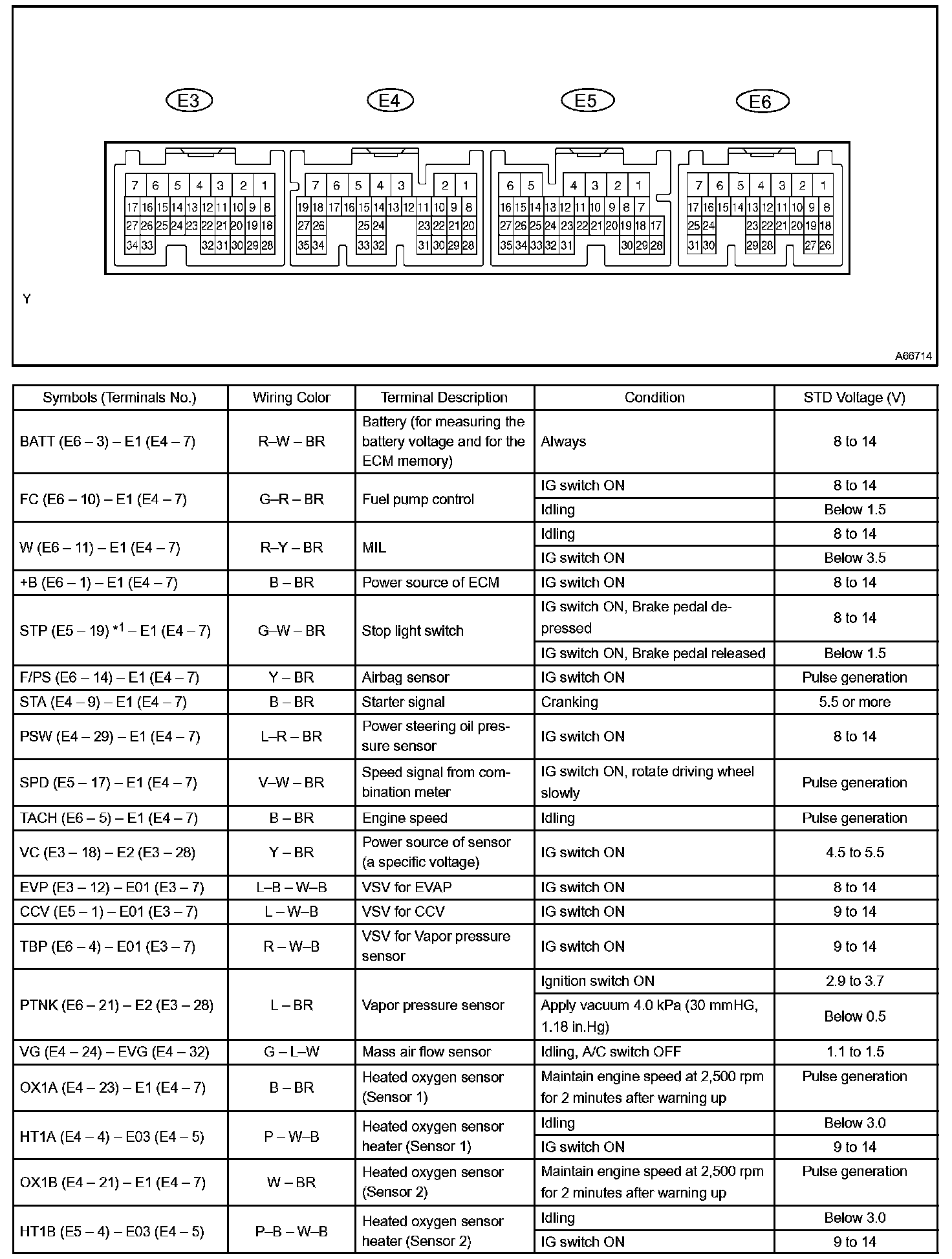

Terminals Of ECM/Pinouts Part 1:

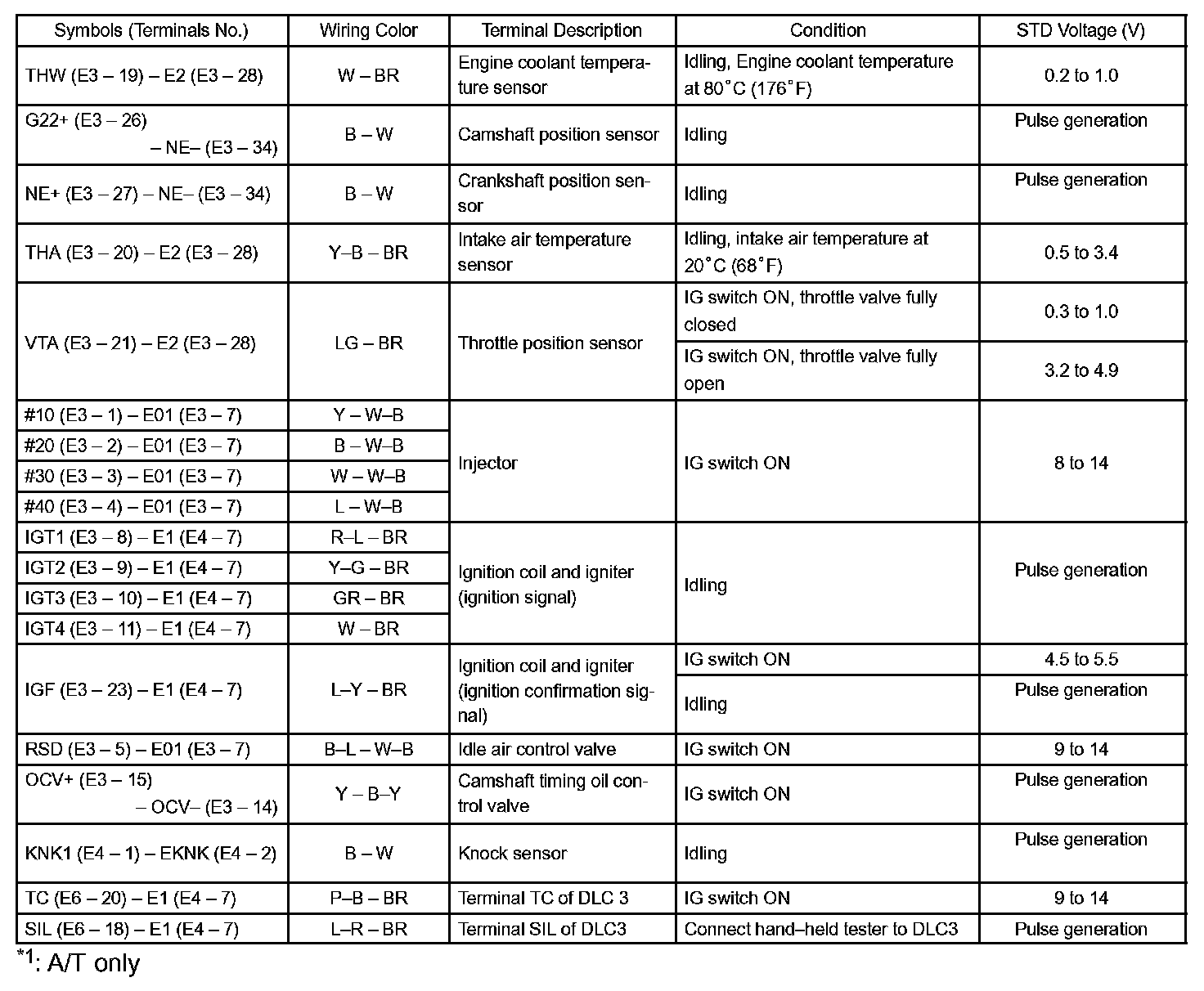

Terminals Of ECM/Pinouts Part 2:
